Equip 769331 patch-paneeli 1U

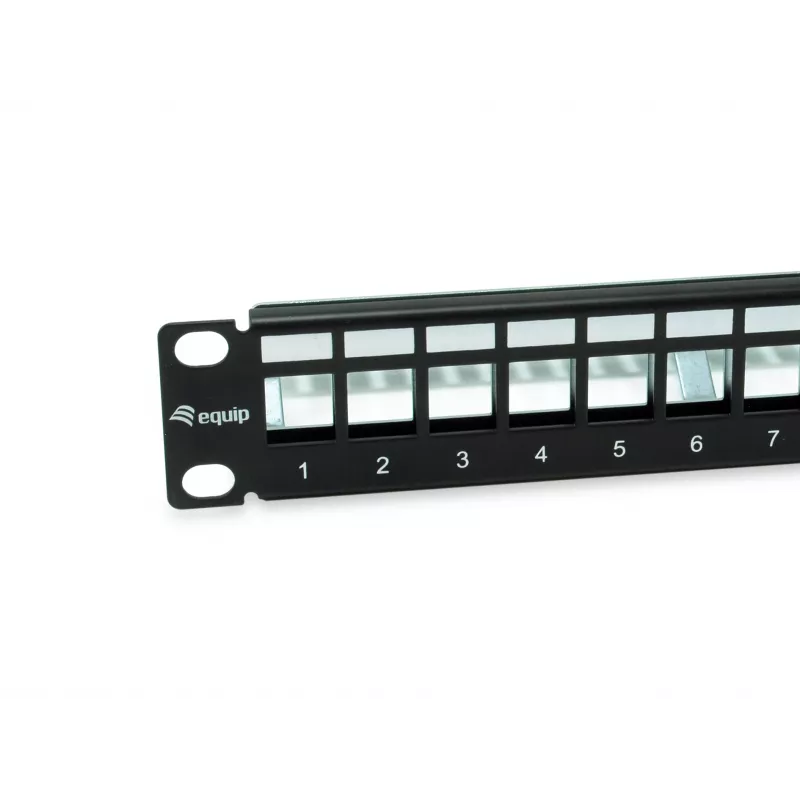

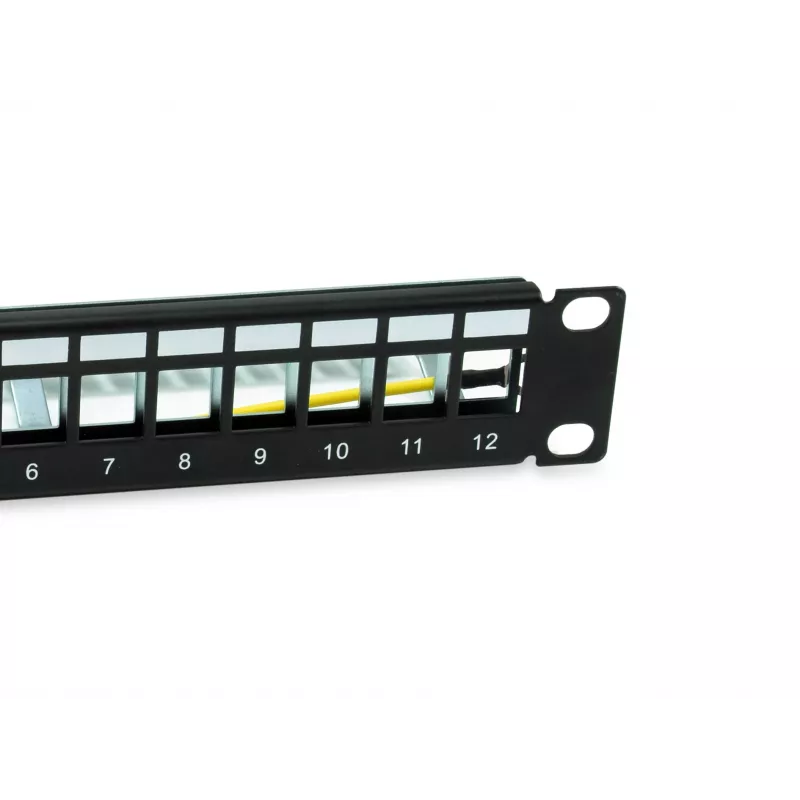

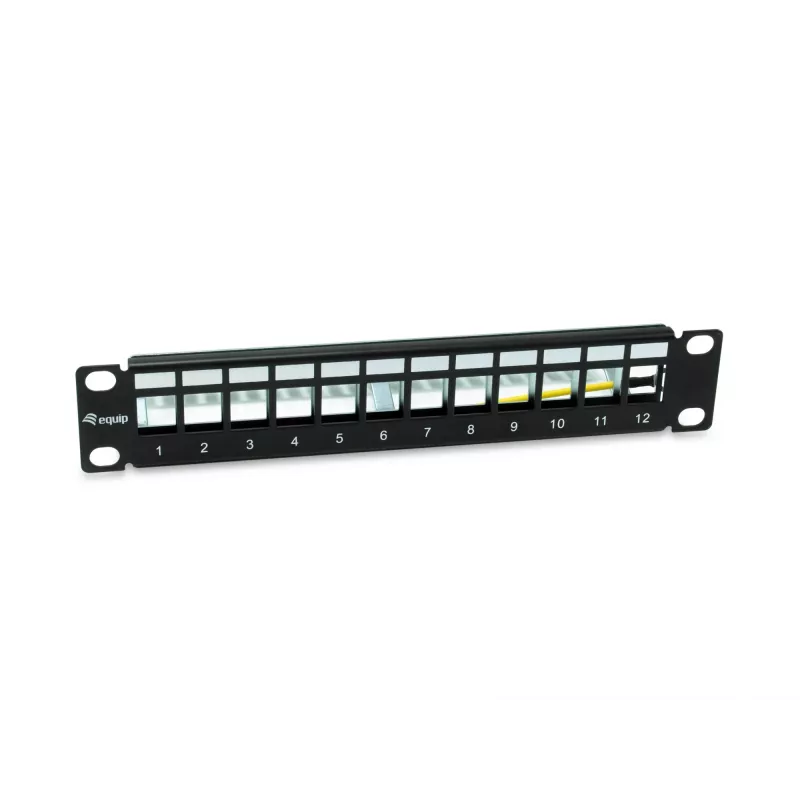

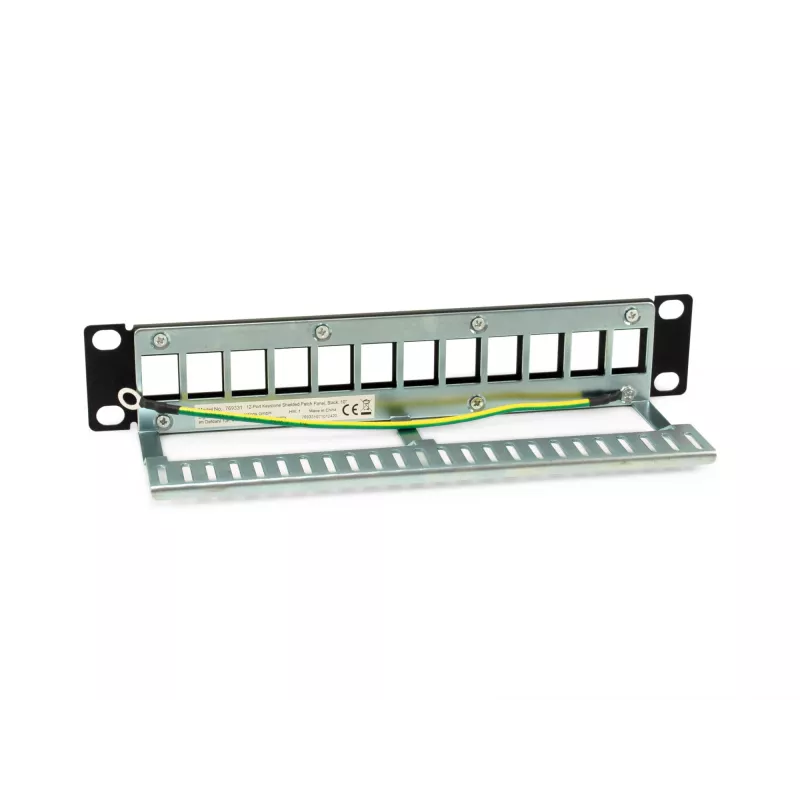

Equip 769331 Patch panel 1U is a rack-mounted network panel designed for organized cable termination in server rooms and telecommunication cabinets. This 1U patch panel features 12 Keystone ports in a durable metal housing with a black finish. Its compact dimensions (254 mm × 79.8 mm × 44.5 mm) and standardized mounting make it compatible with standard 19-inch racks. The panel is RoHS compliant and intended for professional structured cabling installations where reliable physical protection and tidy cable management are required.

Advantages

The Equip 769331 patch panel provides a space-efficient 1U footprint while accommodating 12 Keystone connectors for modular termination. Constructed from metal, the unit offers mechanical robustness and long-term durability. Its standardized dimensions and mounting holes ensure straightforward installation in standard racks. The black finish supports discrete integration into existing rack environments, and RoHS compliance confirms adherence to environmental and safety standards.

Suitable for

• Server rooms and data centres for organized horizontal cabling
• Telecommunication cabinets in offices and branch locations
• Small and medium enterprise network closets
• Structured cabling projects requiring Keystone modularity

Key specifications

• Product name: Patch panel 1U Equip 769331
• Brand: EQUIP
• Model / MPN: 769331
• EAN: 4015867237601
• Ports quantity: 12 (Keystone)
• Material: Metal
• Product colour: Black
• Dimensions (W × H × D): 254 mm × 79.8 mm × 44.5 mm
• Weight: 0.28 kg
• Compliance: RoHS

How to use

Mount the Equip 769331 patch panel into a standard 19-inch rack occupying 1U of space using appropriate rack screws. Install Keystone jacks into the panel's modular openings according to the required connector type (e.g., RJ45 Keystone modules). Terminate cabling on the Keystone modules following the relevant wiring scheme (T568A or T568B) and secure cables to minimize strain. Label each port as needed for easy identification and documentation in network records.

Recommendations

For consistent performance, use compatible Keystone jacks and follow industry cabling standards. Arrange patch cords and backbone cables to avoid excessive bending or strain. Regularly inspect mounting hardware and cable terminations during scheduled maintenance to ensure continued mechanical stability and signal integrity.
