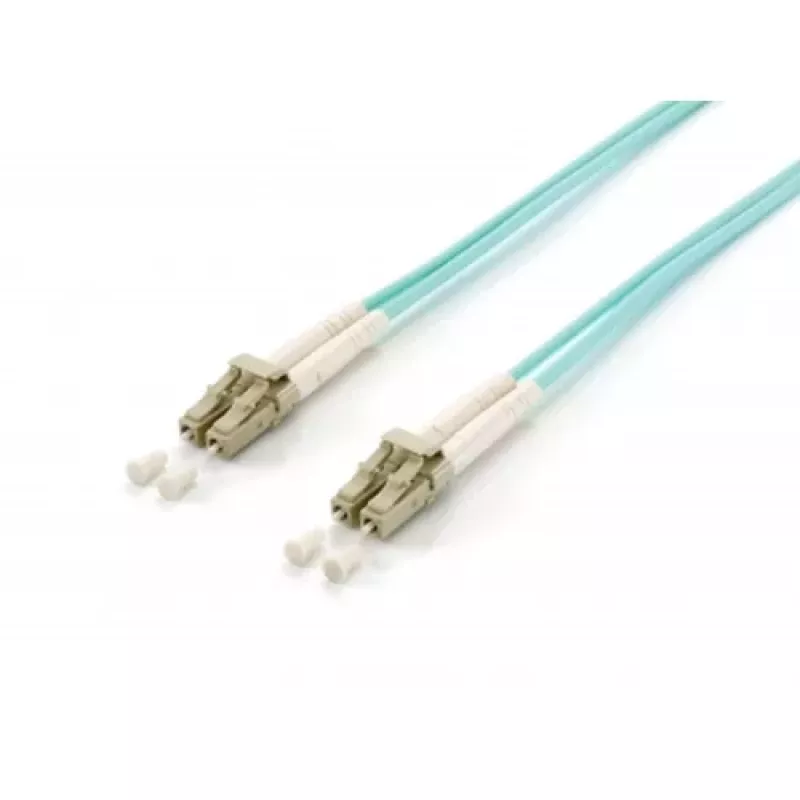

Equip LC/LC duplex OM3 monimuotokuitukaapeli 20m turkoosi LSOH

The Equip LC/LC Duplex OM3 Multimode Fiber Optic Patch Cable provides high-speed, reliable data transmission for demanding network environments. With a length of 20 meters and a turquoise LSOH jacket, this cable is ideal for data centers, server rooms, and enterprise networks requiring low smoke and zero halogen safety.

Advantages

Optimized for 10 Gb/s Ethernet over multimode fiber, the OM3 grade ensures high bandwidth and low attenuation. The LC duplex connectors offer secure, easy connections, while the LSOH jacket reduces toxic emissions in case of fire.

Suitable for

• Data center patching
• Server room connections
• Enterprise network infrastructure
• High-speed data transmission up to 10 Gb/s

Key specifications

• Cable type: Fiber optic patch cable
• Fiber type: Multimode OM3
• Core/cladding diameter: 50/125 µm
• Connectors: LC duplex to LC duplex
• Cable length: 20 m
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Jacket color: Turquoise
• Number of fibers: 2 (duplex)
• Insertion loss (max): < 0.3 dB per connector pair
• Return loss (min): > 20 dB
• Attenuation at 850 nm: 2.5 dB/km
• Attenuation at 1300 nm: 0.8 dB/km
• Bandwidth at 850 nm (OFL): 1500 MHz·km
• Bandwidth at 1300 nm (OFL): 500 MHz·km
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, REACH
• Standards: TIA/EIA-568-C.3, IEC 60793-2-10 Type A1a.2

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is compatible with standard LC duplex interfaces.
