EXERTIS CONNECT Cat. 6A STP 10 tuuman 0,5U 12-porttinen patchpanel, musta 257312

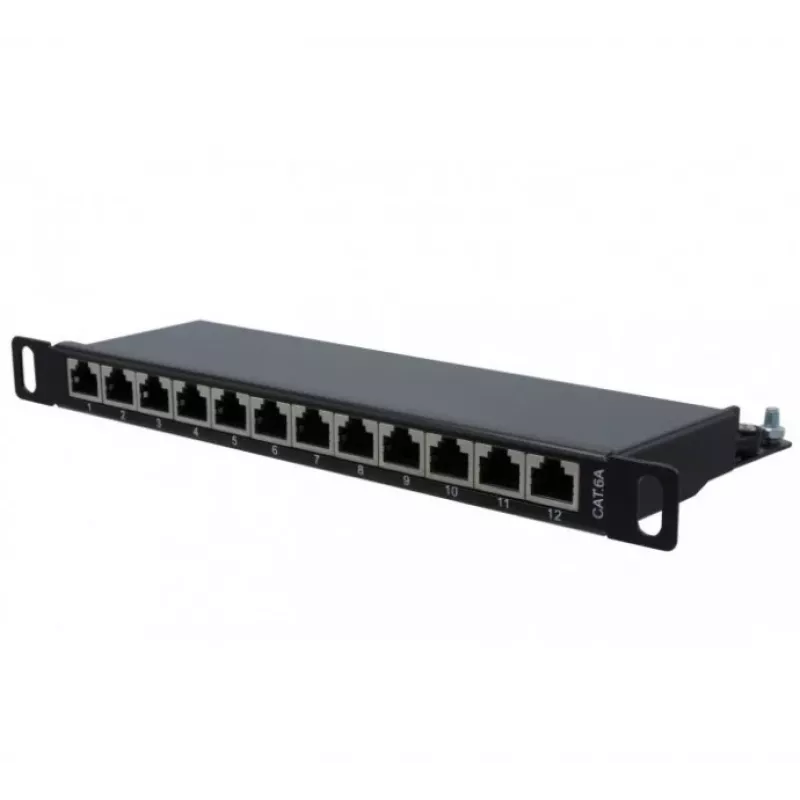

This 10-inch patch panel delivers Cat. 6A performance in a compact 0.5U footprint, providing 12 shielded RJ45 ports with gold-plated contacts and integrated grounding for reliable high-speed connections.

Overview

The EXERTIS CONNECT 257312 is a 12-port shielded patch panel designed for 10-inch racks. It supports Cat. 6A (Class EA) networks and features STP shielding to protect against electromagnetic interference. The panel is built with a powder-coated SPCC steel housing in black (RAL 9005) and includes an integrated grounding connection for proper installation.

What stands out

• Cat. 6A performance with support for PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt)
• Shielded RJ45 ports with 50µm gold-plated contacts for durability (750+ mating cycles)
• Compact 0.5U design saves rack space in 10-inch installations
• Tool-free LSA (Krone) termination supports AWG 22-26 solid and stranded cables
• Complies with ISO/IEC 11801, EN 50173, and TIA/EIA 568-C.2 standards

Technical details

• Network standard: Cat. 6A (Class EA)
• Shielding: STP (Shielded Twisted Pair)
• Rack size: 10 inch, 0.5U height
• Ports: 12 x RJ45, shielded
• Termination: LSA (Krone) / IDC, TIA/EIA 568A & 568B
• Housing: SPCC steel, powder-coated, black (RAL 9005)
• Contact plating: Gold, 50µm
• Insulation resistance: > 500 MΩ
• Dielectric strength: 1000 VDC (RMS, 60 Hz, 1 min)
• Operating temperature: -20°C to +70°C

Our verdict

A robust and space-efficient patch panel for 10-inch racks, delivering Cat. 6A performance with full PoE++ support and reliable shielding for demanding network environments.
