EXSYS EX-1448MM 2-porttinen USB 3.2 Gen1 jatko multimoodi-kuituvalokaapelilla jopa 300 m

USB connections are limited to a few meters, which stops you from placing devices where they are needed. The EXSYS EX-1448MM breaks that barrier by extending USB 3.2 Gen1 signals over multi-mode fiber optic cable up to 300 meters, delivering 5 Gbps throughput to two USB Type-A ports at the remote end.

Who is it for

This extender suits industrial workstations, medical carts, digital signage, or any setup where a USB device must operate far from the host computer. It is also ideal for electrically noisy environments, because fiber optic cabling is immune to electromagnetic interference.

Main features

• Extends USB 3.2 Gen1 (5 Gbps) up to 300 m over OM2/OM3/OM4 multi-mode fiber

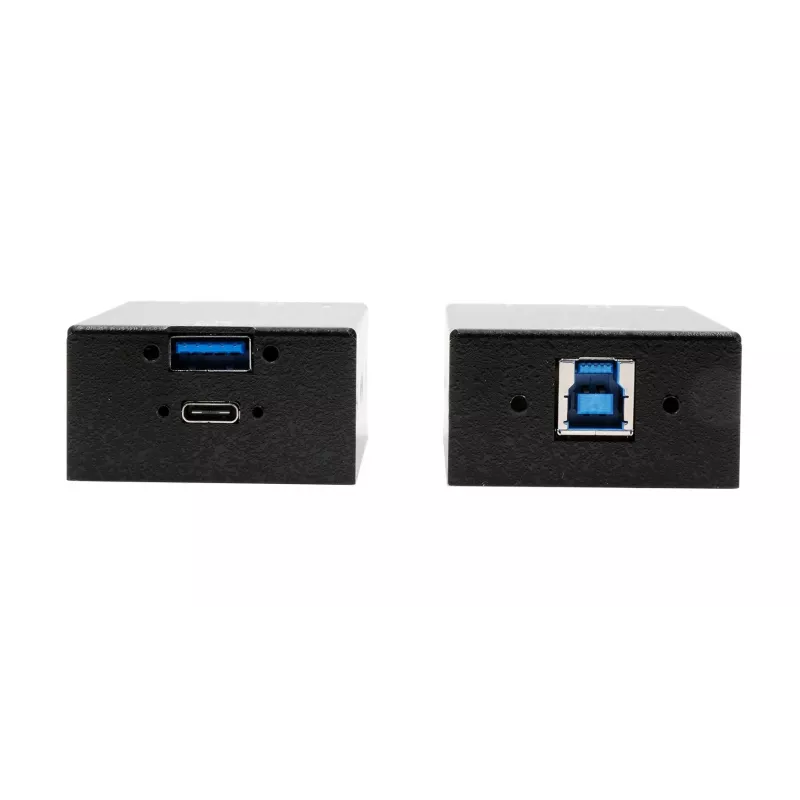

• Two USB Type-A device ports at the remote unit
• Host connection via USB Type-B

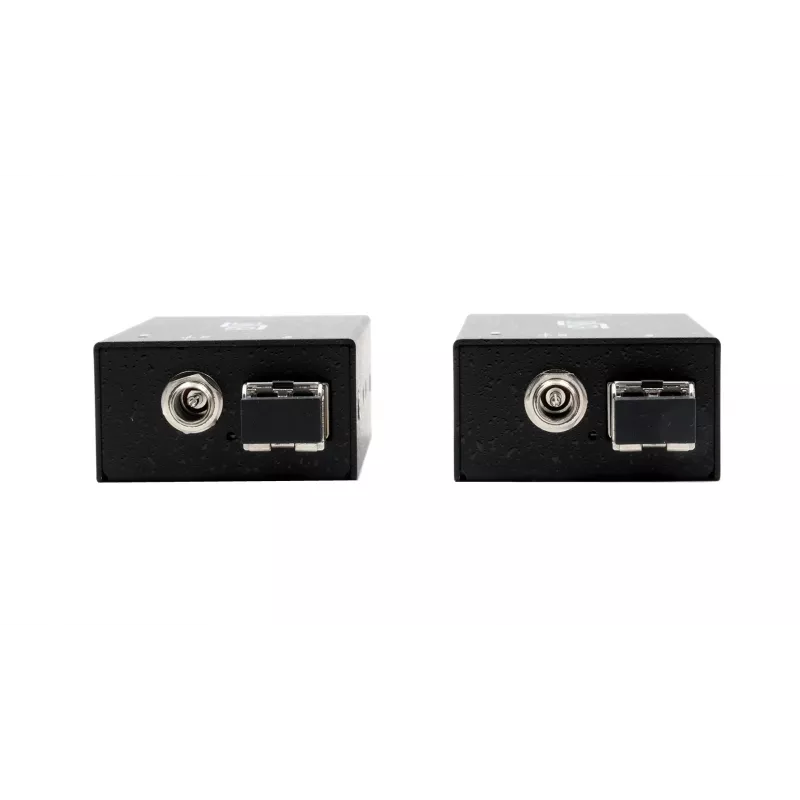

• Fiber interface: 2 x LC Duplex Multi-Mode, 850 nm wavelength
• Plug & Play, hot-swappable, no driver installation required
• Metal housing with LED indicators for power and link
• ESD protection: ±8kV air, ±4kV contact

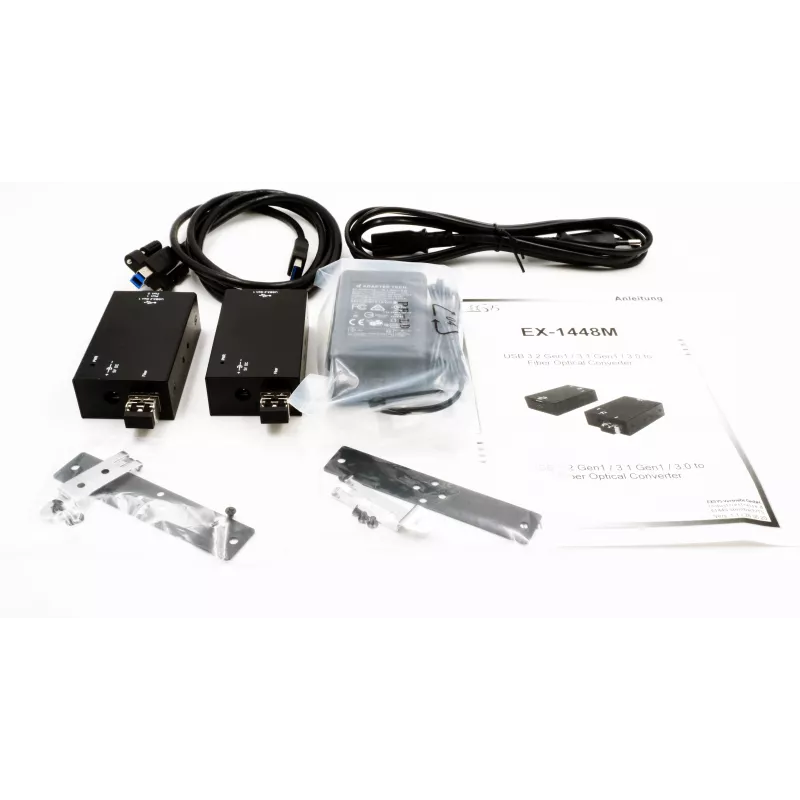

• Includes two external 5V/3A power adapters and a 1.8 m USB Type-B to Type-A cable

Specifications

• USB standard: USB 3.2 Gen1 (compatible with USB 3.0 / 3.1 Gen1)
• Max data transfer rate: 5 Gbps
• Number of USB device ports: 2 x USB Type-A
• Host connection: 1 x USB Type-B
• Extension technology: Fiber optic
• Max extension distance: 300 meters
• Fiber optic interface: 2 x LC Duplex Multi-Mode
• Supported fiber type: OM2 / OM3 / OM4 Multi-Mode
• Wavelength: 850 nm
• Power supply: 2 x External DC 5V/3A Adapters (included)
• Operating system compatibility: Windows, macOS, Linux
• Plug & Play: Yes
• Hot-swappable: Yes
• Housing material: Metal
• LED indicators: Power, Link
• ESD protection: ±8kV (Air), ±4kV (Contact)
• Operating temperature: 0°C to 50°C

Tips

For best results, use OM3 or OM4 fiber for the full 300 m distance. OM2 may reduce the maximum reach. The two power adapters must be connected to both the local and remote units.
