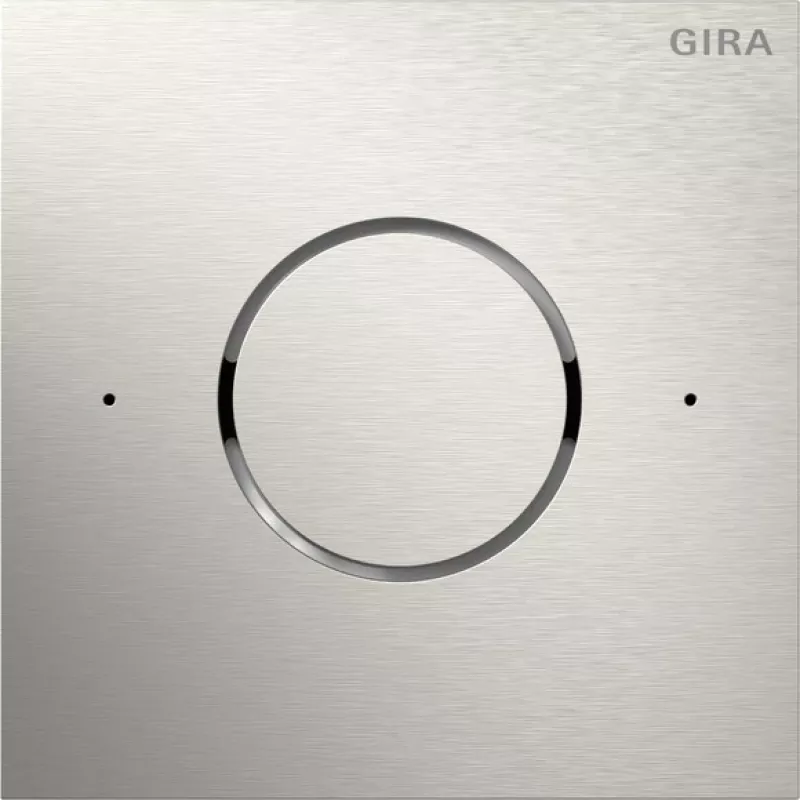

GIRA 5592920 puhemoduuli IP System 106 ruostumaton teräs

Full-duplex hands-free communication with echo cancellation and noise suppression makes this speech module a standout for Gira System 106 IP door communication. It integrates microphone and loudspeaker in a single 1-gang stainless steel module, powered by PoE or 24 V DC.

Overview

The GIRA 5592920 Speech Module is designed for Gira System 106 IP door communication systems. It provides clear audio for entrance stations, featuring full-duplex communication, echo cancellation, and noise suppression. The module connects via Ethernet (RJ45) and supports Power over Ethernet (PoE IEEE 802.3af Class 3) or external 24 V DC supply. Configuration is done through a web interface using SIP protocol. The brushed stainless steel front is suitable for flush-mounted or surface-mounted installation in System 106 frames, with an IP54 protection class when installed in an appropriate frame. Operating temperature range: -25 °C to +70 °C.

What stands out

• Full-duplex hands-free communication with echo cancellation and noise suppression
• Integrated microphone and loudspeaker in a single 1-gang module
• Power over Ethernet (PoE) or 24 V DC supply
• Web-based configuration using SIP protocol
• Brushed stainless steel finish for durability
• IP54 protection when installed in a suitable System 106 frame

Technical details

• Product Type: Speech Module
• System Compatibility: Gira System 106 IP
• Material: Stainless Steel (V2A), Brushed
• Connectivity: IP (Ethernet, RJ45)
• Power Supply: PoE IEEE 802.3af Class 3 or 24 V DC external
• Power Consumption (PoE): Max. 4.5 W
• Current Consumption (24V DC): Max. 100 mA
• Audio: Full-duplex, echo cancellation, noise suppression
• Integrated Components: Microphone, Loudspeaker
• Installation: Flush-mounted or surface-mounted in System 106 frames
• Protection Class: IP54 (with appropriate frame)
• Operating Temperature: -25 °C to +70 °C
• Configuration: Web interface
• Communication Protocol: SIP
• Module Size: 1-gang
• Compatibility: Gira HomeServer, Gira X1, Gira G1, Gira Control Clients, Gira TKS-IP gateway, Gira DCS-IP gateway

Our verdict

A robust, feature-rich speech module for Gira System 106 IP door stations, offering clear audio and flexible power options in a sleek stainless steel design.
