GLOVII 20x makro-objektiivi GuideIR E1/E1+/E2/E2+ sarjan lämpökameroille - tarkkuuselektroniikka diagnostiikka

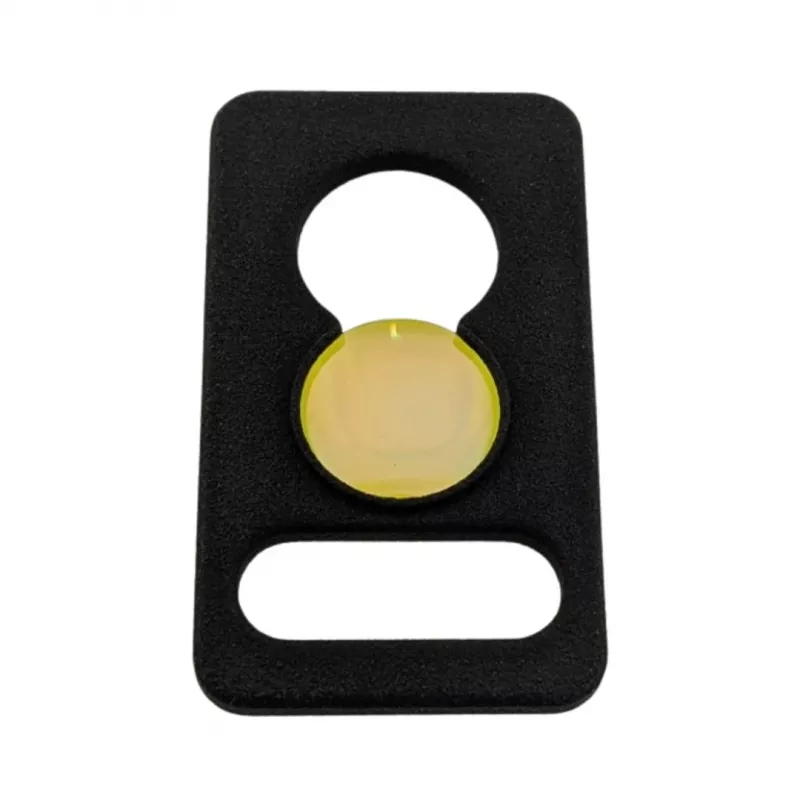

The GLOVII 20x Macro Lens is a high-magnification optical accessory specifically designed for GuideIR E1, E1+, E2, and E2+ series thermal cameras. This lens enables precise thermal diagnostics of micro-electronics, PCBs, and components, allowing for detailed fault isolation and analysis at the micrometer level.

Advantages

With a 20x magnification and a minimum working distance of approximately 10 mm, this macro lens provides exceptional close-up thermal imaging capabilities. The anti-reflective coated germanium or chalcogenide glass optics ensure high transmission in the thermal wavelength range, while the durable aluminum alloy housing protects the lens in demanding environments. The threaded mounting interface is specifically designed for GuideIR E-series cameras, ensuring a secure and stable connection.

Suitable for

• Micro-electronics inspection and PCB diagnostics
• Component-level thermal analysis
• Fault isolation in electronic assemblies
• Quality control and failure analysis in manufacturing

Key specifications

• Magnification: 20x
• Compatibility: GuideIR E1, E1+, E2, E2+ Series Thermal Cameras
• Lens Type: Macro Lens
• Optical Material: Germanium (Ge) or Chalcogenide Glass
• Housing Material: Aluminum Alloy
• Mounting Interface: Threaded (GuideIR E-series specific)
• Minimum Working Distance: Approx. 10 mm
• Smallest Measurable Spot Size: Approx. 25 µm
• Optical Coating: Anti-reflective (AR) coating for thermal wavelengths
• Color: Black
• Included Accessories: Protective carrying case, Front lens cap, Rear lens cap

Recommendations

For optimal results, use this macro lens with GuideIR E-series thermal cameras in controlled environments. Ensure the lens is securely attached and the camera is properly focused for the best thermal image quality. The included carrying case provides safe storage and transport.
