GoodConnections Alcasa LW-810LS5 kuitu-patchkaapeli 10 m OM5 LSZH LC-SC vihreä

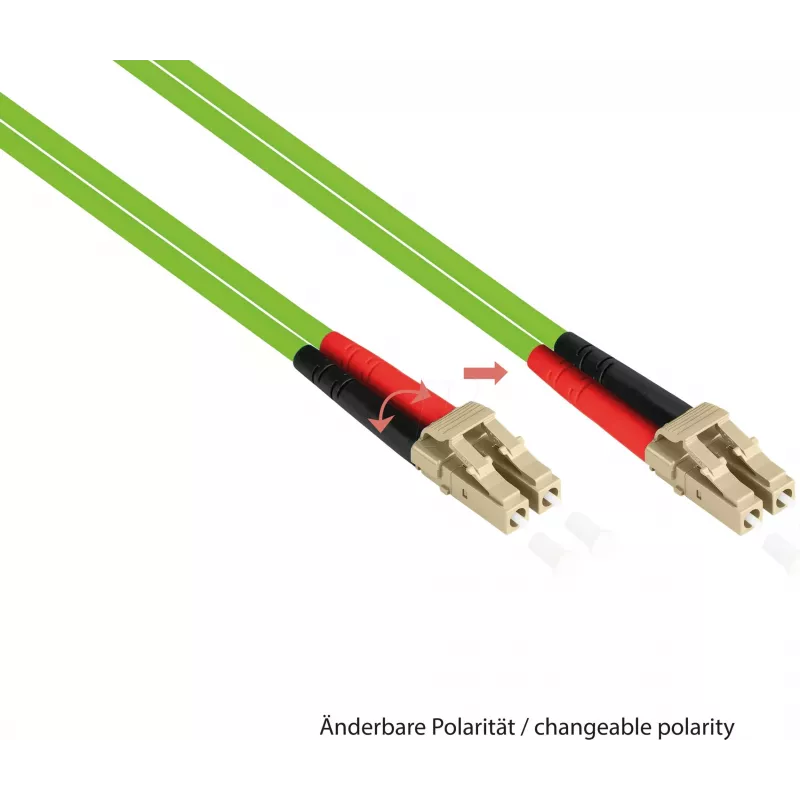

The GoodConnections Alcasa LW-810LS5 is a high-performance fiber optic patch cable designed for reliable data transmission in modern networks. With a length of 10 meters and OM5 wideband multimode fiber, this cable supports high-bandwidth applications over multiple wavelengths, making it ideal for data centers, enterprise networks, and high-speed computing environments. The LC to SC connector configuration ensures compatibility with a wide range of networking equipment, while the LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces.

Advantages

OM5 fiber offers superior bandwidth and flexibility for future-proof network upgrades, supporting both 850 nm and 953 nm wavelengths. The duplex design with two fibers enables bidirectional communication, and the low insertion loss (≤0.3 dB) ensures minimal signal degradation. The green color jacket aids in easy identification and cable management.

Suitable for

• Data center interconnects
• High-speed local area networks (LANs)
• Storage area networks (SANs)
• Telecommunications infrastructure
• Video and broadcast applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM5 (Wideband Multimode Fiber)
• Cable Length: 10 m
• Connector A: LC
• Connector B: SC
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Green
• Core/Cladding Diameter: 50/125 µm
• Number of Fibers: 2 (Duplex)
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Supported Wavelengths: 850 nm, 953 nm
• Effective Modal Bandwidth (EMB) @ 850nm: 4700 MHz·km
• Effective Modal Bandwidth (EMB) @ 953nm: 2470 MHz·km
• Attenuation @ 850nm: ≤ 2.3 dB/km
• Attenuation @ 1300nm: ≤ 0.6 dB/km
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair this cable with OM5-compatible transceivers and ensure proper handling to maintain low insertion loss. Ideal for high-density patching areas where space and safety are critical.
