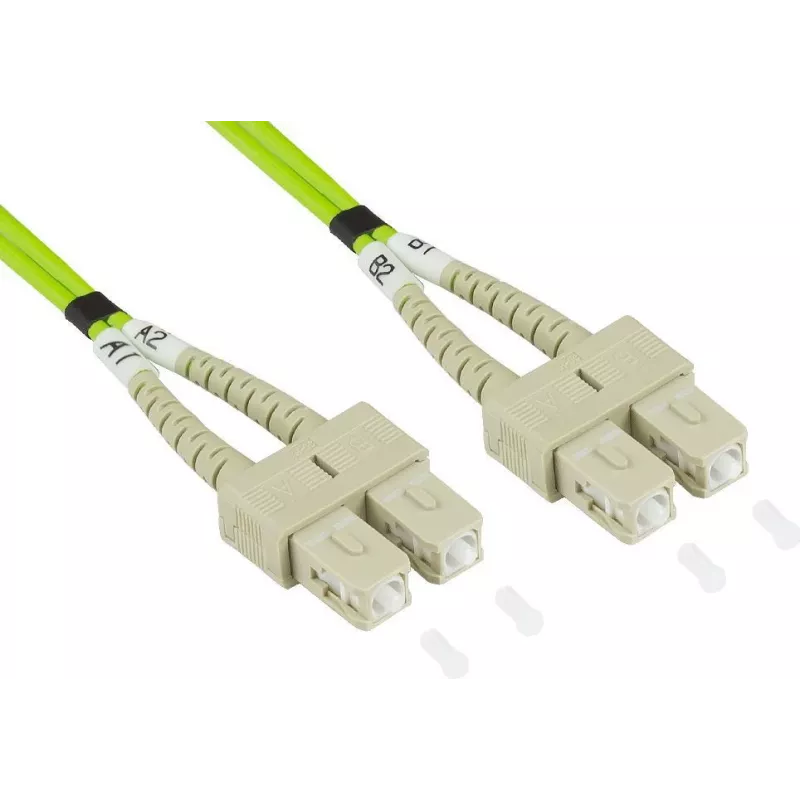

GoodConnections LW-802SC5 kuitu-patchkaapeli 2 m LSZH OM5 SC/SC Duplex vihreä

The GoodConnections LW-802SC5 is a high-performance fiber optic patch cable designed for reliable data transmission in modern networks. With OM5 multimode fiber and SC/SC duplex connectors, this 2-meter cable supports high-bandwidth applications including data centers, LAN, SAN, and FTTx. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the green color aids easy identification.

Advantages

Optimized for SWDM4 wavelengths (850nm and 953nm), the OM5 fiber delivers exceptional bandwidth up to 4700 MHz-km. Low insertion loss (<0.3 dB) and high return loss (>30 dB) guarantee signal integrity. The durable 3.0 mm cable diameter and duplex design provide flexibility and ease of installation.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fiber-to-the-x (FTTx) deployments
• High-speed backbone cabling

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode OM5
• Connectors: SC/SC Duplex
• Length: 2 m
• Jacket Material: LSZH
• Color: Green
• Core/Cladding: 50/125 µm
• Insertion Loss: <0.3 dB
• Return Loss: >30 dB
• Bandwidth (850nm): 2800 MHz-km
• Bandwidth (953nm): 4700 MHz-km
• Compliance: RoHS, CE, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, pair with OM5-compatible transceivers and ensure clean connector end-faces. Suitable for use in structured cabling systems requiring high bandwidth and low latency.
