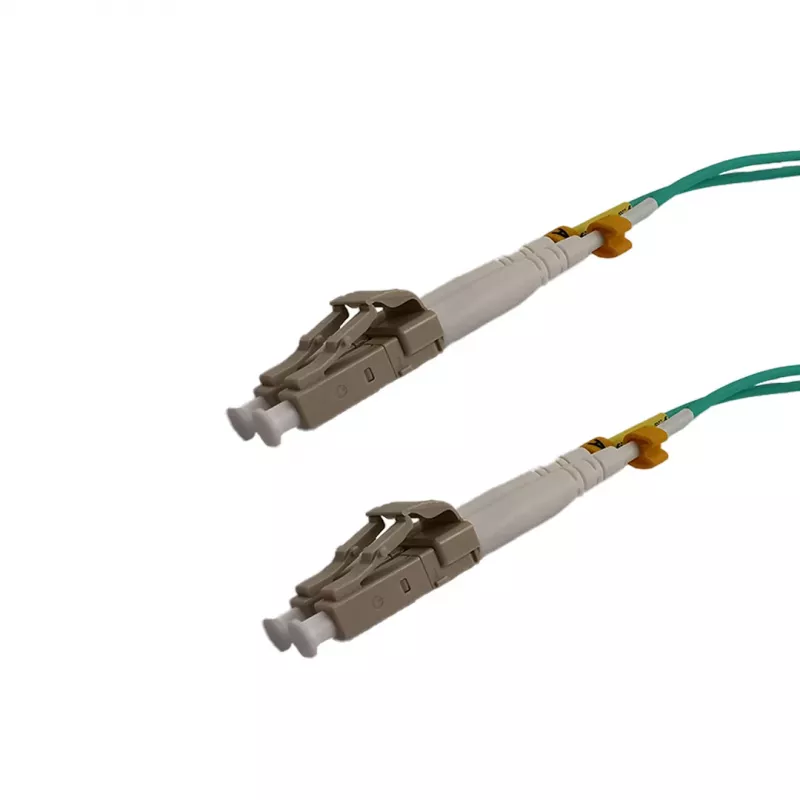

Grafenthal kuitukaapeli OM3 LC/UPC-LC/UPC LSZH 7,00m Aqua Blue

The Grafenthal Optical Fibre Cable OM3 is a high-performance multimode duplex patch cable designed for reliable data transmission in demanding network environments. With LC/UPC connectors on both ends and a length of 7.00 meters, this cable ensures low insertion loss and high return loss, making it ideal for 10G, 40G, and 100G Ethernet applications. The LSZH (Low Smoke Zero Halogen) jacket in aqua blue provides safety and easy identification.

Advantages

This fibre optic cable offers exceptional bandwidth and signal integrity, supporting high-speed data rates up to 100 Gigabit Ethernet. The LSZH jacket reduces toxic smoke and fumes in case of fire, making it suitable for use in confined spaces. The aqua blue colour allows for quick visual identification of OM3 multimode cables in a structured cabling system.

Suitable for

• Data centres and server rooms requiring high-speed interconnects
• Enterprise networks for backbone and horizontal cabling
• Telecommunications and broadcast applications
• Any environment where low smoke and halogen-free materials are required

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Mode: Multimode
• Fibre Type: OM3
• Connector A: LC/UPC
• Connector B: LC/UPC
• Cable Length: 7.00 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua Blue
• Fibre Count: Duplex
• Core/Cladding Diameter: 50/125 µm
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Bandwidth (850nm): 1500 MHz.km
• Bandwidth (1300nm): 500 MHz.km
• Supported Applications: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
• Polish Type: UPC (Ultra Physical Contact)
• Cable Diameter: 2.0 mm (per fibre)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3
• Minimum Bend Radius: 7.5 mm

Recommendations

For optimal performance, ensure that connectors are clean and properly mated. This cable is compatible with all standard LC/UPC interfaces and is recommended for use with OM3-rated transceivers.
