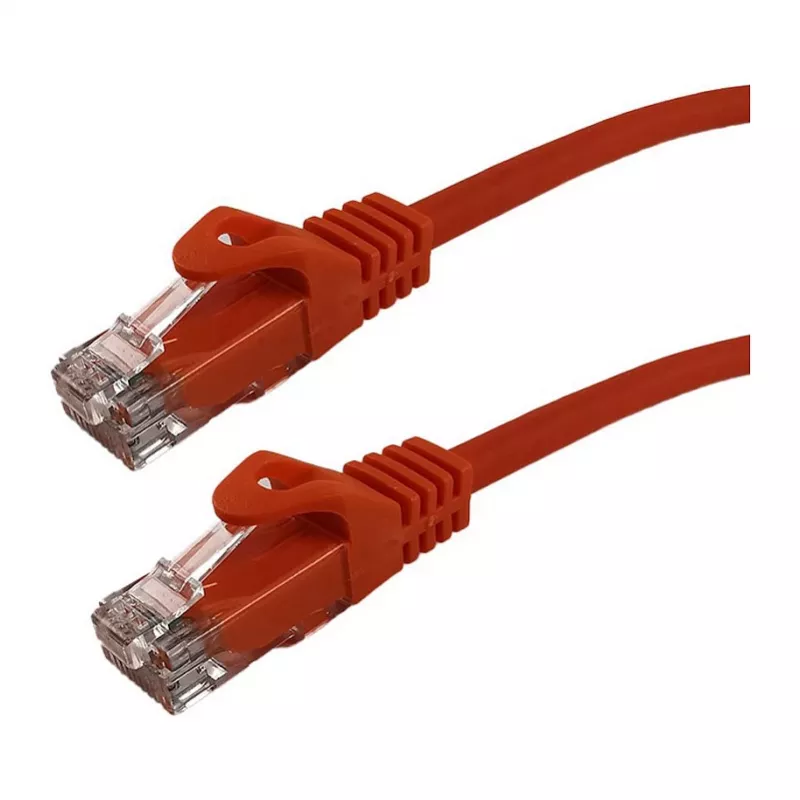

Grafenthal verkkokaapeli CAT6A S/FTP CU LSZH 0,50 m oranssi

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 0.50m Orange is a high-performance Ethernet cable designed for reliable 10 Gigabit network connections. With S/FTP shielding and copper conductors, it ensures minimal interference and excellent signal integrity. The LSZH jacket makes it safe for use in enclosed spaces, reducing toxic smoke in case of fire.

Advantages

This patch cable offers superior data transfer rates up to 10 Gbps, making it ideal for demanding applications such as data centers and high-speed LANs. The gold-plated connectors provide corrosion resistance and optimal conductivity. Its 0.5-meter length is perfect for short-distance connections between patch panels and switches, reducing cable clutter.

Suitable for

• Local Area Networks (LAN)
• Data Centers
• Server rooms
• Power over Ethernet (PoE) applications

Key specifications

• Category: CAT6A
• Shielding: S/FTP
• Conductor: Copper (CU)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Length: 0.5 meters
• Color: Orange
• Connectors: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA 568B
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded
• Outer Diameter: Approx. 6.2 mm
• Impedance: 100 Ohm
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6A compatible devices. Ensure proper cable management to avoid bending beyond the minimum bend radius.
