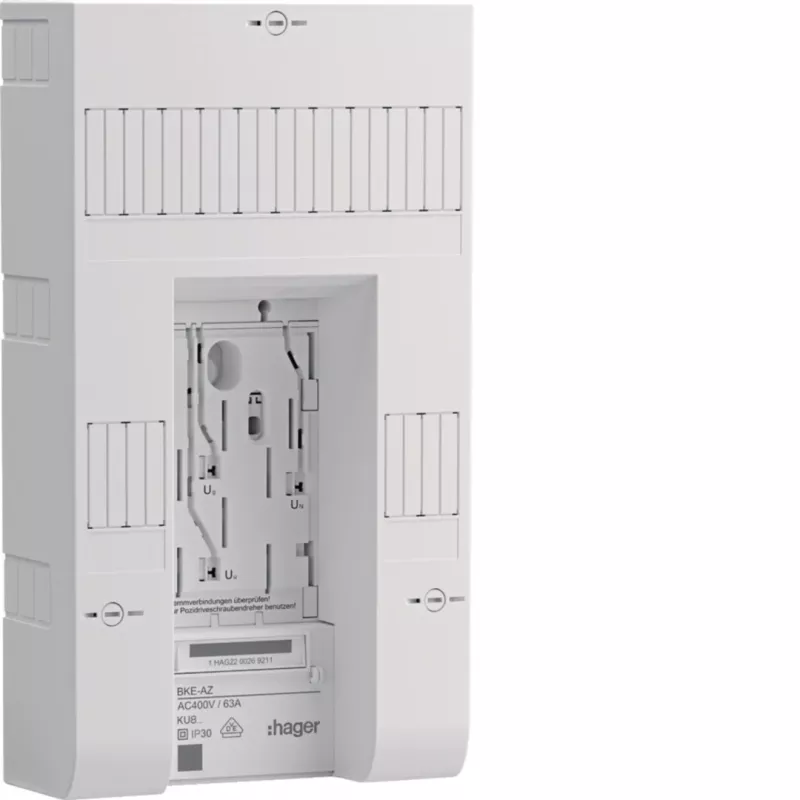

HAGER KU83CHE kolmivaiheinen mittarikaappi BKE-AZ, RfZ 10+2+2 PLE, uppoasennus, valkoinen

The HAGER KU83CHE is a three-phase meter cabinet designed for flush-mounted installation, equipped with a BKE-AZ field and an RfZ space of 10 module units, plus two distribution fields of 12 module units each. This configuration supports modern metering devices and offers ample room for additional applications in residential or commercial electrical installations.

Highlights

• Three-phase (3-phasig) design for standard 230/400 V AC systems
• Equipped for BKE-I (BKE-AZ) to accommodate modern metering devices
• RfZ space with 10 module units (PLE) for additional applications
• Two distribution fields, each with 12 module units (2x12 PLE)
• Flush-mounted (Unterputz) for a clean, integrated look
• Steel sheet construction with powder-coated finish in white (RAL 9010)
• Steel door with lock for secure access

In daily use

This meter cabinet provides a total of 34 module units (10 RfZ + 24 distribution), allowing for flexible configuration of circuit breakers, residual current devices, and other modular equipment. The flush-mounted design saves space and blends seamlessly into walls, while the lockable steel door ensures only authorized personnel can access the metering and distribution components. Rated current up to 63 A and protection class IP31 make it suitable for indoor use in dry environments.

Full specifications

• Product type: Electrical Meter Cabinet
• Mounting type: Flush-mounted (Unterputz)
• Phases: Three-phase
• Number of meter places: 1
• Equipped for BKE-I: Yes
• Space for additional applications (RfZ): Yes
• RfZ module units (PLE): 10
• Number of distribution fields: 2
• Module units per distribution field: 12
• Total module units (distribution + RfZ): 34 PLE
• Protection class: IP31
• Rated current (max.): 63 A
• Rated voltage: 230/400 V AC
• Material: Steel sheet, powder-coated
• Colour: White (RAL 9010)
• Door type: Steel door with lock
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100
• Height: 950 mm
• Width: 550 mm
• Installation depth: 110 mm

Final note

Designed for modern electrical installations, the KU83CHE provides a robust and flexible solution for metering and distribution in a compact flush-mounted format.
