Hager TGC600 pinta-asennettava kotelo lämmitystoimilaitteelle, pystysuora, IP31, valkoinen

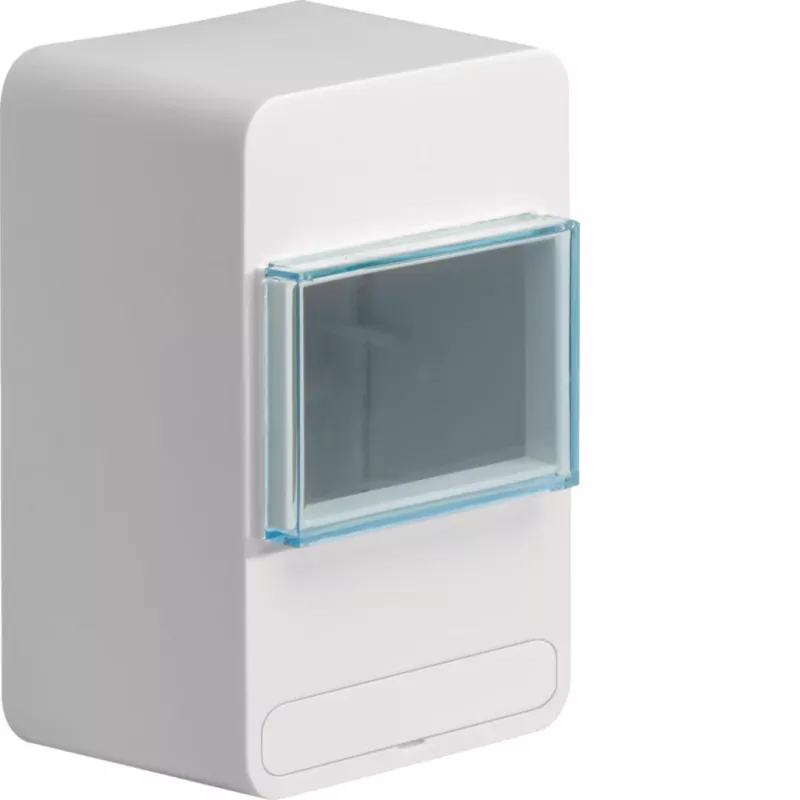

The Hager TGC600 is a high-quality surface-mounted enclosure specifically designed for housing a single heating actuator in heating circuit control systems. Manufactured by Hager, a trusted brand in electrical installation technology, this enclosure offers reliable protection and easy installation for vertical mounting.

Advantages

This enclosure provides IP31 protection against ingress of solid objects and dripping water, ensuring safe operation in indoor environments. Its self-extinguishing, halogen-free plastic material enhances safety, while the IK05 impact resistance adds durability. Pre-punched knock-outs allow flexible cable entry, simplifying wiring.

Suitable for

• Heating circuit control systems
• Hager heating actuators (e.g., for heating circuit control)
• Surface-mounted installations in residential or commercial buildings

Key specifications

• Product Type: Enclosure for Heating Actuator
• Mounting Type: Surface-mounted (AP)
• IP Protection Class: IP31
• Compatibility: Hager Heating Actuators
• Orientation: Vertical
• Material: Plastic
• Colour: White (RAL 9010)
• Number of Actuators Housed: 1
• Cable Entry: Pre-punched knock-outs
• Operating Temperature Range: -5 to +40 °C
• Storage Temperature Range: -25 to +70 °C
• Flammability Rating: Self-extinguishing
• Halogen-free: Yes
• Impact Resistance: IK05
• Standards: EN 60670-1, EN 60670-22
• Application: Heating circuit control systems

Recommendations

For optimal performance, pair this enclosure with compatible Hager heating actuators. Ensure proper mounting on a flat surface and use appropriate cable glands for the knock-outs. Always follow local electrical codes and manufacturer instructions.
