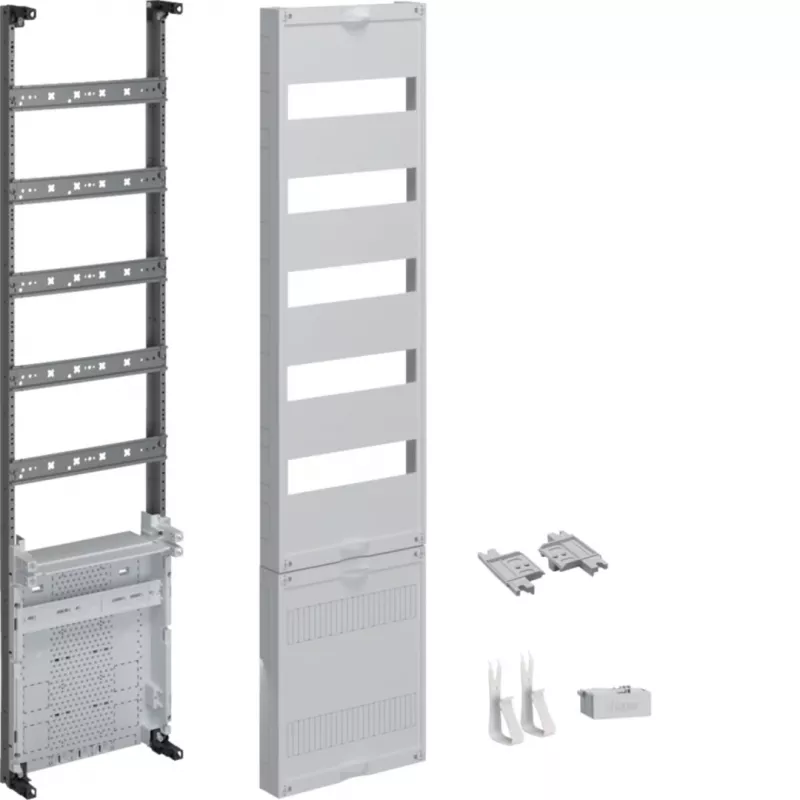

Hager universZ ZU37V5RKAPZ2 mittarikaappi 1-kenttä 5-rivinen 1050mm APZ alhaalla

The Hager universZ ZU37V5RKAPZ2 is a high-quality meter cabinet designed for modern electrical installations. Part of the universZ series, this cabinet offers a flexible and future-proof solution for residential and commercial buildings. With a 1-field, 5-row configuration and an integrated APZ (additional application connection) at the bottom, it provides ample space for metering and distribution equipment.

Advantages

This meter cabinet features a universal mounting system that supports flush-mounted, surface-mounted, and partially recessed installations, making it adaptable to various construction requirements. The 5-pole busbar system (L1, L2, L3, N, PE) ensures safe and efficient power distribution. The cabinet body is made of robust sheet steel with high-quality plastic interior components, offering durability and long service life.

Suitable for

• Residential and commercial buildings requiring a single electronic household meter (eHZ)
• Installations where additional application connections (APZ) are needed for smart metering or other devices
• Projects requiring compliance with DIN VDE 0603-1, DIN 43870-1, and VDE-AR-N 4100 standards

Key specifications

• Product Type: Meter Cabinet (Zählerschrank)
• Series: universZ
• Number of Fields: 1-field
• Number of Rows per Field: 5-rows
• Overall Height: 1050 mm
• Overall Width: 250 mm
• Overall Depth: 210 mm
• APZ (Anschlussplatz für Zusatzanwendungen): Integrated at bottom
• Meter Places: 1 (for eHZ)
• Module Units (TE) per Field: 60 TE (12 TE per row x 5 rows)
• Protection Class (with door): IP31
• Material: Sheet steel (cabinet), high-quality plastic (interior components)
• Mounting Type: Flush-mounted, surface-mounted, partially recessed
• Rated Voltage (max): 230/400 V AC
• Rated Current (max): 63 A
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100
• Door Included: No (cabinet body only, door ordered separately)
• Busbar System: 5-pole busbar system (L1, L2, L3, N, PE)
• Cable Entry: Top and bottom, pre-punched knockouts

Recommendations

For a complete installation, order the corresponding door separately. Ensure compatibility with your specific meter type and local regulations. The universZ system allows easy expansion and customization with a wide range of accessories.
