Hager WDF48001 kaiutinpistorasiamoduuli uppoasennus High End 1-moduuli polarvalkoinen

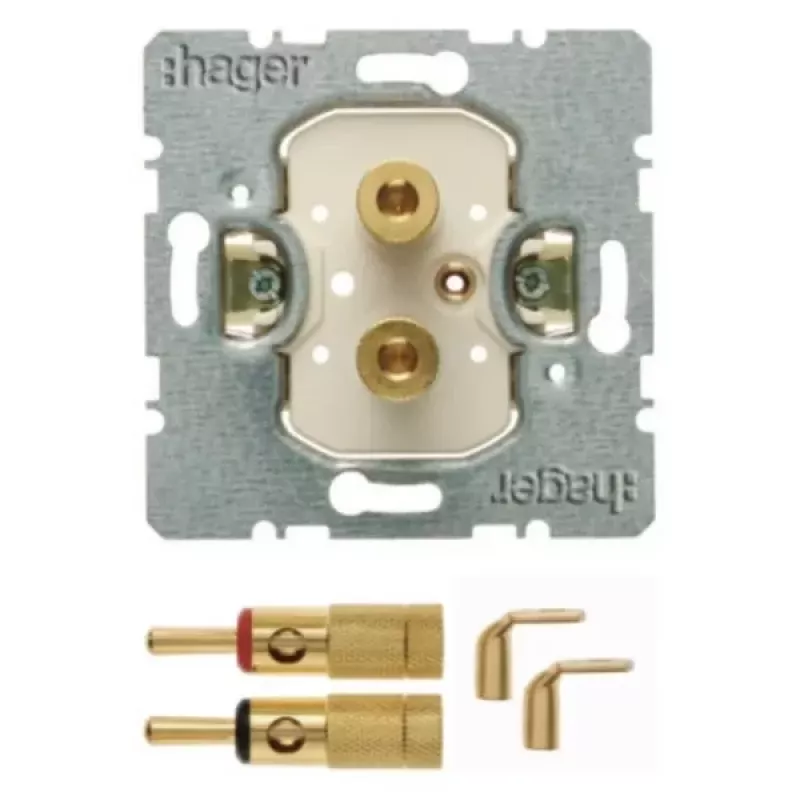

The Hager WDF48001 is a high-end loudspeaker socket module designed for flush-mounted installation in the Hager w1 design line. It provides a clean, professional connection for Hi-Fi audio and home cinema systems, ensuring optimal signal transmission with screw terminals and polarity marking.

Advantages

High-quality thermoplastic construction ensures durability and halogen-free safety. The flush-mounted design integrates seamlessly into walls, maintaining a sleek appearance. Screw terminals accommodate cables up to 4 mm² for secure connections.

Suitable for

• Hi-Fi audio systems
• Home cinema installations
• Multi-room audio setups
• Professional audio environments

Key specifications

• Product Type: Loudspeaker Socket Module
• Mounting: Flush-mounted (UP)
• Connection: Screw terminals, 2 terminals (1 pair)
• Max. Cable Cross-Section: 4 mm²
• Colour: Polar White (RAL 9010)
• Material: Thermoplastic, halogen-free
• Design Line: Hager w1
• Module Size: 1-module unit (1M)
• Protection Degree: IP20
• Operating Temperature: -5 to 40 °C
• Storage Temperature: -25 to 55 °C
• Relative Humidity: 5 to 95% (non-condensing)
• Installation Depth: Approx. 25 mm

Recommendations

For optimal performance, pair with Hager w1 series frames and covers. Ensure proper cable polarity (red +, black -) for correct speaker phase.
