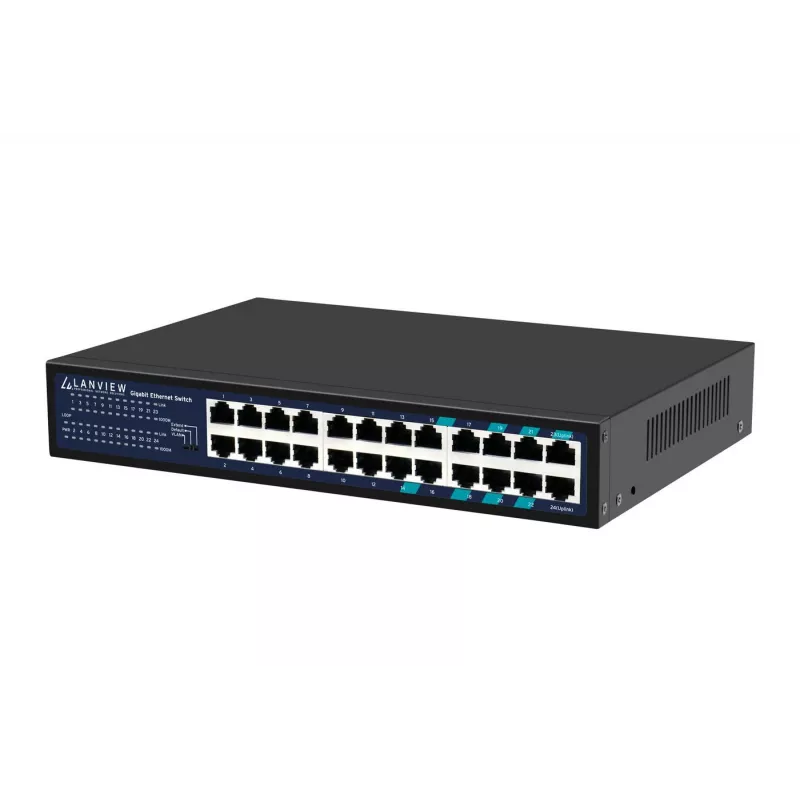

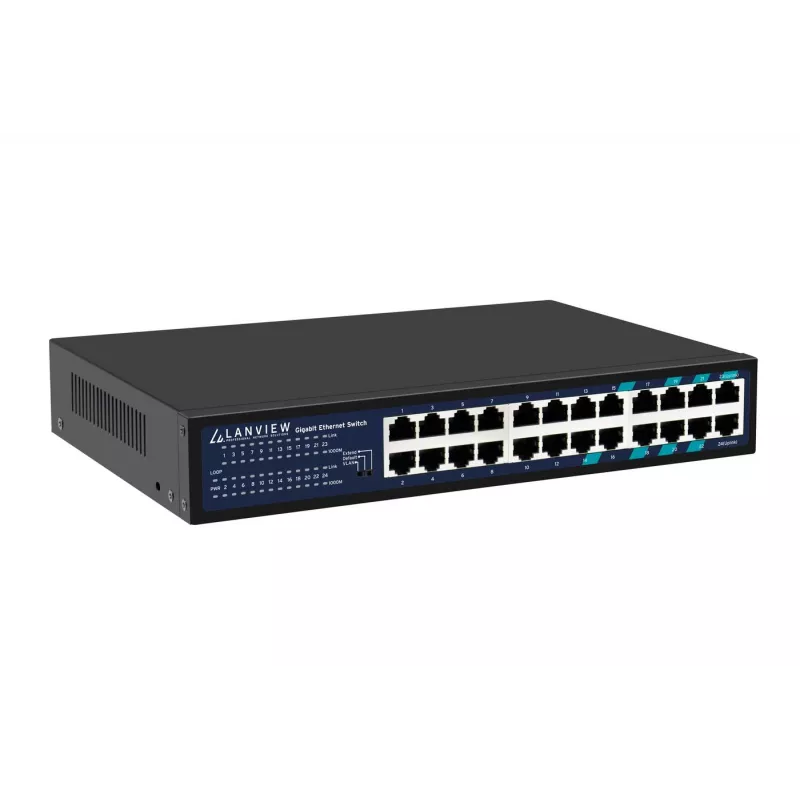

Hallitsematon kytkin Lanview LVN-1U-24PORT-1G — 24-porttinen Full-Gigabit-rack-asennus

The Lanview LVN-1U-24PORT-1G is an unmanaged 24-port full Gigabit Ethernet switch in a 1U rackmount chassis, designed to deliver consistent wired connectivity without configuration. It offers 24 x 10/100/1000 Mbps RJ45 ports for high-speed links between IP phones, workstations and servers. The compact rackable form factor and plug-and-play operation make this switch appropriate for small offices, network edge deployments and aggregation points where reliable throughput and low administration overhead are required.

Advantages

The switch provides full Gigabit performance on all 24 ports, ensuring high bandwidth and low latency for LAN traffic. As an unmanaged device it requires no setup or ongoing configuration, reducing deployment time and administrative effort. The 1U rackmount design saves space in standard equipment racks and supports straightforward cable management. Built-in auto-negotiation and auto-MDI/MDIX eliminate the need for crossover cables and manual speed/duplex settings.

Suitable for

• Small office networks and branch locations
• Network edge or aggregation points for wired devices
• Connecting IP phones, desktop PCs and networked printers
• Temporary or permanent expansion of existing LAN infrastructures

Key specifications

• 24 x 10/100/1000 Mbps RJ45 ports
• 1U rackmount metal chassis
• Unmanaged plug-and-play operation
• Auto-negotiation and auto-MDI/MDIX on all ports
• Wire-speed switching capacity suitable for gigabit traffic
• Standard AC power input with internal power supply

How to use

Install the switch in a standard 19-inch rack using the included mounting brackets or place it on a flat surface. Connect each network device to an available RJ45 port using Category 5e or better Ethernet cables to achieve gigabit speeds. Plug the power cord into the switch and an appropriate AC outlet; the device will power on and automatically establish link parameters with connected devices. No additional configuration is required to start forwarding traffic.

Recommendations

For stable gigabit performance, use Cat5e or Cat6 cables and ensure patch panels and connected NICs support 1 Gbps. Maintain adequate ventilation in the rack to prevent overheating and place the switch away from strong electromagnetic interference. For networks requiring VLANs, QoS or remote management, consider a managed alternative; otherwise, this unmanaged switch is suited for straightforward, low-administration deployments.
