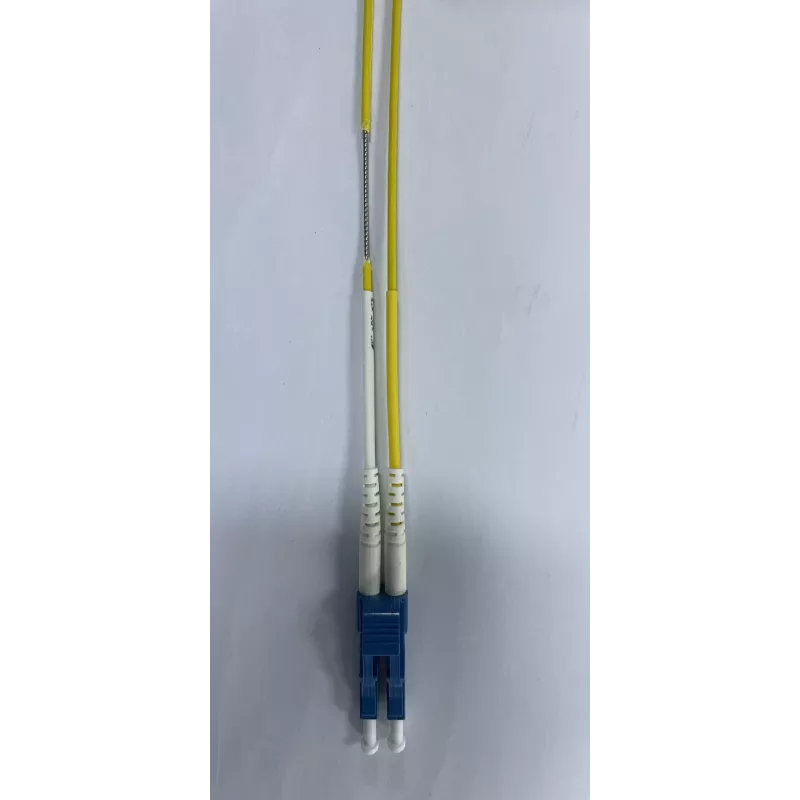

HELOS kuitu Duplex verkkokaapeli, LC/LC, 9/125 µm, teräspanssari, 18 m (51940.18A)

The HELOS LWL Duplex Patch Cable is a high-performance fiber optic patch cable designed for reliable single-mode transmission. With LC/LC duplex connectors and a steel armored jacket, this cable provides enhanced protection for indoor installations where durability is critical. The 9/125 µm fiber core ensures low attenuation and high bandwidth for long-distance data transmission.

Advantages

Steel armored construction offers superior mechanical protection against crushing and rodent damage, making it ideal for harsh environments. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces by emitting minimal smoke and toxic fumes in case of fire. Low insertion loss and high return loss guarantee excellent signal integrity.

Suitable for

• Data center backbone connections
• Telecommunications networks
• Industrial Ethernet applications
• Secure indoor cabling requiring extra protection

Key specifications

• Fiber Type: Single-mode OS2
• Core/Cladding: 9/125 µm
• Connectors: LC Duplex to LC Duplex
• Length: 18 meters
• Armoring: Steel armored
• Jacket Material: LSZH
• Cable Color: Yellow
• Insertion Loss: < 0.3 dB typical
• Return Loss: > 50 dB typical
• Operating Wavelengths: 1310nm, 1550nm
• Attenuation: 0.35 dB/km @ 1310nm, 0.25 dB/km @ 1550nm
• Polarity: A-B (Crossed)
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is suitable for indoor use with enhanced protection requirements. Pair with compatible LC duplex transceivers for best results.
