InLine Keystone-teline DIN-kiskoon, 1 portti, vaaleanharmaa

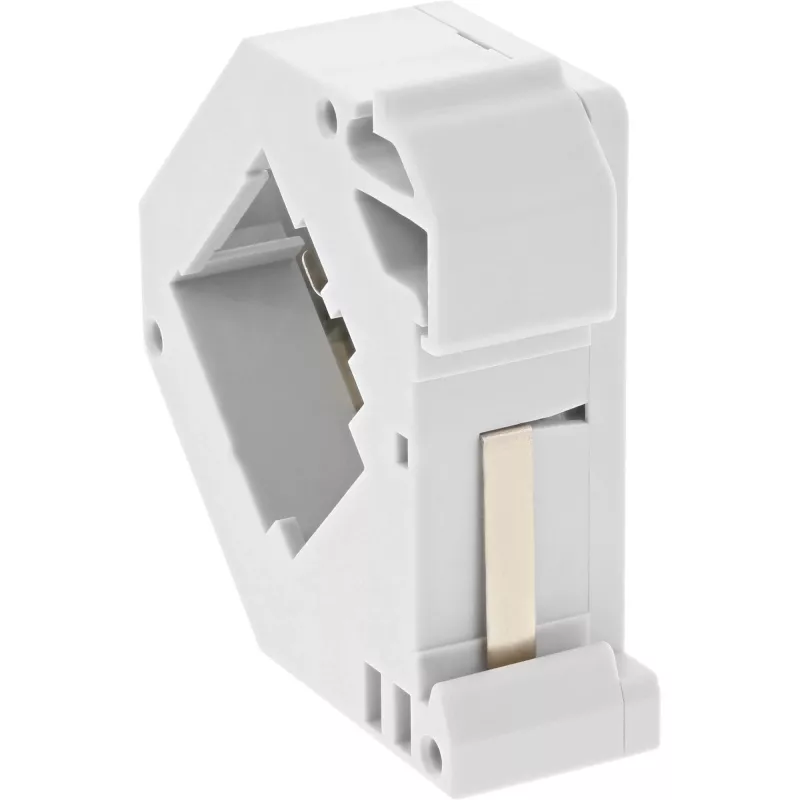

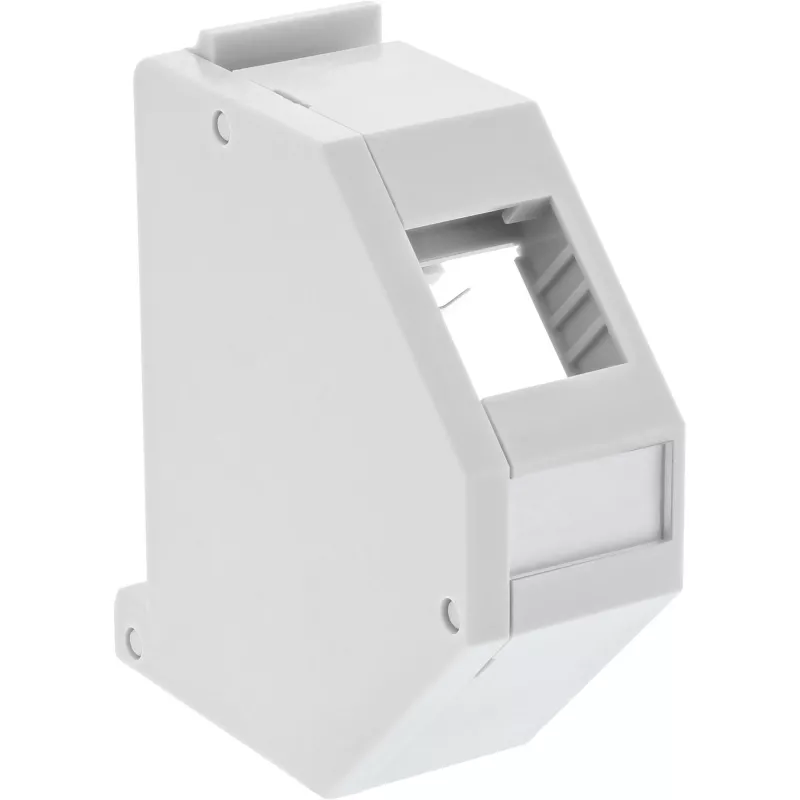

The InLine Keystone Mounting for DIN rail InLine 76203 is a single-port, light grey keystone holder designed for snap-in installation on standard DIN rails. Made of durable plastic and shaped at an angle, it accepts one keystone module with a maximum width of 17.4 mm and provides a compact mounting solution for network and signal connectors.

Advantages

The holder has standardized dimensions for easy snap-in mounting and stable retention on DIN rails. Its angled design improves cable routing and accessibility in control cabinets. Constructed from durable plastic, it offers a lightweight and corrosion-resistant option for organizing keystone modules in industrial and commercial installations.

Suitable for

Key specifications

How to use

Insert a compatible keystone module (max. 17.4 mm width) into the front opening until it snaps into place. Position the holder on the DIN rail and press to engage the snap-in clip so the holder locks securely to the rail. Route cables to the installed keystone module and connect them according to the module type (e.g., RJ45, coax, or audio). To remove the holder, release the snap clip and pull the unit off the rail.

Recommendations

Use keystone modules that do not exceed the specified maximum width (17.4 mm). Verify compatibility of the module type with the intended application (network, telephone, or multimedia). Ensure proper cable strain relief and leave sufficient space on the DIN rail for ventilation and access.
