InLine patch-paneeli Cat.6 24 porttia 19" 1HE musta RAL9005

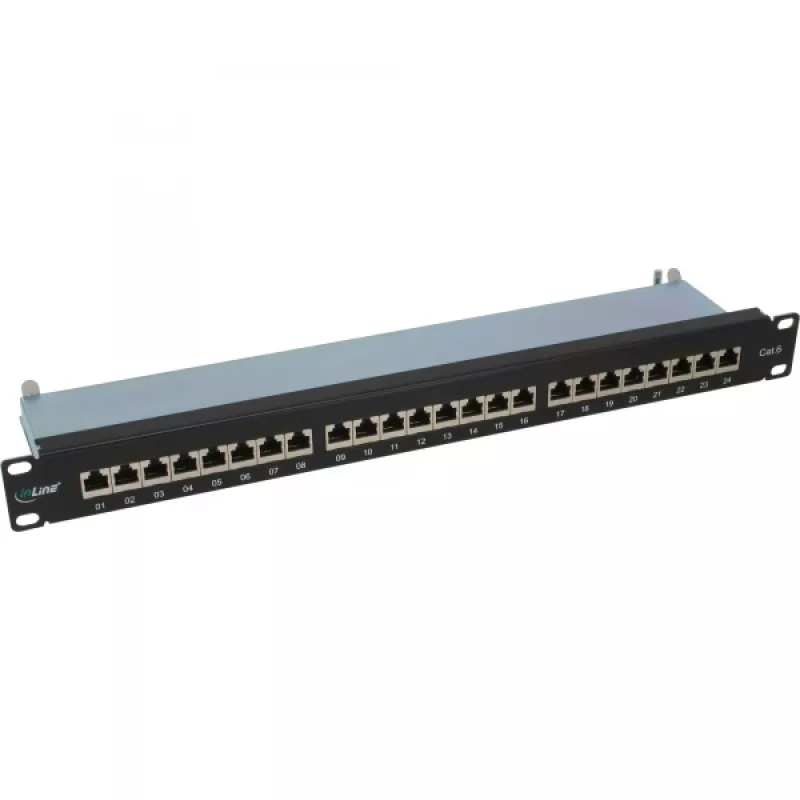

The InLine Patch Panel Cat.6 24 Port 19" 1HE in black RAL9005 provides a compact, fully shielded 24-port solution for 19" racks. It supports Category 6 cabling and uses LSA insulation displacement connectors to terminate up to 24 installation cables. The half-height design allows two panels to occupy a single 1U space to provide 48 ports when rack space is limited. Numbered RJ45 ports and a housing with knurled screws on the rear allow straightforward access and cable identification.

Advantages

Fully shielded construction reduces electromagnetic interference and improves signal integrity. Cat.6 support ensures compatibility with high-speed Ethernet networks. LSA insulation displacement connectors allow secure, tool-assisted termination of installation cabling. The half-height 1HE form factor saves rack space by enabling two panels to provide 48 ports in one rack unit. Sequentially numbered RJ45 ports simplify port management and documentation.

Suitable for

• Structured cabling in offices and data closets
• Small and medium server racks requiring high port density
• Cat.6 Ethernet networks and voice/data installations
• Environments where shielded connectivity is required

Key specifications

• Brand: InLine
• Model / MPN: 76224S
• EAN: 4043718076215
• Ports: 24 RJ45
• Standard: up to Cat. 6
• Mounting: 19" rack, half-height (1HE)
• Connector type: LSA insulation displacement
• Shielding: fully shielded
• Colour: Black (RAL9005)

How to use

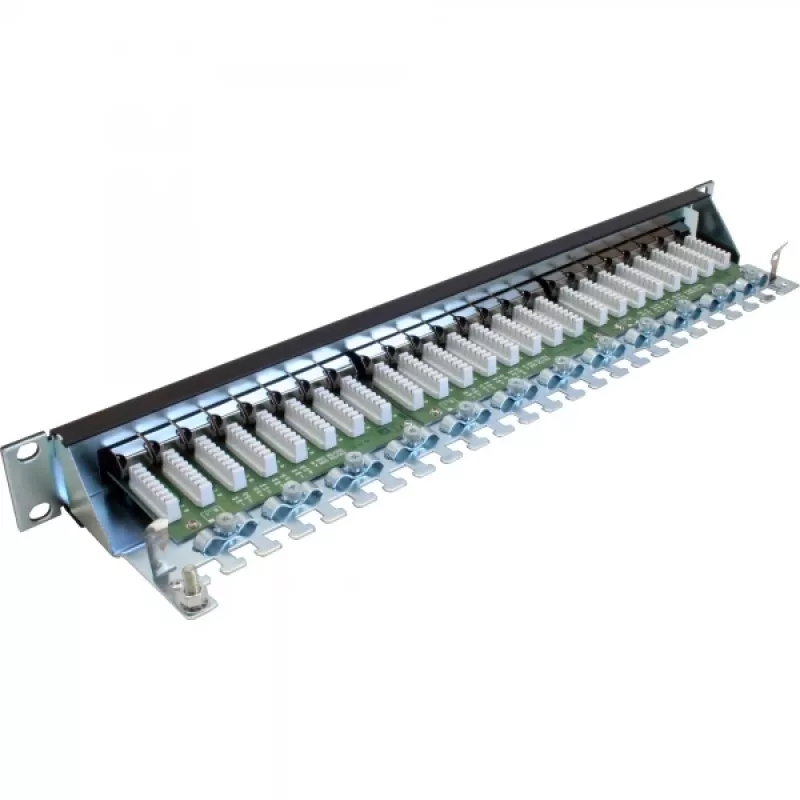

Mount the patch panel in a 19" rack using the rack-mounting holes. Terminate each installation cable into the LSA insulation displacement connectors according to your wiring scheme (TIA/EIA or local standard). Connect patch cables to the numbered RJ45 ports for network devices. To access the rear, loosen the knurled screws, open the housing, perform cable routing and fastening, then close and re-tighten the screws.

Recommendations

For best performance, use Cat.6 or better cabling, follow the chosen wiring standard for consistent pair mapping, and ensure proper grounding of the shielded panel and connected cabling.
