InLine teollisuusverkkokaapeli, M12 4-napainen D-koodattu uros RJ45, PUR 2 m

High-quality industrial network cable with D-coded CAT5E performancefor data rates of up to 100 Mbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connectorand IP20 RJ45 connector side– ideal for harsh and humid environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

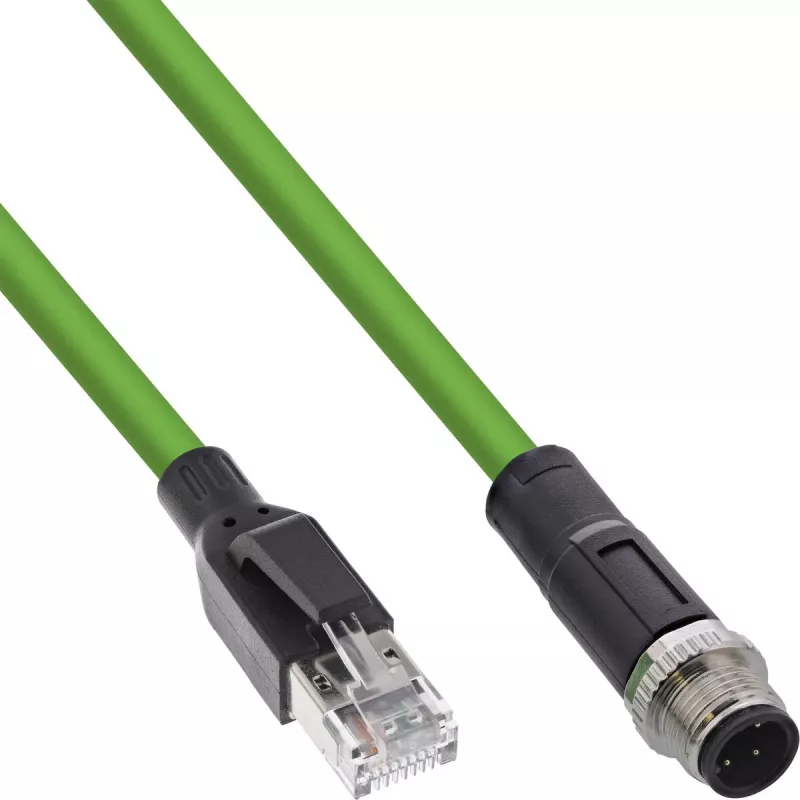

The InLine® industrial network cable M12 4-pin D-coded to RJ45has been specially developed for industrial applications where a reliable and robust connection is essential. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. The RJ45 plug with IP20is suitable for secure connection to industrial network infrastructures. With CAT5E performance, the cable enables transmission rates of up to 100 Mbit/s, which ensures stable and fast communication.
Whether for use in production facilities, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.Technical specifications:

Conductor cross-section: AWG 24
Shielding: SF/UTP
Connector type: M12 4-pin D-coded (IP67) to RJ45 (IP20)
Sheathing material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green

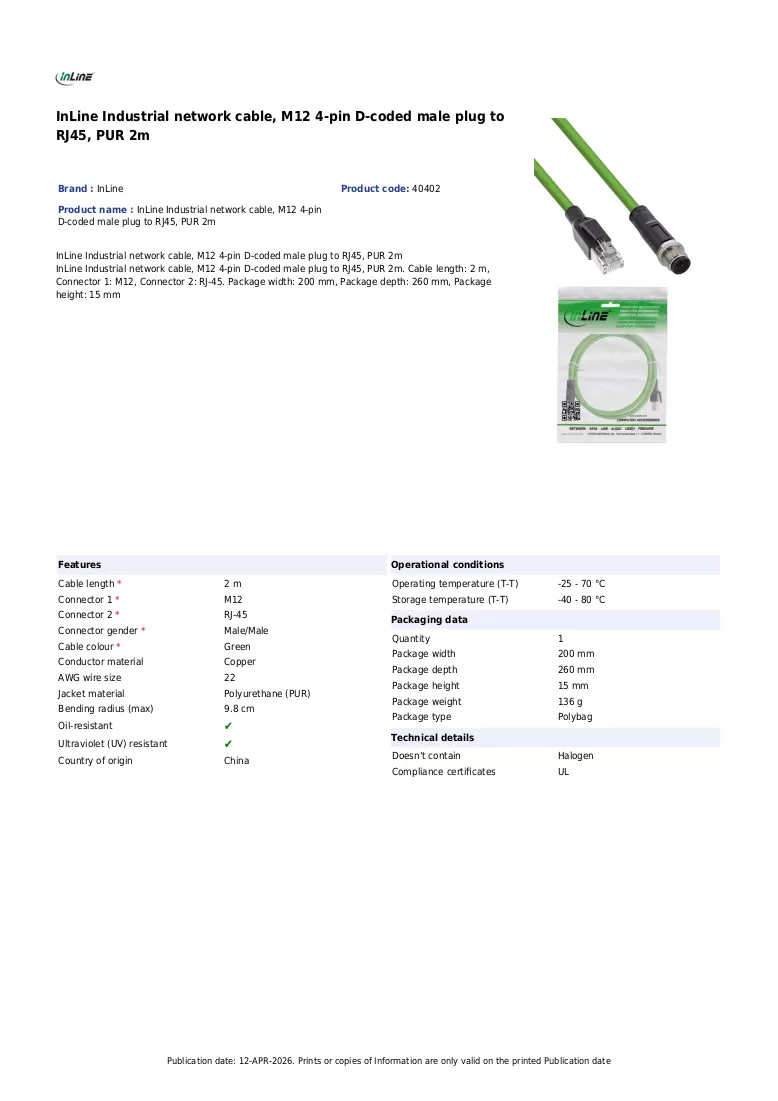

InLine Industrial network cable, M12 4-pin D-coded male plug to RJ45, PUR 2m. Cable length: 2 m, Connector 1: M12, Connector 2: RJ-45. Package width: 200 mm, Package depth: 260 mm, Package height: 15 mm

How to use

Connect the M12 D-coded male plug to the corresponding M12 socket on your industrial device or switch and insert the RJ45 connector into the network port. Ensure connectors are fully engaged and, where present, tighten any retention mechanisms on the M12 connector. Route the cable to avoid sharp edges and maintain bending radii above the specified dynamic and static limits. Use the cable within the stated temperature range and environmental conditions.

Recommendations

For reliable long-term operation, avoid repeated bends below the specified radii, keep the M12 connector correctly sealed when exposed to moisture, and inspect connections periodically for mechanical wear. Use the cable in applications requiring CAT5E-level performance and in installations where IP67 protection on the device side is required.
