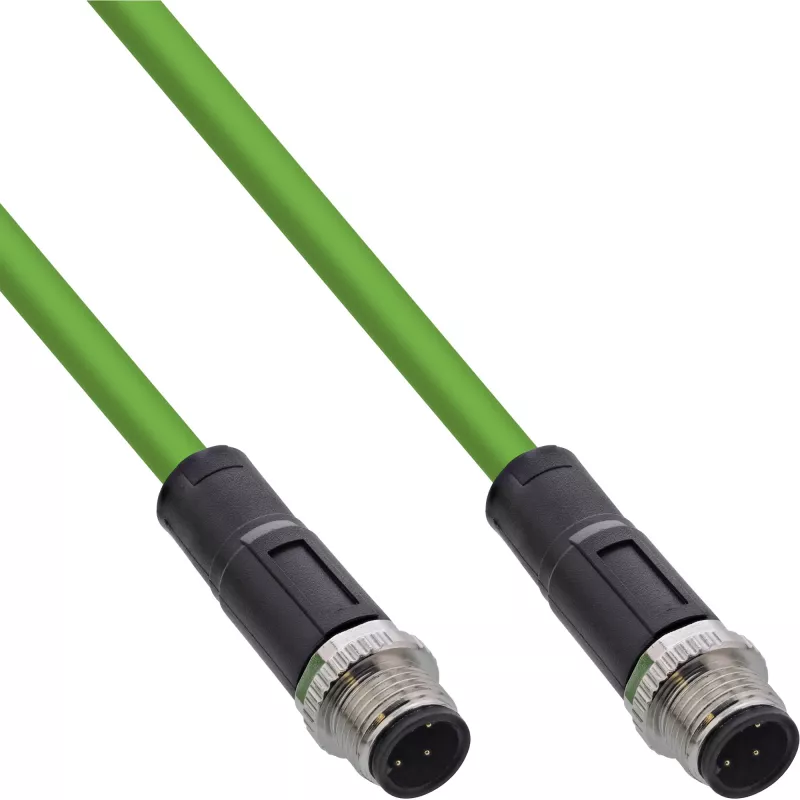

InLine teollisuusverkkokaapeli, M12 4-napainen D-koodattu uros/uros, PUR 3 m

High-quality industrial network cable with D-coded CAT5E performancefor data rates of up to 100 Mbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and damp environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 4-pin D-coded plug/connectorhas been specially developed for industrial applications where a reliable and robust connection is essential. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With CAT5E performance, the cable enables transmission rates of up to 100 Mbit/s, which ensures stable and fast communication.
Whether for use in production facilities, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Conductor cross-section: AWG 24
Shielding: SF/UTP

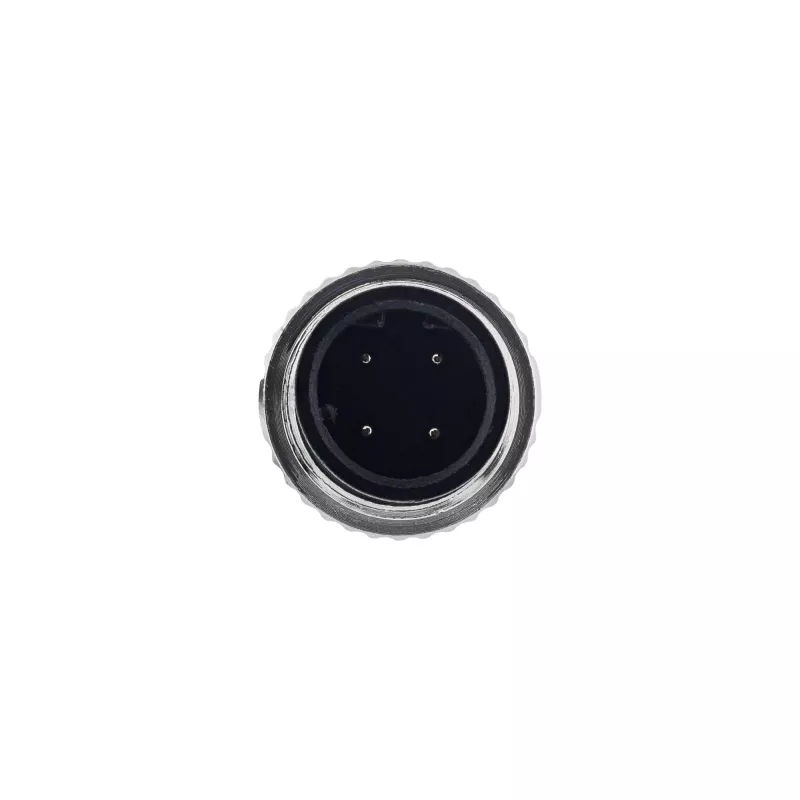

Connector type: M12 4-pin D-coded (IP67) to M12 4-pin D-coded (IP67)
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green

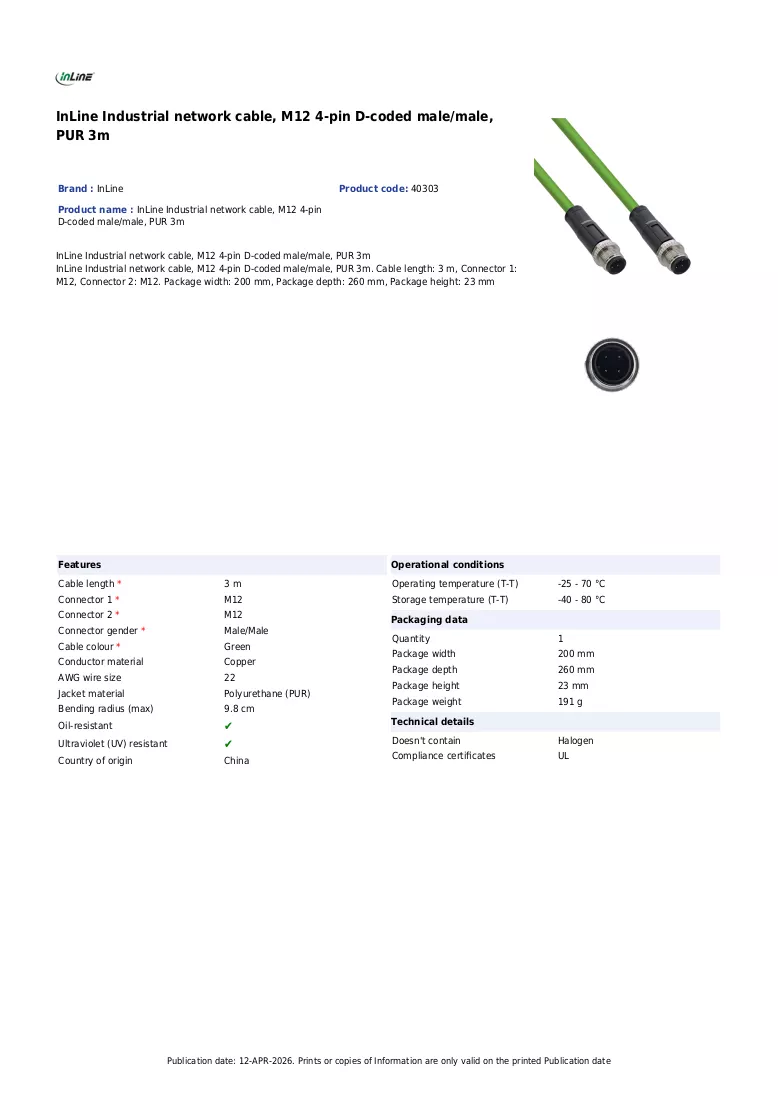

InLine Industrial network cable, M12 4-pin D-coded male/male, PUR 3m. Cable length: 3 m, Connector 1: M12, Connector 2: M12. Package width: 200 mm, Package depth: 260 mm, Package height: 23 mm

How to use

Align the D-coded M12 male connectors with the corresponding M12 D-coded female ports and screw the threaded coupling to secure the connection. Route the 3 m PUR cable to avoid sharp bends and pinch points; secure with appropriate clips or ties if necessary. Verify network settings and test the link after installation to confirm proper data transmission.

Recommendations

Use the cable within its intended industrial environment and avoid excessive bending radii. Keep connectors clean and free of debris before mating. For permanent outdoor deployment, verify environmental protection requirements and consider additional shielding or protection if exposure to chemicals or extreme conditions is expected.
