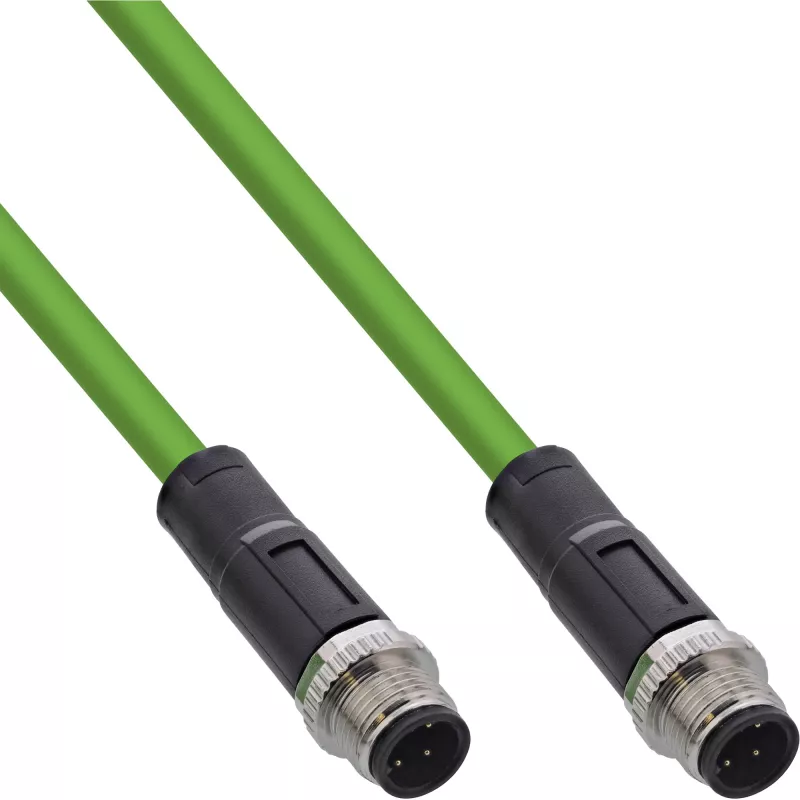

InLine teollisuusverkkokaapeli, M12 4-napainen D-koodattu uros/uros, PUR 20 m

High-quality industrial network cable with D-coded CAT5E performancefor data rates of up to 100 Mbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and damp environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 4-pin D-coded plug/connectorhas been specially developed for industrial applications where a reliable and robust connection is essential. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With CAT5E performance, the cable enables transmission rates of up to 100 Mbit/s, which ensures stable and fast communication.
Whether for use in production facilities, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Conductor cross-section: AWG 24
Shielding: SF/UTP

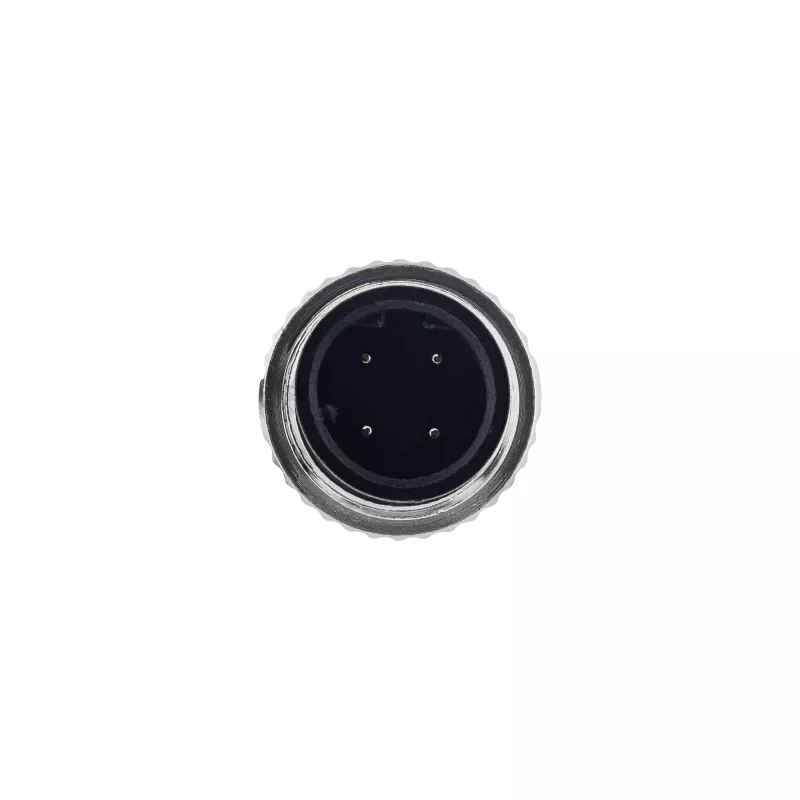

Connector type: M12 4-pin D-coded (IP67) to M12 4-pin D-coded (IP67)
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green

InLine Industrial network cable, M12 4-pin D-coded male/male, PUR 20m. Cable length: 20 m, Connector 1: M12, Connector 2: M12. Package width: 305 mm, Package depth: 335 mm, Package height: 50 mm

How to use

Connect the M12 male connectors to corresponding D-coded M12 female ports on devices such as switches, controllers, sensors or actuators. Ensure connectors are clean and properly aligned before tightening the coupling nut to the manufacturer’s torque specification. Route the cable to avoid sharp edges, heavy crushing loads and hot surfaces; secure with appropriate clamps or cable ties to prevent movement and wear.

Recommendations

For best performance, use the cable within its intended industrial environment, avoid excessive bending radii, and inspect connectors regularly for contamination or damage. Do not expose the cable to temperatures or chemicals outside the PUR jacket specifications provided by the manufacturer.
