InLine verkkokaapeli, U/UTP, Cat.6A, halogeeniton, AWG23 kupari, musta 40 m

This InLine Patch cable U/UTP Cat.6A halogen-free AWG23 copper in black is a 40 m RJ-45 to RJ-45 cable designed for high-speed data and audio/video transmission. Its AWG23 all-copper conductors and Cat.6A U/UTP construction enable stable signal transfer and support image transmission via HDBaseT up to 4K/30Hz over distances up to 70 m when used with compatible transmitter and receiver units.

Advantages

The cable uses AWG23 all-copper conductors and halogen-free insulation for reliable conductivity and safety. Cat.6A U/UTP specification and robust RJ-45 connectors provide consistent high-speed data transfer. The 40 m length and black jacket make it suitable for installations where longer runs and discreet appearance are required.

Suitable for

• Connecting HDBaseT transmitter and receiver units for audio/video extension
• High-speed Ethernet links in offices and server rooms
• AV installations requiring up to 4K/30Hz video over extended distances

Key specifications

• Length: 40 m
• Cable type: U/UTP Cat.6A
• Conductor: AWG23 all-copper

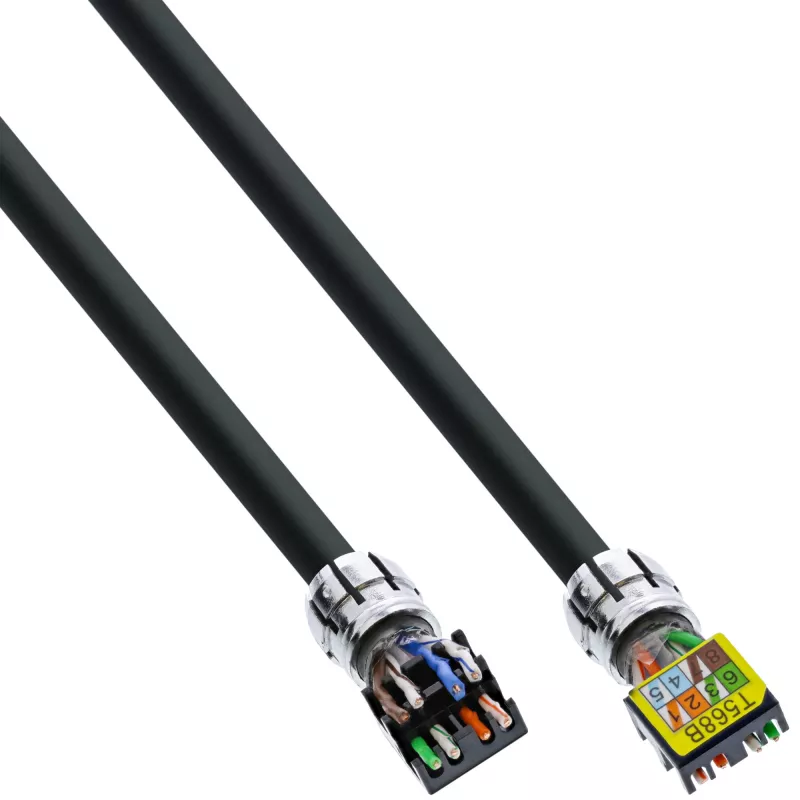

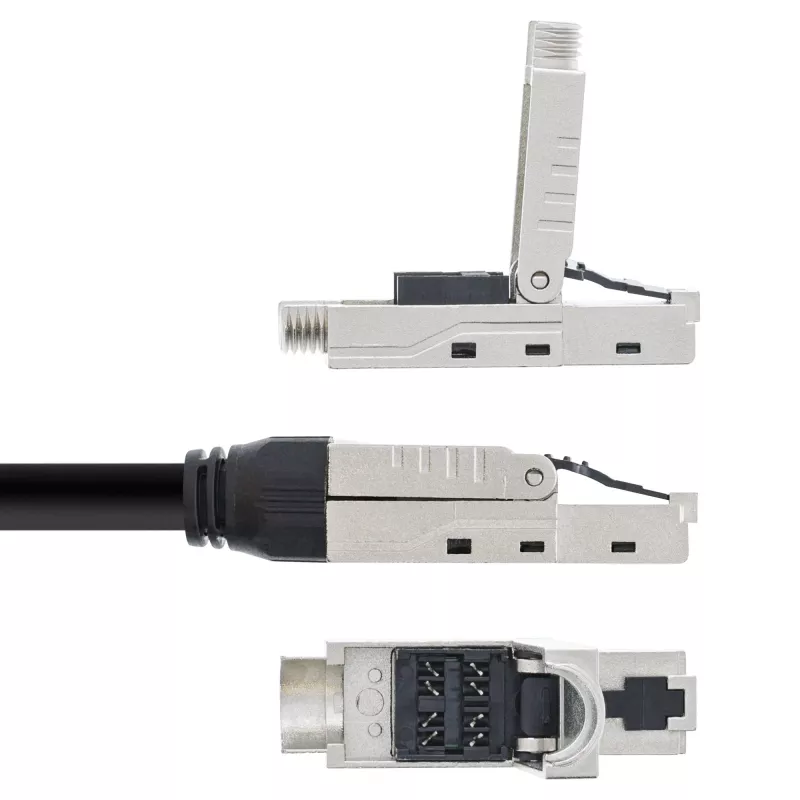

• Connectors: RJ-45 to RJ-45
• Colour: Black
• Halogen-free insulation

How to use

Connect one RJ-45 connector to the transmitter unit and the other RJ-45 connector to the receiver unit or network device. Ensure connectors are fully inserted and secured in the ports. For AV extension using HDBaseT, verify that connected devices support HDBaseT and configured resolutions up to 4K/30Hz. Avoid tight bends and protect the cable from sharp edges to maintain signal integrity.

Recommendations

For best performance, keep total HDBaseT run lengths within 70 m when transmitting 4K/30Hz video; for longer distances or higher resolutions, consult device specifications or consider active extenders. Install the cable away from strong electromagnetic interference sources and avoid excessive pulling force during installation.
