Intercable ICR2512 putkikaapelikenkä 25 mm² M12 tinattu R-sarja

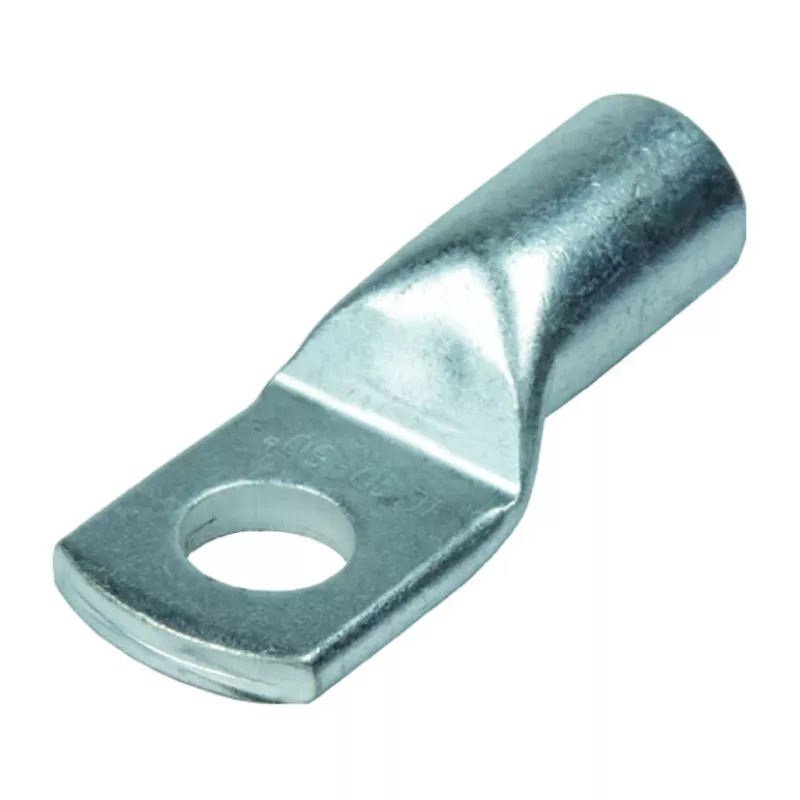

The Intercable ICR2512 tubular cable lug provides a robust and reliable crimp connection for copper conductors with a cross-section of 25 mm². Its tin-plated electrolytic copper construction ensures excellent conductivity and corrosion resistance, making it ideal for demanding electrical installations.

Advantages

This cable lug features a funnel entry for easy conductor insertion and a palm hole for M12 bolts, ensuring a secure mechanical and electrical connection. The tin plating enhances solderability and protects against oxidation, while the DIN 46235 compliance guarantees dimensional accuracy and performance.

Suitable for

• Power distribution systems
• Industrial machinery wiring
• Switchgear and control panels
• Renewable energy installations

Key specifications

• Cable cross-section: 25 mm²
• Bolt hole diameter: M12 (13 mm)
• Material: Electrolytic copper, tin-plated
• Overall length: 45 mm
• Palm width: 20 mm
• Tube outer diameter: 11.5 mm
• Tube inner diameter: 7.5 mm
• Palm thickness: 2.5 mm
• Operating temperature: -55°C to +150°C
• RoHS compliant

Recommendations

For optimal results, use a suitable crimping tool designed for tubular cable lugs and ensure the conductor is fully inserted before crimping. Always follow local electrical codes and standards.
