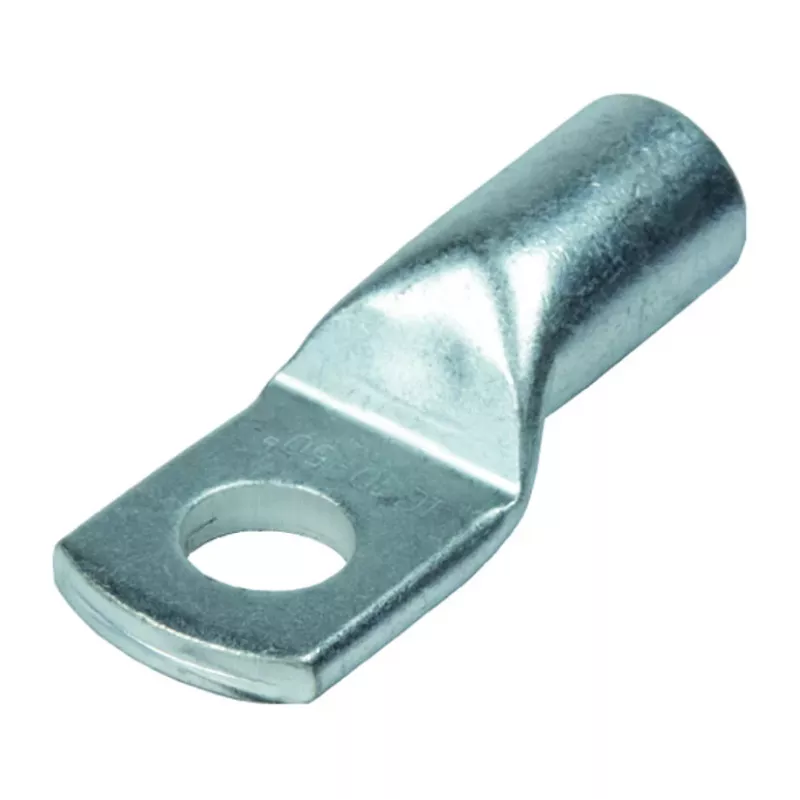

Intercable ICR3512 putkikaapelikenkä 35mm² M12 tinattu R-sarja

Tubular cable lug engineered for dependable crimp connections on 35 mm² stranded copper conductors. Its tin-plated electrolytic copper body delivers low contact resistance and excellent corrosion protection, while the M12 stud hole suits standard switchgear and busbar terminations.

Advantages

Flared entry and inspection hole speed up cable insertion and visual verification. Electrolytic copper with tin plating ensures high conductivity and long-term stability. The R-Series design is optimized for industrial crimping tools, producing a uniform, gas-tight joint that resists vibration and thermal cycling.

Suitable for

• Power distribution panels and control cabinets
• Grounding and equipotential bonding
• Industrial machinery and motor connections
• Low and medium voltage installations up to 1 kV and beyond
• Stranded copper conductors with 35 mm² cross-section

Key specifications

• Cable cross-section: 35 mm²
• Bolt hole: M12 (12 mm)
• Material: Electrolytic copper, tin-plated
• Connection method: Crimp / compression
• Standard: DIN 46235
• Operating temperature: -40°C to +120°C
• Inspection hole: Yes
• Cable entry: Flared / funnel
• RoHS compliant, halogen-free
• Recommended tools: Intercable HT50, HT131-L

Recommendations

For reliable, code-compliant terminations, pair with calibrated Intercable crimping dies and verify each crimp through the inspection hole. Always follow the tool manufacturer's pressure settings for 35 mm² copper lugs.
