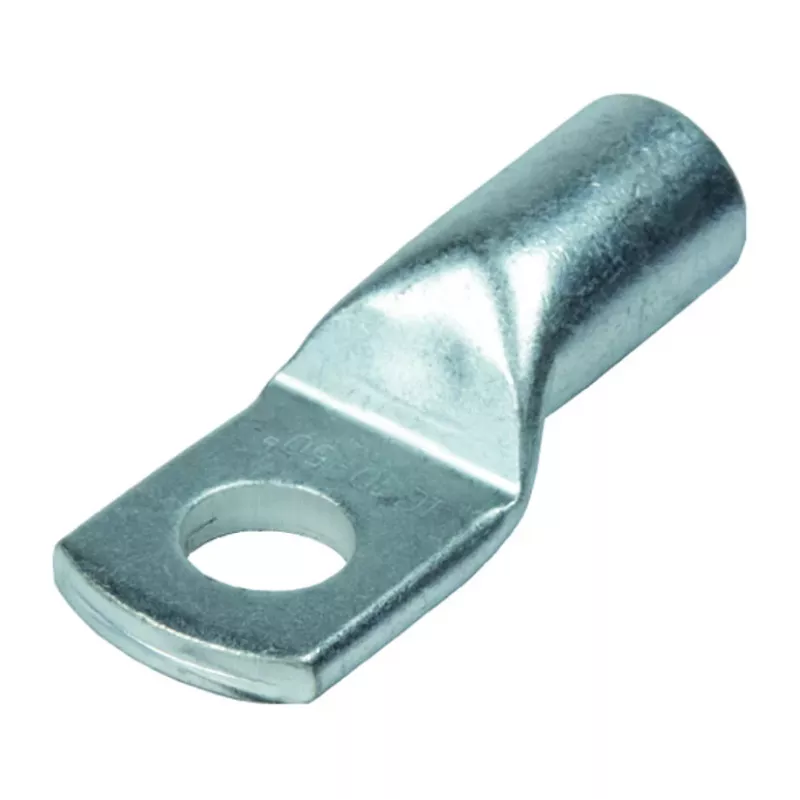

Intercable ICR3510 putkikaapelikenkä 35 mm² M10 tinattu R-sarja

The Intercable ICR3510 tubular cable lug from the R-Series sets itself apart through its meticulous engineering for reliable high-current connections. Unlike generic lugs, this model features a funnel-shaped entry that simplifies insertion of stranded copper conductors, reducing installation time and the risk of strand damage. The tin-plated surface ensures excellent corrosion resistance and low contact resistance, making it a dependable choice for professional electrical installations.

Highlights

• Designed for 35 mm² stranded copper conductors (Class 2, 5, 6)
• M10 stud size with 10.5 mm bolt hole for secure fastening
• Made from high-purity electrolytic copper (E-Cu) for superior conductivity
• Galvanic tin plating provides long-term protection against oxidation
• Complies with DIN 46235 for dimensional and performance standards
• Funnel-shaped entry for easy cable insertion and optimal crimping
• RoHS compliant, suitable for modern environmental requirements

In daily use

In practice, the ICR3510 excels in power distribution and industrial control panels. Its robust construction withstands mechanical stress during crimping, while the tin coating maintains a stable connection even in humid or mildly corrosive environments. The lug's design ensures a tight, gas-tight crimp when used with appropriate tooling, minimizing voltage drop and heat generation at the joint. Whether you're terminating cables in switchgear, motor connections, or battery systems, this lug delivers consistent performance.

Full specifications

• Product type: Tubular cable lug
• Series: R-Series
• Cable cross-section: 35 mm²
• Bolt hole diameter: M10 (10.5 mm)
• Material: Electrolytic copper (E-Cu)
• Surface treatment: Tin-plated (galvanic)
• Standard: DIN 46235
• Conductor type: Stranded copper conductors (Class 2, 5, 6)
• Connection method: Crimp
• Insulation: Uninsulated
• Temperature range: -5°C to +105°C
• Voltage rating: Up to 1000 V
• Entry type: Funnel-shaped
• RoHS compliant: Yes
• Application: Power distribution, electrical installations
• Colour: Metallic (tin)

Final note

For electricians and panel builders who demand reliability and compliance, the Intercable ICR3510 offers a professional-grade solution that meets stringent DIN standards while simplifying installation.
