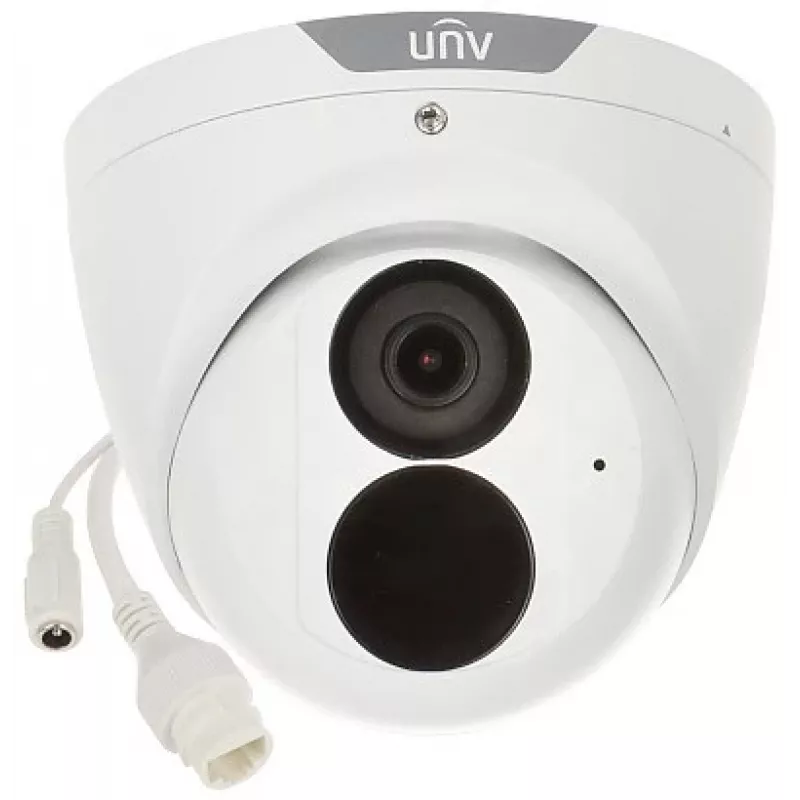

IP-kamera IPC3615SB-ADF28KM-I0 5 MP 2,8 mm

The IPC3615SB-ADF28KM-I0 is a high-performance 5 MP IP camera designed for professional surveillance. Featuring a 2.8 mm fixed lens and advanced imaging technology, it delivers crisp 2880 x 1620 resolution at 30 fps. With 120 dB True WDR, 30 m IR night vision, and IP67/IK10 protection, this camera is ideal for indoor and outdoor security applications.

Advantages

Exceptional image quality with 5 MP resolution and 120 dB WDR ensures clear footage in challenging lighting. The 2.8 mm lens provides a wide 106.7° horizontal field of view, covering large areas. Built-in IR LEDs offer reliable night vision up to 30 m. The camera supports multiple video compression formats including Ultra 265, H.265, H.264, and MJPEG, reducing bandwidth and storage requirements. Smart analytics such as motion detection, tripwire, intrusion, and face detection enhance security monitoring. The rugged IP67 and IK10 ratings guarantee durability against dust, water, and vandalism.

Suitable for

• Perimeter surveillance for commercial and residential properties
• Parking lots, warehouses, and retail stores
• Critical infrastructure requiring high-definition monitoring
• Outdoor installations exposed to harsh weather conditions

Key specifications

• Sensor: 1/2.7" Progressive Scan CMOS
• Max Resolution: 5 MP (2880 x 1620) at 30 fps
• Lens: 2.8 mm fixed, F1.6
• Horizontal FoV: 106.7°
• IR Distance: 30 m (98 ft)
• Video Compression: Ultra 265 / H.265 / H.264 / MJPEG
• WDR: 120 dB True WDR
• Noise Reduction: 2D/3D DNR
• Audio: Built-in microphone
• Local Storage: Micro SD card slot (up to 256 GB)
• Network: RJ45 10/100M Ethernet
• Power: 12V DC / PoE (IEEE 802.3af), max 6.0 W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Smart Features: Motion Detection, Tripwire, Intrusion, Face Detection
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the Micro SD card is high endurance for continuous recording. The camera is compatible with most NVRs supporting ONVIF Profile S/G/T.
