Jännitemuuntimen tehostin 55V asti ATTE ASUC-100-550-OF

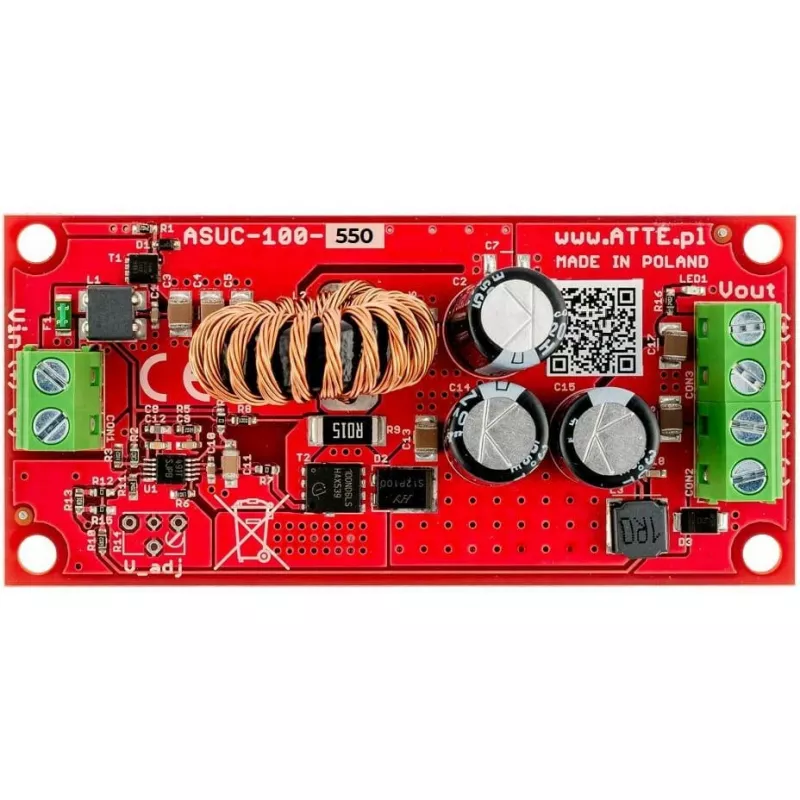

The ATTE ASUC-100-550-OF is a high-efficiency, non-isolated DC/DC step-up voltage converter that provides a fixed 55 VDC output from a wide input voltage range. It is designed for applications such as generating PoE supply voltage from 12 VDC or 24 VDC sources, and its open-frame construction allows flexible integration.

Key features

• Wide input voltage range
• Fixed 55 VDC output voltage
• Low heat generation due to high efficiency
• High output power in a compact module size
• Reverse polarity protection
• Open Frame (OF) design for custom installation
• LED1 indicator for output voltage presence

Specifications

• Brand: ATTE
• MPN: ASUC-100-550-OF
• Output voltage: 55 VDC ±2%
• Output power: 120 W @24 V, 80 W @12 V
• Efficiency: 93% @Vin=12 V, Pout=80 W
• Supply voltage: 10...30 VDC
• No-load current: 27 mA @12 V
• Operating temperature: -20...+40°C
• Dimensions: 40 x 83 x 27 mm
• Weight: 0.036 kg
• Mounting: snap-on distance pins, mounting holes in 10.8 mm grid
