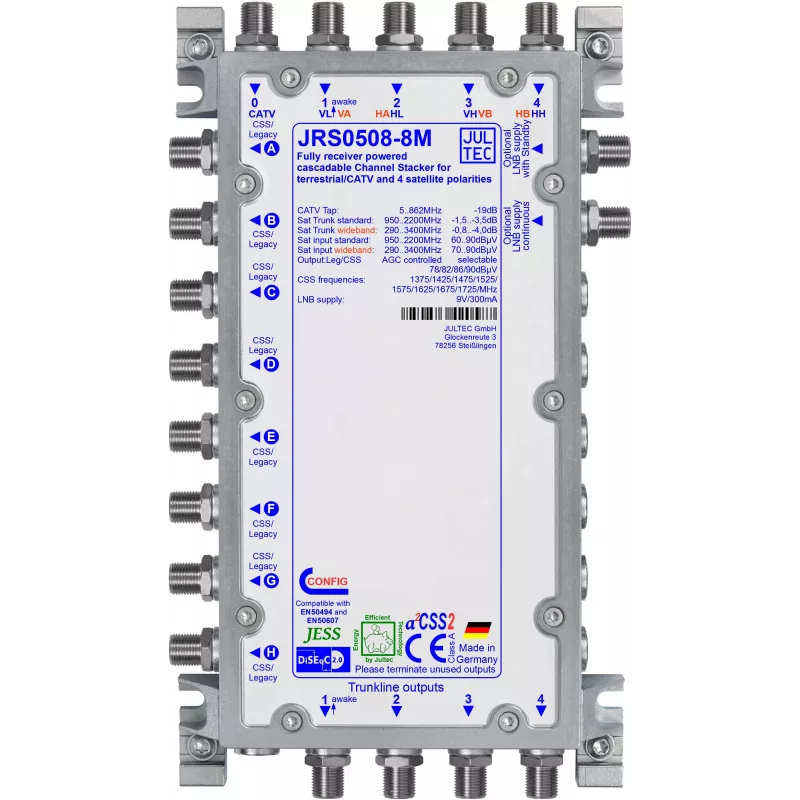

JULTEC JRS0508-8M Unicable II / JESS -multiswitch, 5 tuloa, 8 lähtöä, 64 käyttäjäkaistaa

The JULTEC JRS0508-8M is a high-performance Unicable II / JESS multiswitch designed for professional satellite and terrestrial signal distribution. It converts a single cable from a satellite LNB or terrestrial antenna into eight independent user outputs, each supporting up to eight user bands, for a total of 64 user bands. This master unit is cascadable, allowing expansion for larger installations.

Advantages

Simplifies cabling by using a single coaxial cable to feed multiple receivers or tuners. Supports both Unicable I (EN50494) and Unicable II / JESS (EN50607) protocols for broad compatibility. Active terrestrial path with gain ensures strong terrestrial signal distribution. Die-cast metal housing provides durability and effective shielding.

Suitable for

• Satellite TV installations with multiple receivers or recorders
• Single-cable distribution in apartments, hotels, or office buildings
• Upgrading existing Unicable I systems to Unicable II / JESS
• Combined satellite and terrestrial signal distribution

Key specifications

• Product Type: Unicable II / JESS Multiswitch
• Inputs: 5 (4x SAT IF, 1x Terrestrial)
• Outputs: 8 (Unicable II / JESS)
• User Bands per Output: 8
• Total User Bands: 64
• SAT IF Input Frequency Range: 950 - 2150 MHz
• Terrestrial Input Frequency Range: 5 - 862 MHz
• Unicable Output Frequency Range: 950 - 2150 MHz
• Control Protocol: EN50494 (Unicable I), EN50607 (Unicable II / JESS)
• Terrestrial Path: Active, with gain
• Cascadable: Yes (Master Unit)
• LNB Power Supply: Via external PSU (e.g., JNT19-2000) or SAT inputs
• Power Consumption (Device): < 100 mA (without LNBs)
• Connectors: F-type
• Switching Commands: DiSEqC 1.x, SCR (Unicable I), JESS (Unicable II)
• Input Level (SAT): 60 - 90 dBµV
• Output Level (Unicable): Max. 85 dBµV
• Power Supply Unit (PSU): External, not included (recommended: Jultec JNT19-2000 or JNT19-3000)
• Operating Temperature: -20 to +50 °C
• Housing Material: Die-cast metal

Recommendations

For optimal performance, use with a compatible Unicable II / JESS LNB and an external power supply such as the Jultec JNT19-2000 or JNT19-3000. Ensure all connections use high-quality F-type connectors and coaxial cable.
