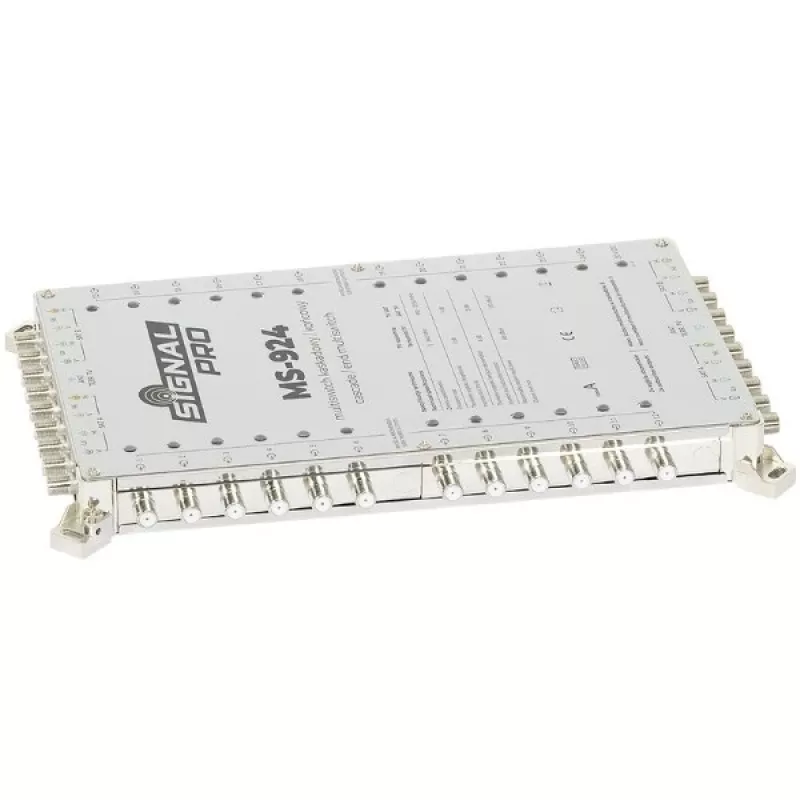

SIGNAL Through Multiswitch MS-924

The SIGNAL Through Multiswitch MS-924 is a professional-grade cascade multiswitch designed for satellite and terrestrial signal distribution. It supports up to 8 satellite inputs (for 2 SAT positions, H/V, High/Low bands) and 1 terrestrial input, providing 4 user outputs and 9 cascade outputs (8 SAT + 1 TER). Ideal for multi-dwelling units and commercial installations, it ensures reliable signal distribution with low loss and high isolation.

Advantages

This multiswitch offers excellent signal integrity with satellite trunk loss of only 3 dB and terrestrial trunk loss of 3 dB. The user outputs have 0 dB satellite tap loss and 20 dB terrestrial tap loss, ensuring strong signal delivery. With DiSEqC 2.0 control protocol and LNB powering (13V/18V, 0/22kHz switching), it is compatible with most satellite systems. The return path support (5-30 MHz) enables interactive services.

Suitable for

• Satellite TV distribution in apartment buildings, hotels, and offices
• Combined satellite and terrestrial signal distribution
• Professional installations requiring cascade capability

Key specifications

• Multiswitch Type: Cascade (Through)
• Satellite Inputs: 8
• Terrestrial Inputs: 1
• User Outputs: 4
• Cascade Outputs: 9 (8 SAT + 1 TER)
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 5 - 862 MHz
• Satellite Trunk Loss: 3 dB
• Terrestrial Trunk Loss: 3 dB
• Satellite Tap Loss (User Output): 0 dB
• Terrestrial Tap Loss (User Output): 20 dB
• Control Protocol: DiSEqC 2.0 (compatible with 1.0/1.1)
• LNB Powering: 13V/18V, 0/22kHz switching
• Input/Output Connectors: F-type
• Power Consumption: 150 mA (from 18V DC)
• Operating Temperature: -20 to +50 °C
• Return Path Support: Yes (5-30 MHz)
• SAT-SAT Isolation: >30 dB
• SAT-TER Isolation: >30 dB

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This multiswitch is designed for indoor use only. Cascade multiple units for larger installations.
