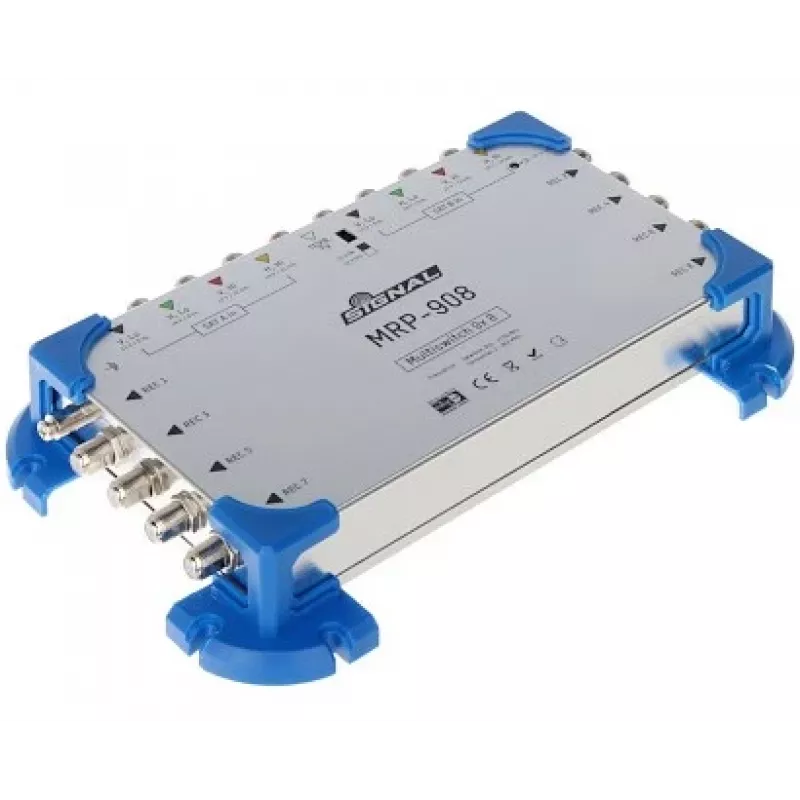

SIGNAL MRP-908 multiswitch 9 tuloa / 8 lähtöä

Distributing satellite TV to multiple rooms can be a challenge, especially when you need to combine signals from two Quatro LNBs and a terrestrial antenna. The SIGNAL MRP-908 Multiswitch solves this by taking 9 inputs—8 satellite and 1 terrestrial—and delivering them to up to 8 receivers, ensuring every connected TV gets a strong, independent signal.

Who is it for

This multiswitch is ideal for residential and commercial installations where multiple satellite receivers need access to different transponders simultaneously. It works perfectly with Quatro LNBs and supports DiSEqC 2.0, making it compatible with modern satellite receivers. Whether you're setting up a home with several TVs or a small hotel distribution system, the MRP-908 provides reliable performance.

Main features

• 8 satellite inputs from 2 Quatro LNBs
• 1 terrestrial input for combining TV and radio signals
• 8 receiver outputs, each with full band access
• DiSEqC 2.0 control for LNB switching
• 13V/18V and 0/22kHz switching for universal LNBs
• High isolation between outputs (>28 dB) to prevent interference
• Internal power supply for clean installation

Specifications

• Satellite frequency range: 950-2150 MHz
• Terrestrial frequency range: 47-862 MHz
• Satellite input loss: -3 dB typical
• Terrestrial input loss: -2 dB typical
• Maximum LNB current: 500 mA
• SAT input isolation: >30 dB
• SAT-TER isolation: >30 dB
• Output isolation: >28 dB
• Power consumption: 5 W
• Operating temperature: -20 to +50 °C
• Connectors: F-type

Tips

For best results, use high-quality coaxial cable and ensure proper grounding. The MRP-908 is designed for indoor use; mount it in a well-ventilated area to maintain optimal operating temperature. When connecting multiple receivers, verify that each receiver's DiSEqC settings match the multiswitch configuration.
