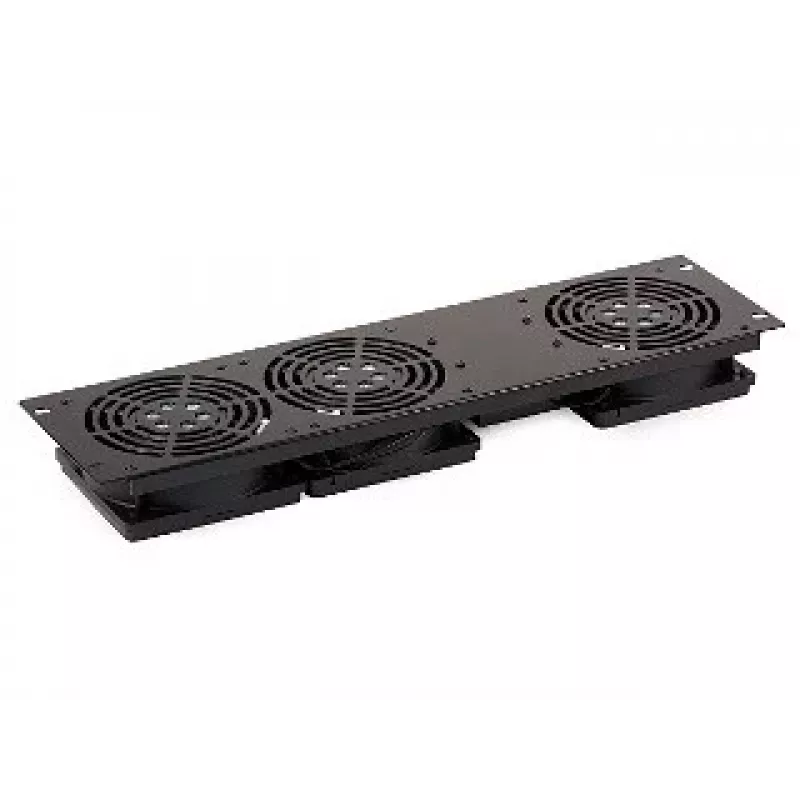

SIGNAL A19-3W 19 tuuman 1U rack-asennettava tuuletinpaneeli 3 tuulettimella, 230V, musta

Server rooms and data centers often struggle with uneven heat distribution, putting critical equipment at risk. The SIGNAL A19-3W rack fan panel mounts directly into any standard 19-inch rack, using three 120 mm fans to deliver 330 m³/h of airflow through hot spots. Install it at the top to exhaust warm air or at the bottom to draw in cool air, maintaining stable temperatures for switches, servers, and UPS units.

Key specifications

• 1U height, fits standard 19-inch racks
• Three 120 x 120 x 38 mm fans
• Total airflow: 330 m³/h (approx. 194 CFM)
• Noise level: < 50 dB per fan
• Input: 230V AC, 50 Hz, 66 W, 0.36 A
• Power connector: IEC C14, 1.8 m cable included
• Housing: steel, black (RAL 9004)
• Operating temperature: 0–50 °C

Why choose it

This fan panel combines robust steel construction with efficient cooling, making it a reliable choice for continuous operation. The front-mount design allows easy access for maintenance, while the included power cable simplifies installation. Its moderate noise level suits environments where silence is not critical but reliability is.

Ideal use cases

• Cooling network switches and patch panels in server racks
• Improving airflow in enclosed cabinets with high-density equipment
• Preventing overheating in AV racks or industrial control enclosures
• Adding active ventilation to racks without built-in fans

Good to know

The panel operates on standard 230V AC and includes a 1.8 m power cable with an IEC C14 connector. It is designed for front rack mounting and works continuously in temperatures from 0 to 50 °C. Storage temperature range is -20 to 60 °C, with relative humidity from 20 to 80% (non-condensing).
