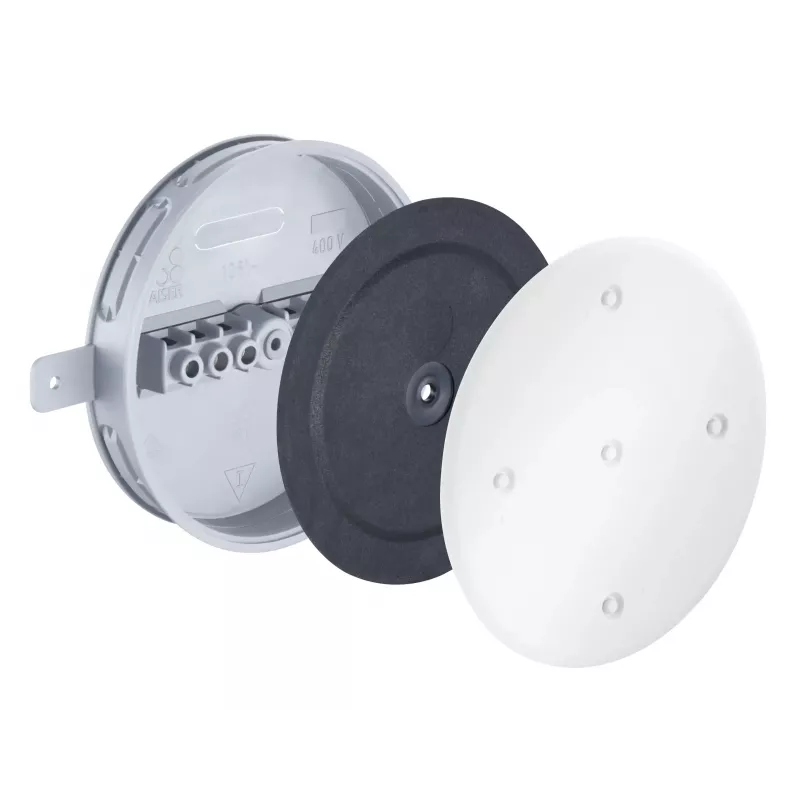

KAISER ELEKTRO uppoasennus-haaroitusrasia 1081-05

The KAISER ELEKTRO Flush-Mounted Junction Box 1081-05 is a high-quality polypropylene junction box designed for flush mounting in solid walls and masonry. It provides reliable cable distribution and connection points in electrical installations, meeting DIN EN 60670-1 standards.

Advantages

Halogen-free and flame retardant for enhanced safety. Compact design with 8 M20 knockouts offers flexible cable entry. Suitable for indoor use with IP20 protection.

Suitable for

• Flush-mounted junction boxes in solid walls
• Electrical distribution and connection points
• Installations requiring halogen-free materials

Key specifications

• Material: Polypropylene (PP)
• Outer Diameter: 70 mm
• Depth: 45 mm
• Number of Entries: 8
• Entry Size: M20
• Protection Class: IP20
• Rated Insulation Voltage: 400 V
• Max. Conductor Cross-Section: 2.5 mm²
• Colour: Grey
• Temperature Resistance: -5°C to +60°C
• Mounting Type: Screw mounting
• Standard: DIN EN 60670-1

Recommendations

For optimal installation, use compatible terminals and covers (sold separately). Ensure proper cable entry knockout selection.
