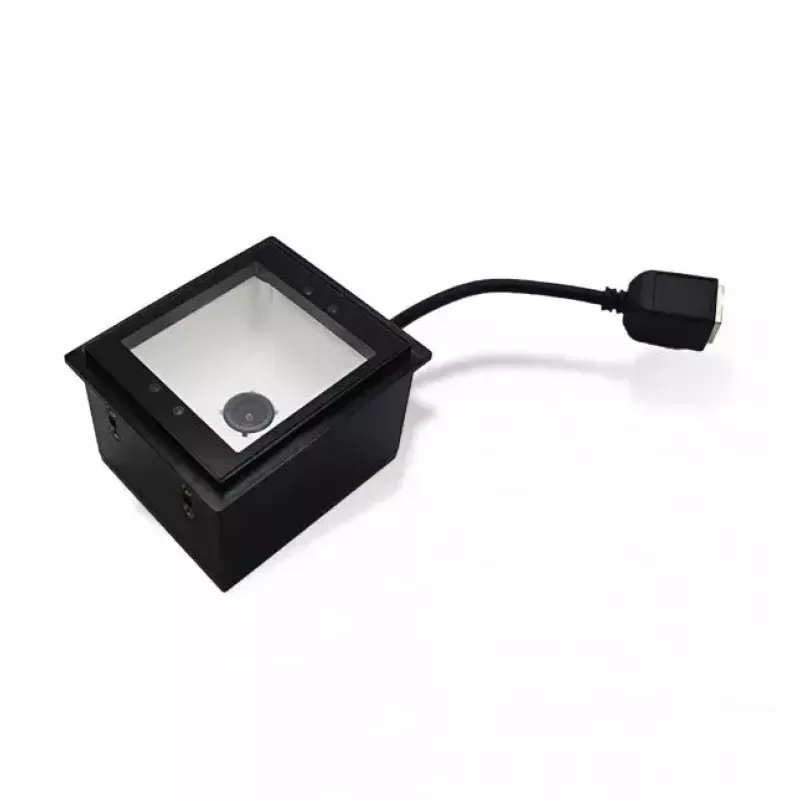

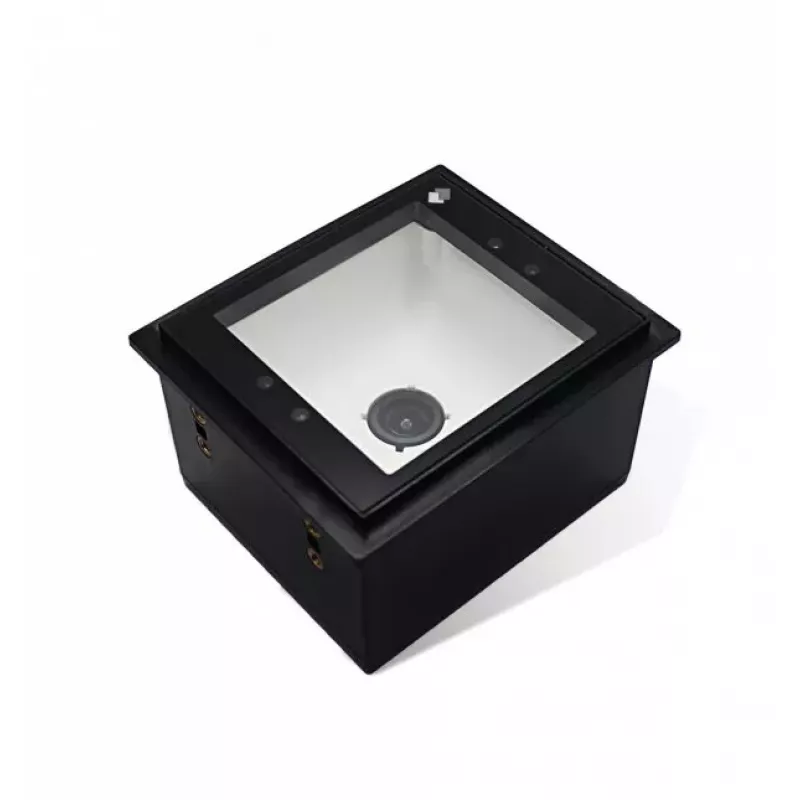

Kiinteä viivakoodinlukija Newland FM3080 Hind 1D/2D CMOS musta

The Newland FM3080 Hind is a fixed 1D/2D CMOS barcode reader designed for kiosk and countertop integration. Its large, anti-reflective scan window and sixth-generation UIMG® CPU-based imaging provide reliable capture of on-screen and printed barcodes, including codes with large data payloads. The unit offers wired connectivity (including RS-232 with supplied cable and multi-plug adapter), compact dimensions for minimal footprint, and IP65 protection against dust and water.

Advantages

The FM3080 Hind combines fast on-screen barcode capture with customizable visual feedback via up to four LED colors in the white scan window. A compact housing (78.7 x 67.7 x 47.5 mm) and low weight make it suitable for tight kiosk or POS installations. IR and ambient light sensors improve activation sensitivity, and an anti-reflection coating on the underside of the glass reduces glare for more consistent reads. The device supports both 1D and 2D symbologies and includes data formatting options.

Suitable for

• Self-service kiosks and information terminals
• POS counters where mobile and paper barcodes are scanned
• Ticketing and access control applications
• Retail and inventory workflows requiring compact fixed scanners

Key specifications

• Scanner type: 1D/2D fixed mounted
• Sensor: CMOS, UIMG® 6th generation imaging
• Connectivity: Wired (RS-232 cable and multi-plug adapter included)
• Ingress protection: IP65 (dust and water resistant)
• Dimensions: 78.7 x 67.7 x 47.5 mm
• Weight: 0.132 kg
• Power: 5 V, 250 mA

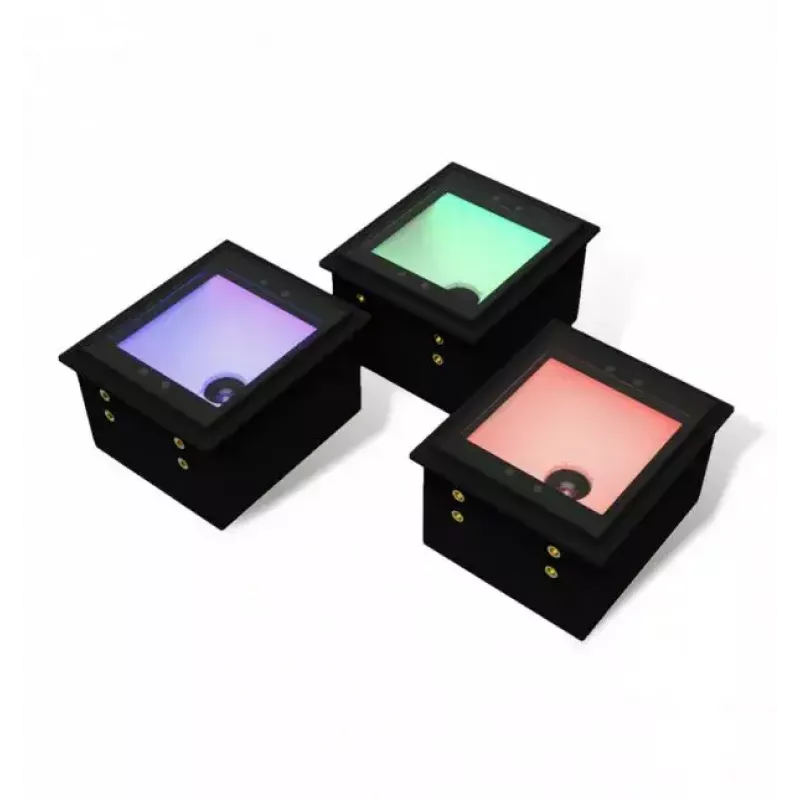

• LED indicator: up to 4 colors for visual feedback
• Supported barcodes: common 1D symbologies (EAN/UPC, Code 39/128, Interleaved 2 of 5, etc.) and 2D codes (QR, Data Matrix, PDF417, Aztec)

How to use

Mount the FM3080 Hind into the kiosk or counter opening and connect the supplied RS-232 cable or appropriate wired interface via the multi-plug adapter. Position the scanner so presented barcodes—printed or displayed on a mobile phone—fall within the large scan window. Configure the device using Newland configuration tools or provided data formatting settings to enable required symbologies and any host-specific output formatting. Program LED behavior as needed for success/failure indication or brand color matching.

Recommendations

For consistent reads of mobile phone barcodes, keep the scan window clean and free of scratches; enable the anti-reflection mode where available and adjust kiosk lighting to minimize extreme backlight or direct glare. Use the IR and light sensors to fine-tune activation sensitivity in the installation environment.
