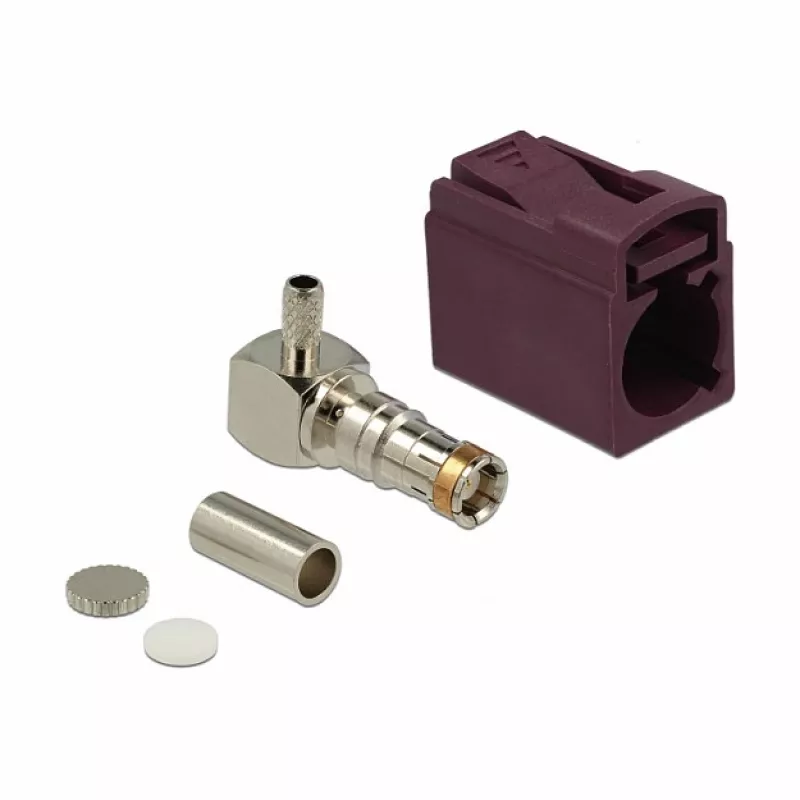

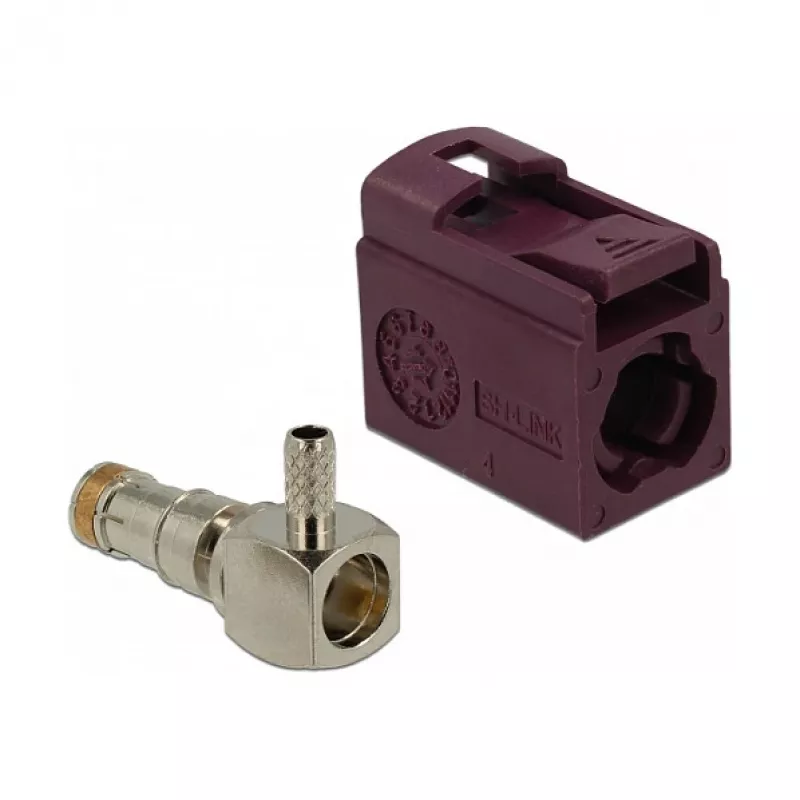

Koaksiaaliliitin DELOCK 89716 – FAKRA D pistoke, 90° kulma, 13,8 × 21,5 × 9,5 mm

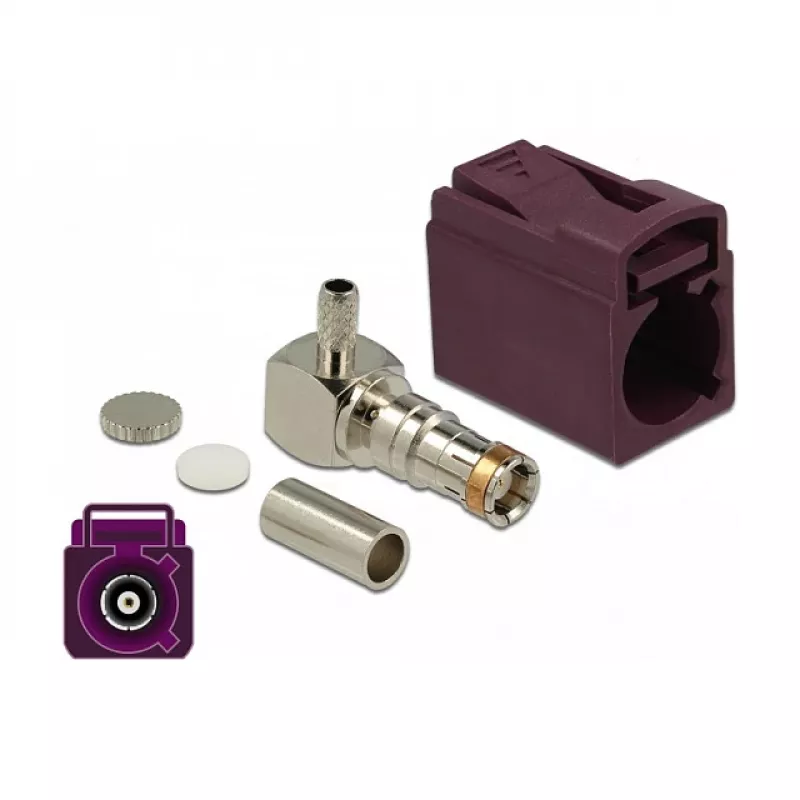

DELOCK 89716 is a right-angle coaxial connector with a FAKRA D male interface designed for compact RF installations. The connector measures 13.8 × 21.5 × 9.5 mm and provides a 90° orientation to facilitate space-saving panel or cable routing. Supplied in a polybag, this coaxial jack by DELOCK is suitable for automotive and radio frequency signal connections that require the FAKRA D mating standard.

Advantages

The 90° right-angle design reduces strain on cables and simplifies routing in confined spaces behind panels or inside enclosures. Built to match the FAKRA D interface, the connector ensures reliable mechanical alignment and electrical contact with compatible counterparts. Its compact footprint makes it suitable for installations where body depth and clearance are limited, while the male contact configuration supports standard RF mating procedures.

Suitable for

Key specifications

How to use

Align the FAKRA D male connector with the corresponding female socket and push until the mechanical latch engages to ensure a secure connection. The right-angle orientation should face the desired cable routing direction to minimise bending stress. For panel mounting, verify clearance around the connector dimensions of 13.8 × 21.5 × 9.5 mm and secure any cable clamps as required to prevent movement or load on the connector.

Recommendations

Ensure compatibility with the mating FAKRA D connector before installation. Avoid excessive torque or bending on the cable near the connector; maintain strain relief and protect the interface from moisture and contaminants when used in exposed environments.
