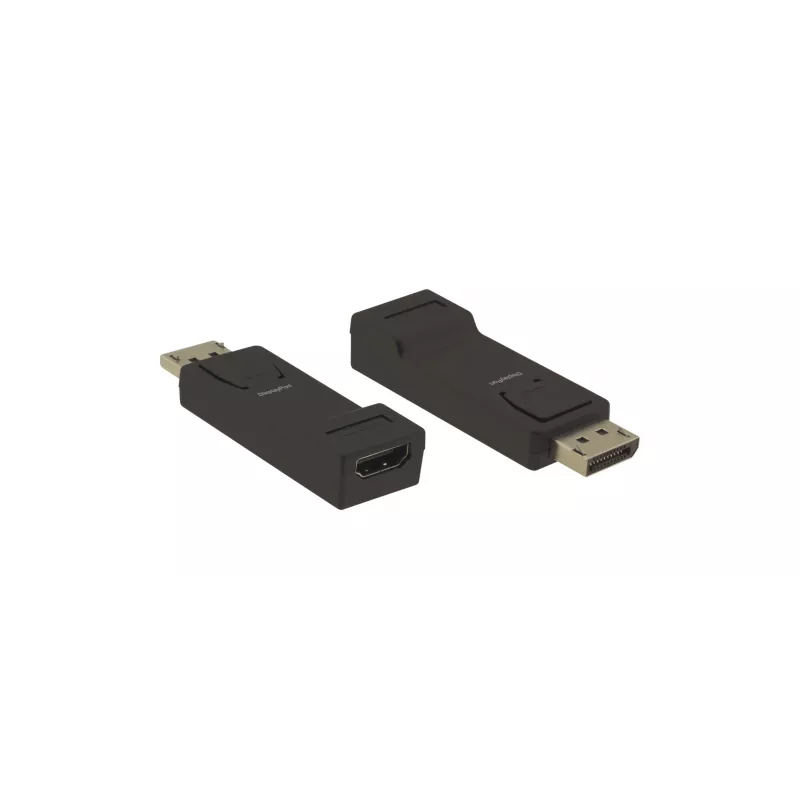

Kramer AD-DPM/HF/RING videosovitin DisplayPort uros - HDMI naaras 1080p 99-9191027

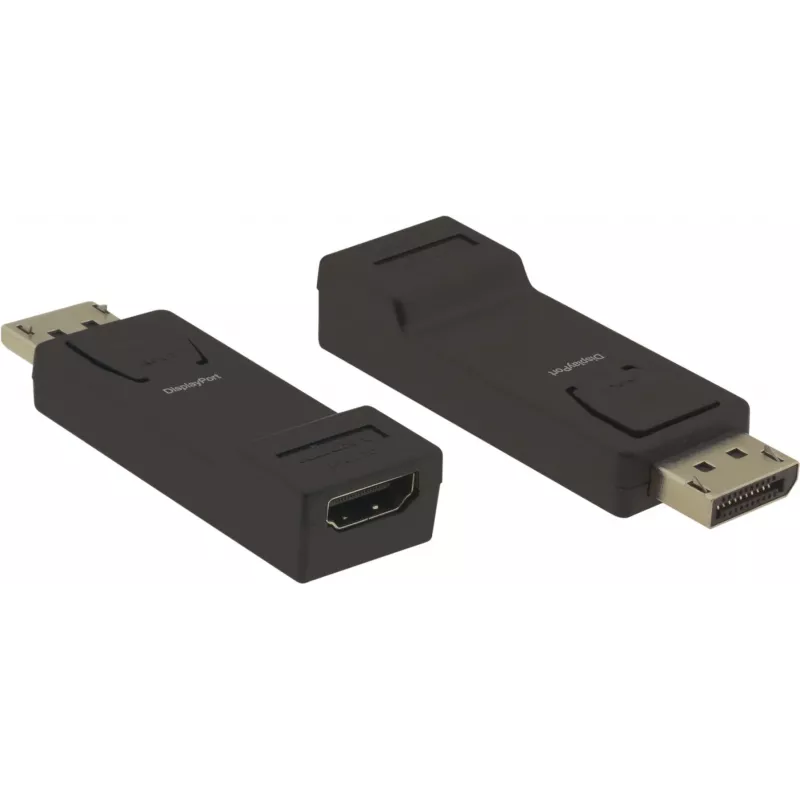

Connect a DisplayPort source to an HDMI display without replacing existing cables. The Kramer AD-DPM/HF/RING converts a DisplayPort male connector to an HDMI female port, supporting Full HD 1080p video and pass-through audio. Its passive design requires no external power, and the gold-plated connectors resist corrosion for reliable signal transfer. The adapter is engineered to work with the Kramer K-Lock Adapter Ring System for secure installations.

Who is it for

Integrators and users who need to link a laptop, desktop, or graphics card with DisplayPort output to an HDMI monitor, projector, or TV. It suits boardrooms, classrooms, and digital signage where cable management and locking connectors are required.

Main features

• DisplayPort male to HDMI female adapter
• Supports resolutions up to 1920 x 1080 (1080p Full HD)
• Passive, bus-powered operation – no external power needed
• Audio pass-through for HDMI
• HDCP compliant
• Gold-plated connectors for optimal signal quality
• Designed for Kramer K-Lock Adapter Ring System
• Plug and play – no drivers required
• High-grade plastic housing in black

Specifications

• Input: DisplayPort male
• Output: HDMI female
• Maximum resolution: 1920 x 1080 (1080p)
• Bandwidth: up to 5.4 Gbps
• Compatibility: DisplayPort 1.1a
• Connector plating: gold
• Housing material: high-grade plastic
• Colour: black

Tips

For fixed installations, pair this adapter with the Kramer K-Lock ring to prevent accidental disconnection. The adapter is passive, so it will not convert signal types; ensure your source outputs a compatible DisplayPort signal.
