Kramer MegaTOOLS TP-780T HDBaseT lähetin HDMI:lle, audiolle ja IR:lle jopa 70 m

Transmit 4K@60Hz (4:2:0) video, audio and bidirectional IR up to 40 m over a single Cat cable with the Kramer MegaTOOLS TP-780T HDBaseT transmitter. For 1080p signals, extend up to 70 m. HDCP 2.2 compliance and 10.2 Gbps data rate ensure compatibility with modern sources and displays.

Overview

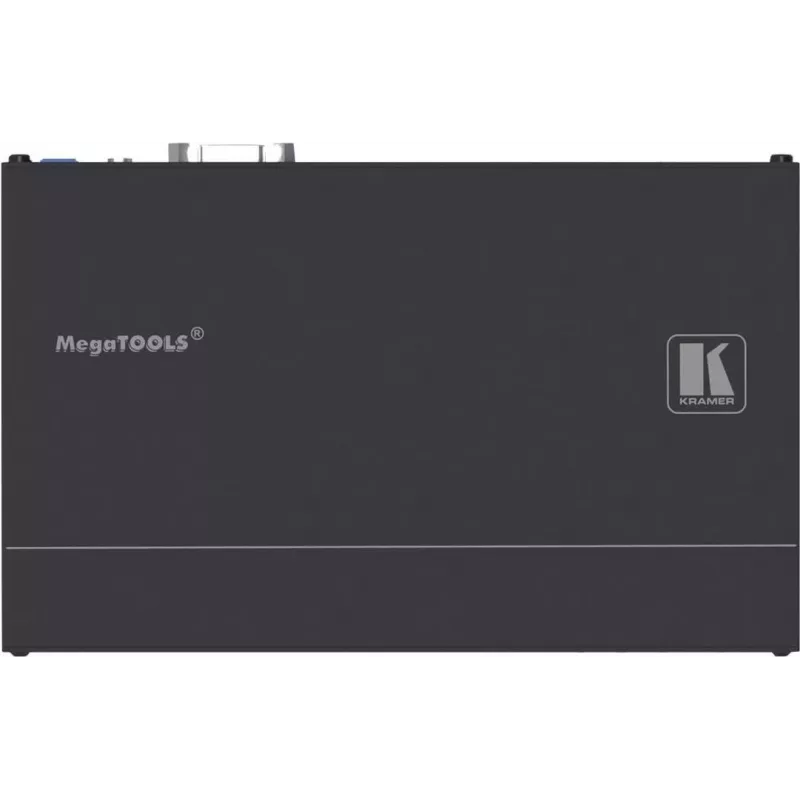

The TP-780T is a compact HDBaseT transmitter from Kramer's MegaTOOLS series. It converts HDMI input to HDBaseT for long-distance extension over twisted pair. The unit supports Power over Cable (PoC), receiving power from a compatible receiver, eliminating the need for a local power supply. EDID pass-through ensures optimal resolution negotiation. Control via RS-232 is possible through the HDBaseT link.

What stands out

• Extends 4K@60Hz (4:2:0) up to 40 m and 1080p up to 70 m

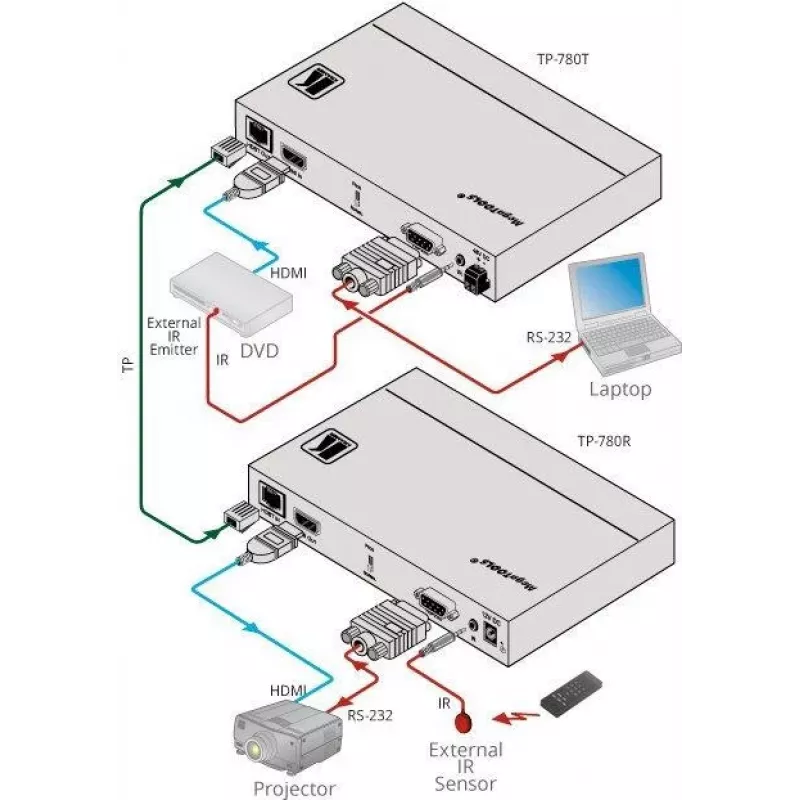

• Supports HDMI, audio, and bidirectional IR over a single cable
• HDCP 2.2 compliant with 10.2 Gbps data rate
• Power over Cable (PoC) from receiver
• EDID pass-through for plug-and-play operation
• MegaTOOLS enclosure for desktop or rack mounting (with optional adapter)

Technical details

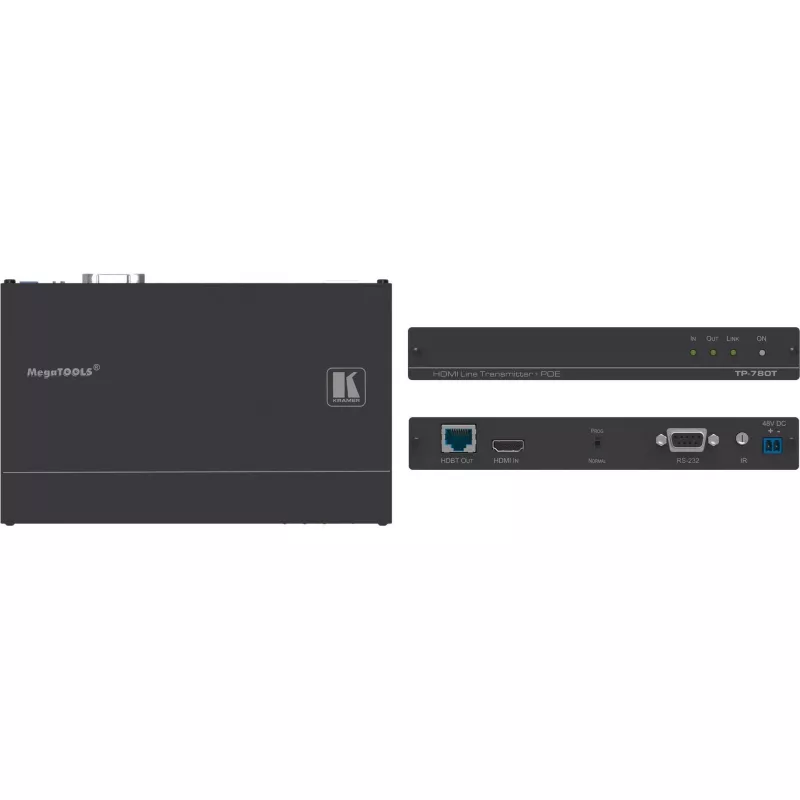

• Input: 1x HDMI, 1x IR (3.5 mm jack)
• Output: 1x HDBaseT (RJ-45), 1x IR (3.5 mm jack)
• Max resolution: 4K@60Hz (4:2:0)
• Max data rate: 10.2 Gbps
• HDCP version: 2.2
• Power: PoC from receiver
• Control: RS-232 via HDBaseT
• Colour space: YUV 4:2:0, RGB
• Audio formats: LPCM, Dolby Digital, DTS

Our verdict

The TP-780T is a reliable choice for professional AV installations needing long-distance HDMI extension with IR control and power over cable.
