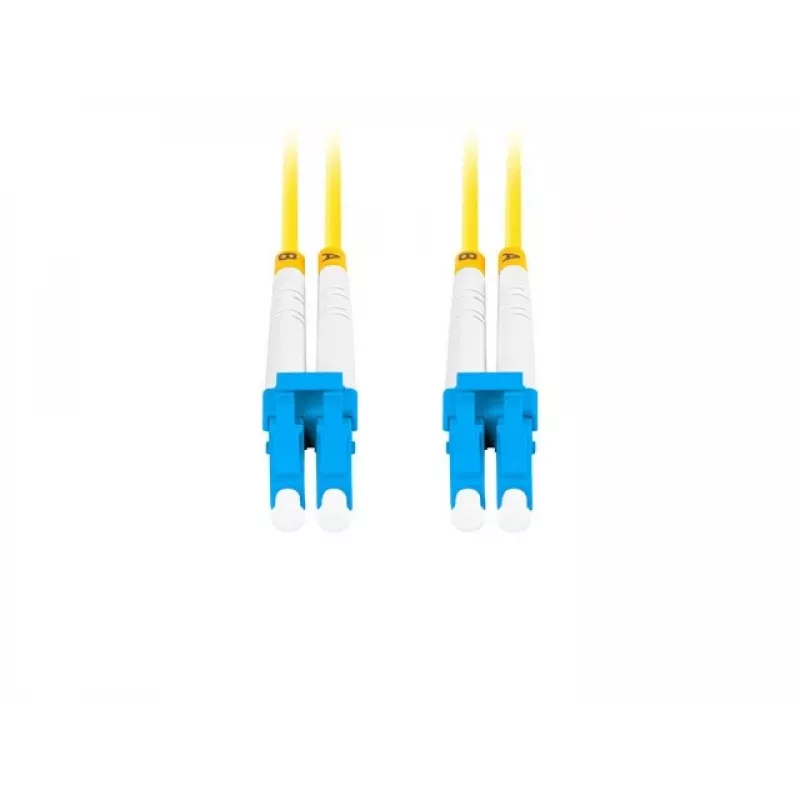

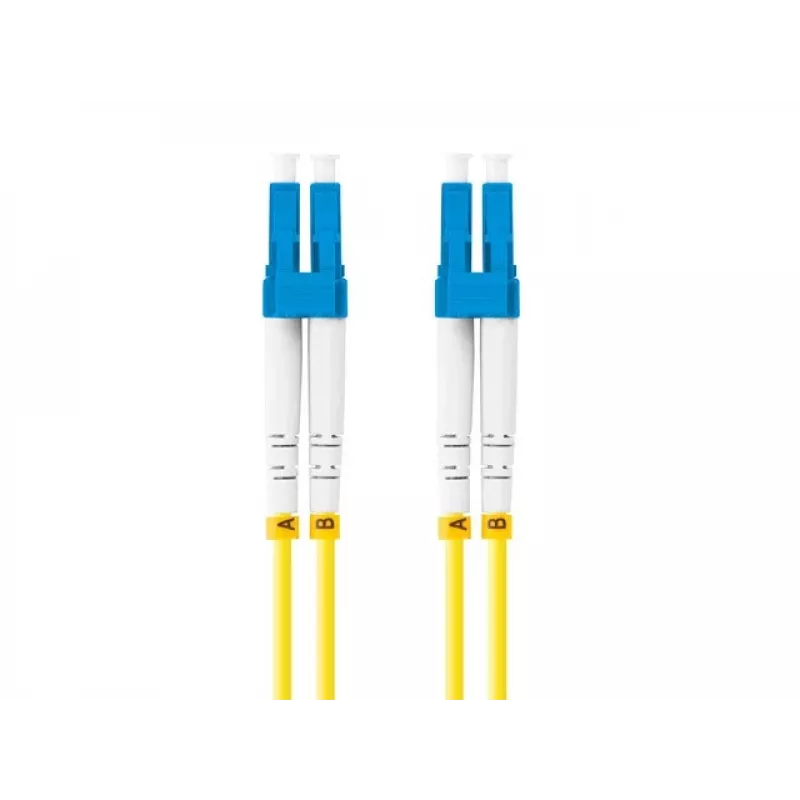

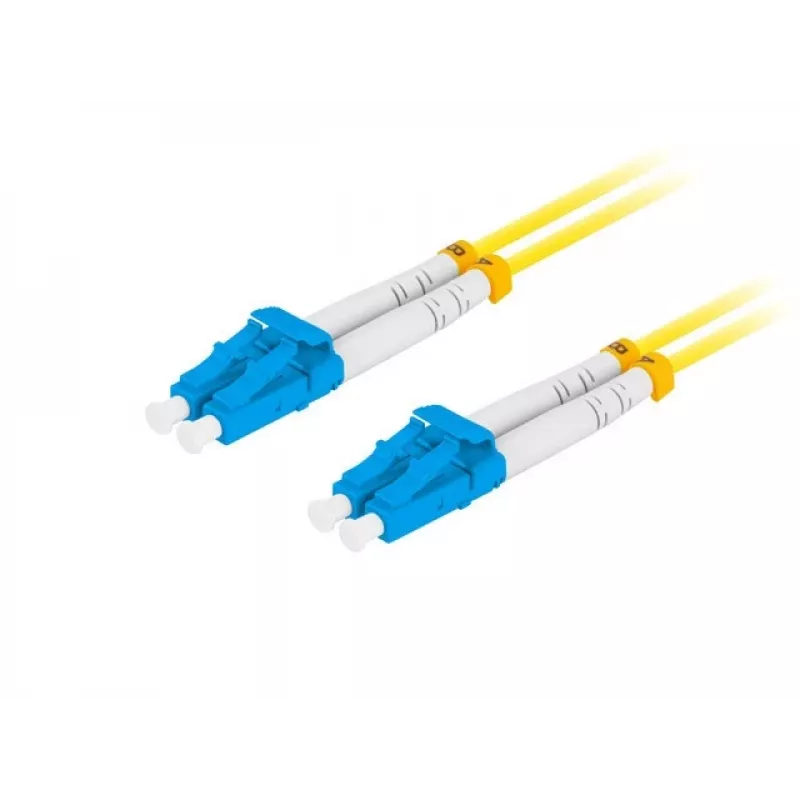

Kuitukaapeli LANBERG FO-LULU-SD11-0030-YE, 3 m, G.657.A1, LC–LC, keltainen

LANBERG FO-LULU-SD11-0030-YE is a 3 m single-mode fibre optic patch cable with LC to LC connectors and G.657.A1 fiber. The cable has a 3.0 mm duplex construction with LSZH jacket in yellow, offering low bending loss and suitability for high-density rack, server room and data centre links.

Advantages

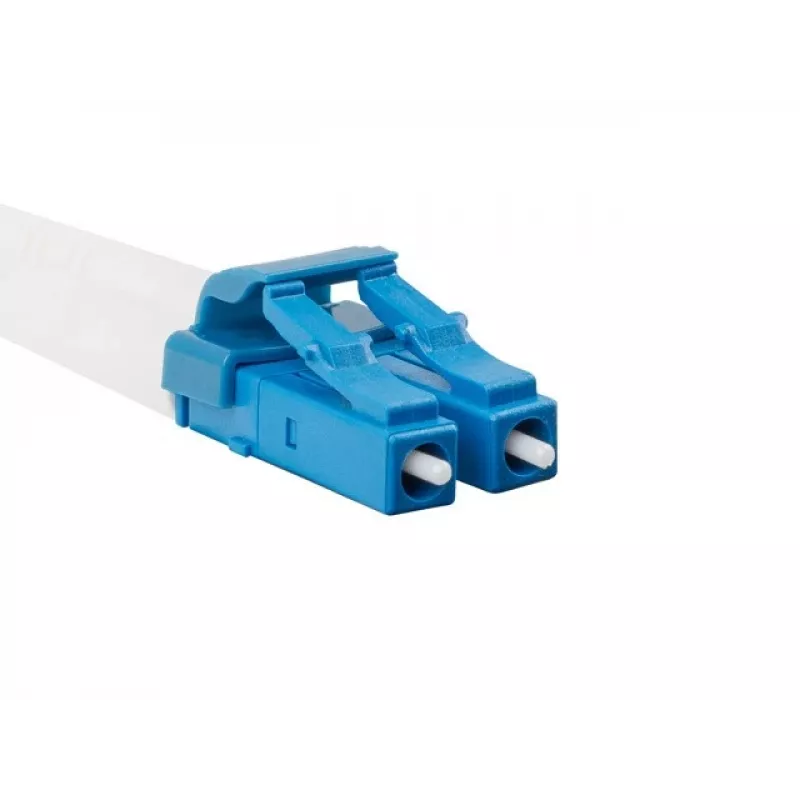

The LC–LC connector pair with UPC polishing ensures low insertion loss and stable return loss performance. G.657.A1 fibre provides improved bend tolerance compared with standard single-mode fibres, while the LSZH coating reduces hazardous smoke in case of fire. The yellow jacket enables quick visual identification in multi-cable environments.

Suitable for

Key specifications

How to use

Connect each LC connector to the corresponding LC port on the transceiver, switch or patch panel, ensuring correct orientation and clean connector endfaces. Route the cable along cable management paths, avoid sharp bends and maintain the minimum bend radius of 10 mm. For best performance, keep connectors capped when not in use and clean with appropriate fibre cleaning tools before mating.

Recommendations

Use this single-mode LC–LC patch cable for short to medium-length optical links inside racks and cabinets. Avoid bending below the specified minimum radius and protect connectors from dust and mechanical stress to preserve low insertion and return loss.
