Kuitukaapeli LogiLink 2 m LC – LC OM4 violetti

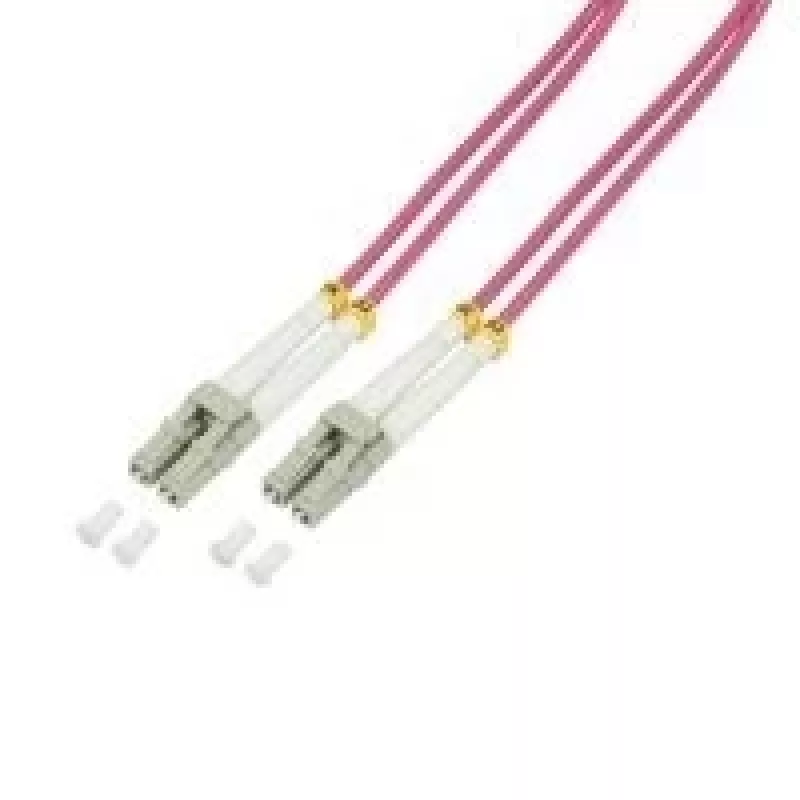

The LogiLink 2m LC - LC OM4 fibre optic duplex jumper is a 2.0 m multimode patch cable with a 50/125 µm core (I-VH 2G OM4) and LSZH jacket in violet. It supports duplex LC connectors on both ends and is designed for high-speed data links up to 40 Gbit/s over distances up to 125 m. Each cable is delivered with a measurement protocol and meets DIN EN 50173-1 and IEC/ISO 11801 standards.

Advantages

This OM4 fibre jumper provides low attenuation and high bandwidth for multimode links, enabling reliable transmission at high data rates. The LSZH outer jacket reduces harmful smoke and toxic emissions in case of fire, and the violet colour helps with fast identification in dense cabling environments. Supplied with an individual measurement protocol, the cable allows verification of quality and performance.

Suitable for

• Data centre interconnects and rack-to-rack links
• High-speed network uplinks and switches
• Multimode fibre backbone installations supporting 10G–40G

Key specifications

• Length: 2.0 m
• Fibre type: Multimode I-VH 2G 50/125 µm (OM4)
• Connectors: LC — LC duplex
• Jacket: LSZH, violet, Ø 3.0 mm
• Application range: up to 40 Gbit/s / 125 m
• Standards: DIN EN 50173-1, IEC/ISO 11801
• Quality: delivered with measurement protocol

How to use

Inspect both LC connectors and fibre ends for contamination before installation and clean if necessary. Route the cable through cable management to avoid tight bends; maintain a bend radius according to manufacturer recommendations for multimode fibre. Insert LC connectors into the corresponding LC ports until they click to ensure secure connection. Verify link performance with appropriate test equipment if required.

Recommendations

For best results, avoid excessive bending or compression of the 3.0 mm LSZH cable, keep connector endfaces clean, and use the included measurement protocol to validate installation performance, especially for 10G–40G links in data centres.
