KVM-kytkin ROLINE 1 käyttäjä 4 PC:tä DisplayPort USB-keskitin

The ROLINE 1 User 4 PCs DisplayPort with USB Hub KVM switch lets a single user control up to four computers from one USB console (DisplayPort monitor, USB keyboard and USB mouse). It supports DisplayPort video with a maximum nominal resolution of 2560 x 1600, 7.1 channel high-definition audio passthrough and does not require software. The unit includes an integrated USB 2.0 hub to share USB devices among connected computers and is compatible with Windows.

Advantages

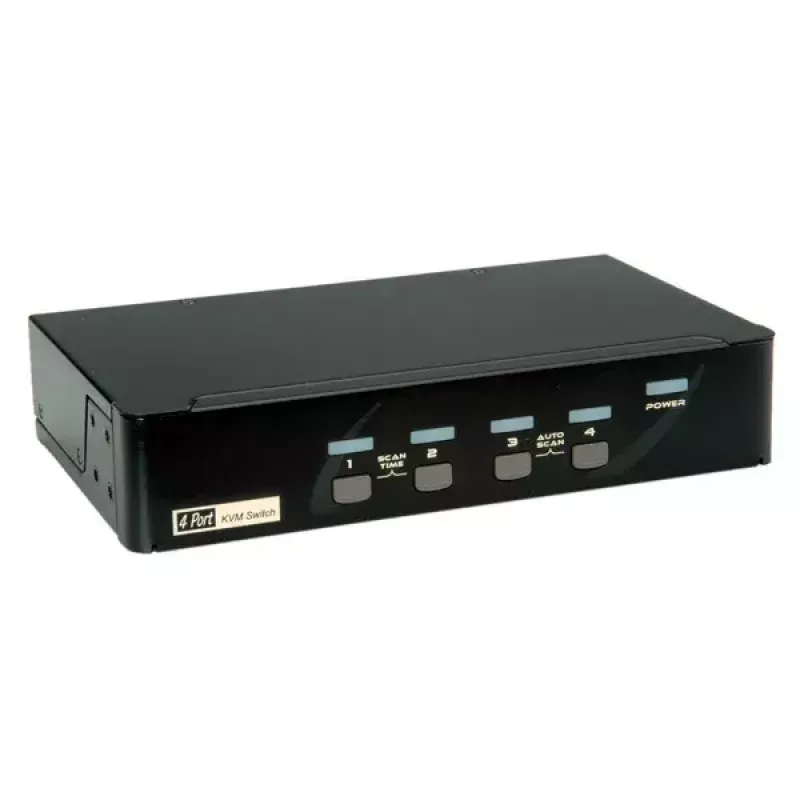

The ROLINE KVM switch centralizes control of multiple PCs while preserving full DisplayPort video quality and multichannel audio. Easy computer switching is available via front-panel push buttons or hot-key commands, and an auto-scan mode cycles through connected systems with selectable intervals. The built-in 2-port USB 2.0 hub extends device sharing to two or four systems without additional adapters.

Suitable for

• Workstations requiring control of multiple PCs from a single console
• Environments that need DisplayPort video up to 2560 x 1600
• Setups that require sharing USB peripherals (printers, external drives, webcams)
• Windows-based systems where software installation is restricted or undesired

Key specifications

• Brand: Secomp (ROLINE)
• Model / MPN: 14.01.3329
• EAN: 7611990197873
• Controlled computers: 4
• Console ports: DisplayPort (video), USB (keyboard & mouse)
• Maximum resolution (nominal): 2560 x 1600
• Audio: 7.1 channel HD audio support
• USB hub: integrated 2-port USB 2.0
• Product colour: Black
• Operating system support: Windows (no software required)

How to use

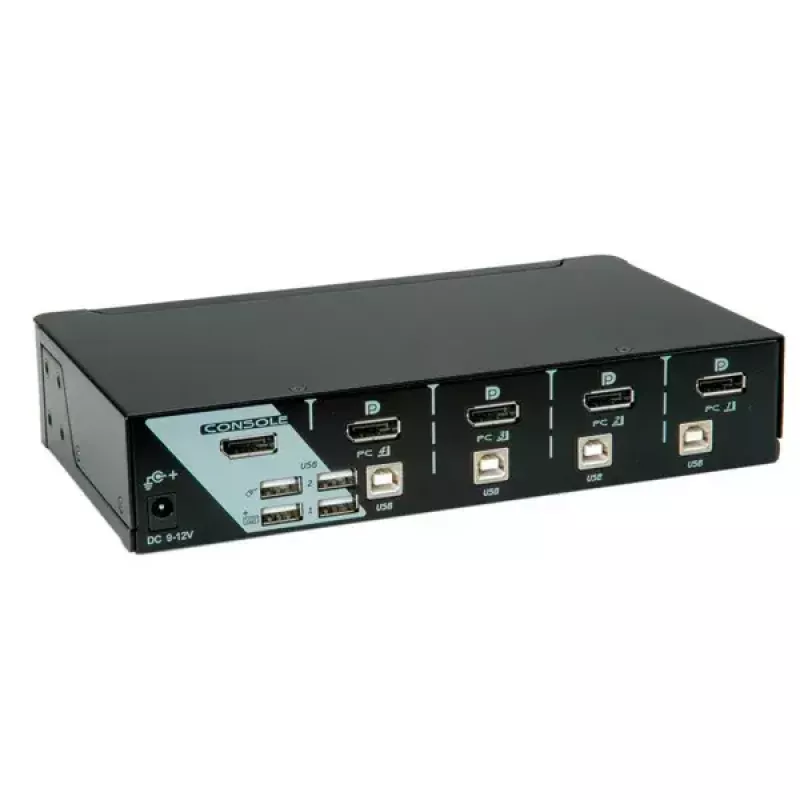

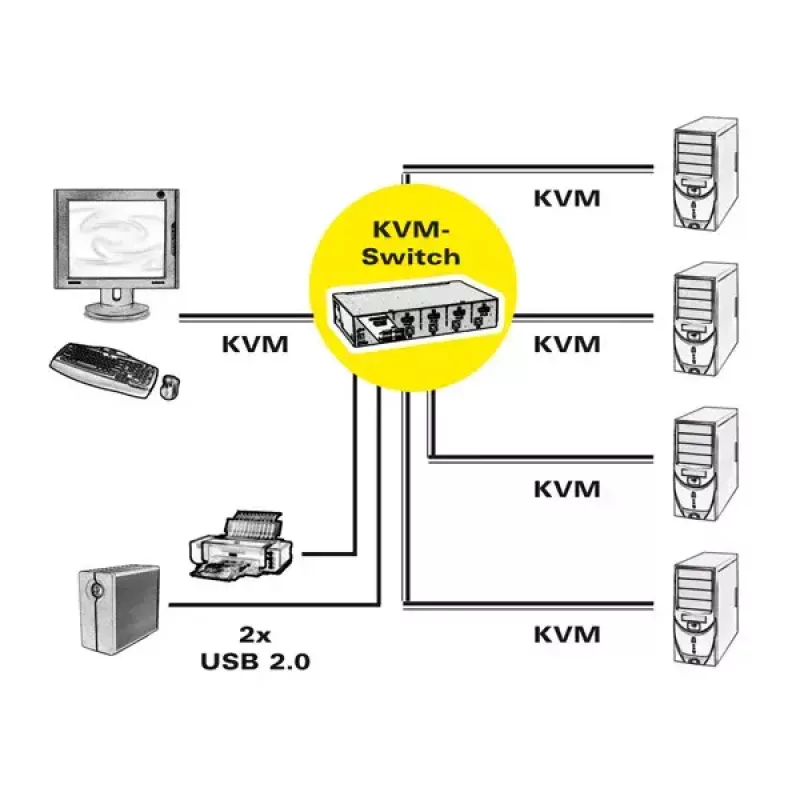

Connect the DisplayPort monitor and USB keyboard and mouse to the KVM console ports. Attach up to four computers to the corresponding DisplayPort and USB ports on the switch. Use the front-panel push buttons or hot-key shortcuts to select the active computer. Optionally enable auto-scan and set the desired scan interval to cycle through systems automatically. Plug-and-play operation means no driver or software installation is required for typical Windows setups.

Recommendations

For best video performance, use quality DisplayPort cables rated for the target resolution. When sharing USB storage devices, ensure only one host accesses the device at a time to prevent data corruption. Verify Windows versions for full compatibility before deployment.
