Kytkentäpaneeli DeLOCK 19" D-Type 12 porttia työkaluton harmaa

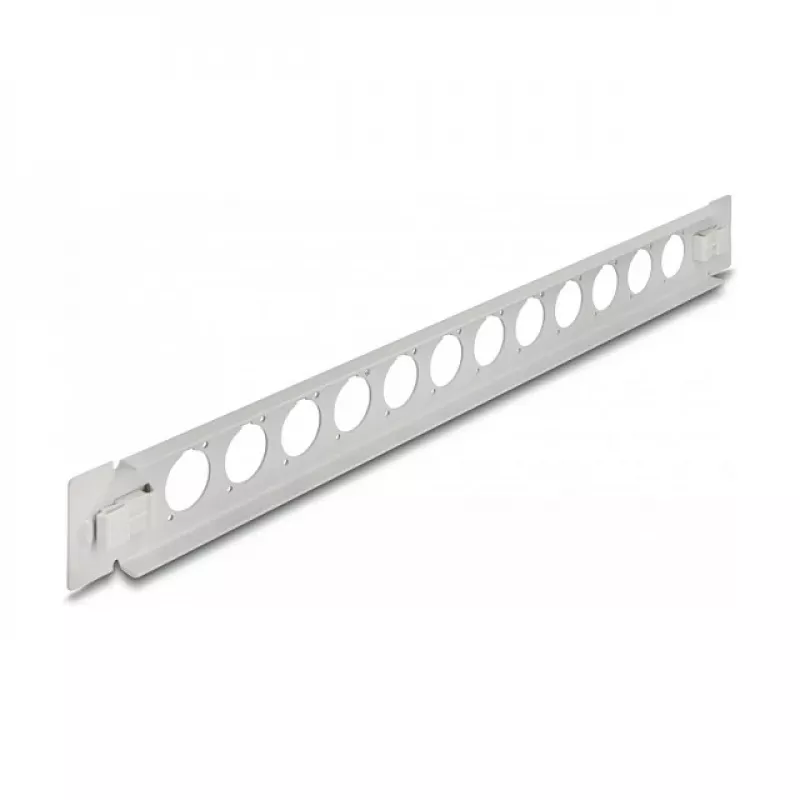

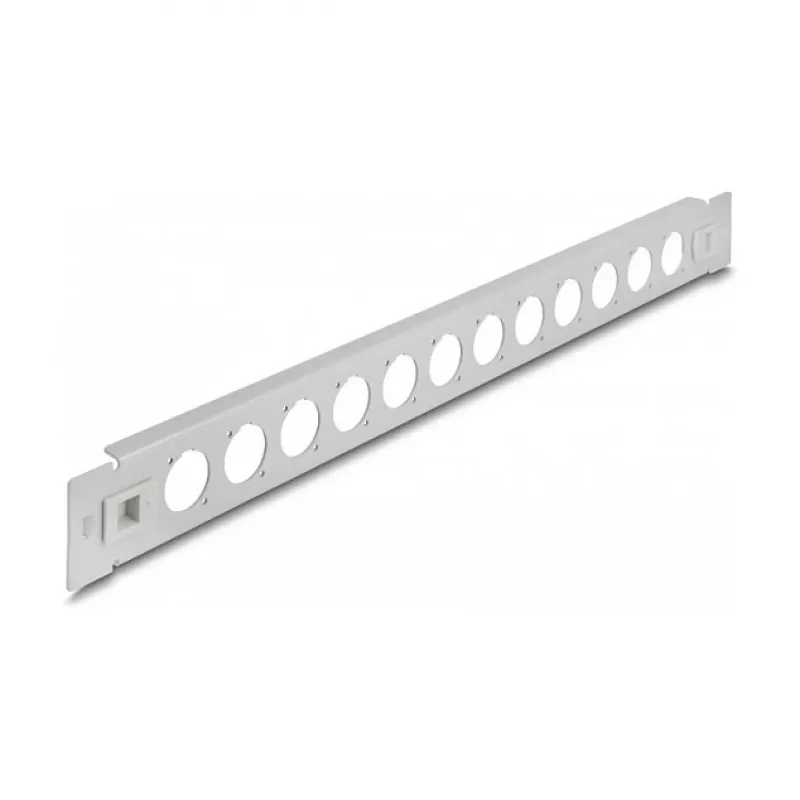

The DeLOCK 19" D-Type 12 port patch panel is designed for mounting in a standard 19" rack. With dimensions matching rack standards, it holds up to twelve D-type modules and helps organize network cabling in structured cabling systems. The housing is metal and finished in grey.

Advantages

The panel accepts 12 D-type modules and fits standard 19" racks. Its tool-free installation mechanism uses integrated mounting clips that are pushed outwards to lock the unit into a network cabinet, allowing quick installation or removal without tools. The metal construction provides durable support for network modules and cabling.

Suitable for

• Structured cabling in server rooms and network racks
• Mounting D-type connector modules (up to 12 positions)
• Small to medium enterprise network patching panels

Key specifications

• Brand: DELOCK
• Model: 19" D-Type 12 port
• Ports: 12 D-type module positions
• Mounting: 19" rack compatible
• Installation: Tool-free with integrated mounting clips
• Colour: Grey
• Material: Metal housing
• MPN: 66902
• EAN: 4043619669028

How to use

Place the patch panel into the desired position in a 19" rack opening. Push the integrated mounting clips outwards until they engage with the cabinet rails to lock the panel in place. Install D-type modules into the available module positions as required, terminate and route cables according to your cabling plan, and verify connections after installation.

Recommendations

For reliable performance, mount the panel on a stable 19" rack and avoid overloading module positions. Follow standard cabling practices for cable management, strain relief, and labeling. Use appropriate tools only when working with individual module terminations if required; the panel itself does not require tools for mounting.
