Kytkentäpaneeli Trendnet TC-P08C6AS

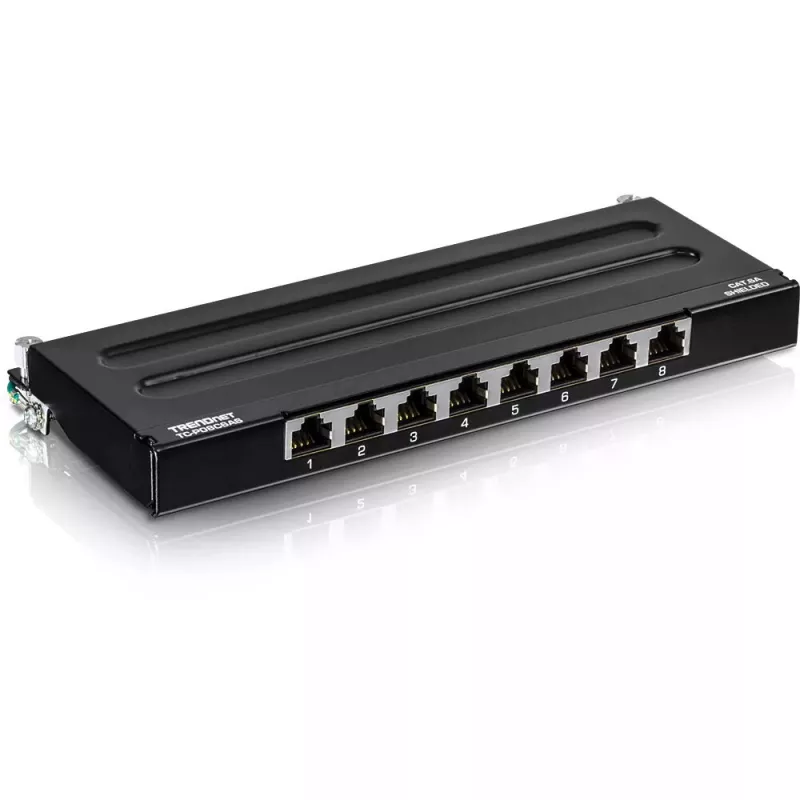

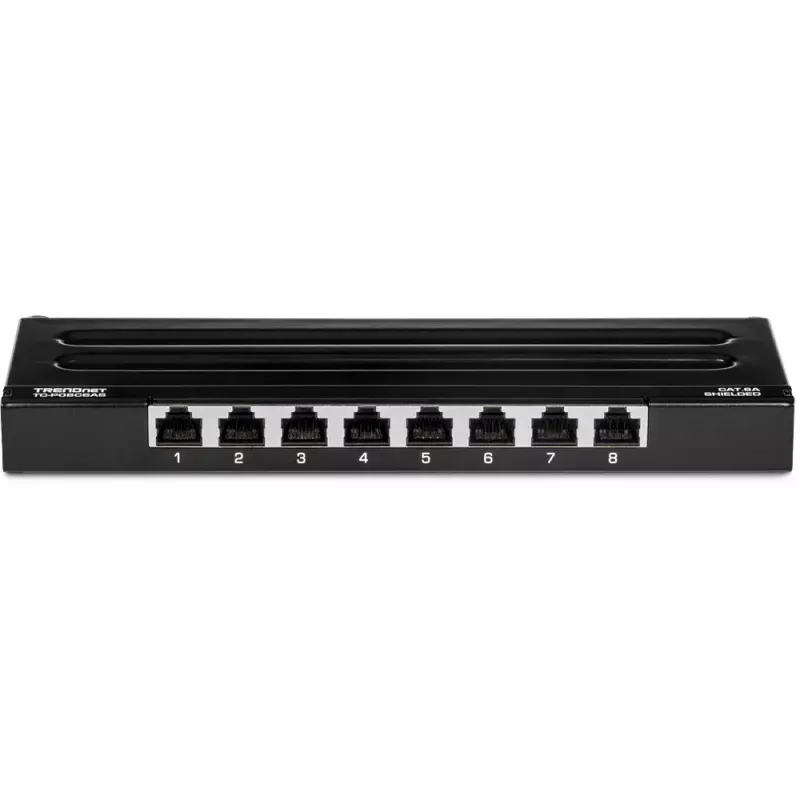

Trendnet TC-P08C6AS is an 8-port Cat6A shielded wall-mount patch panel designed for gigabit and 10G copper Ethernet networks. The compact 0.5U metal housing supports organized cable management and durable mounting for use in racks, cabinets, or on walls. This panel is compatible with Cat5e, Cat6 and Cat6A cabling and uses 110 IDC type terminal blocks for reliable connections.

Advantages

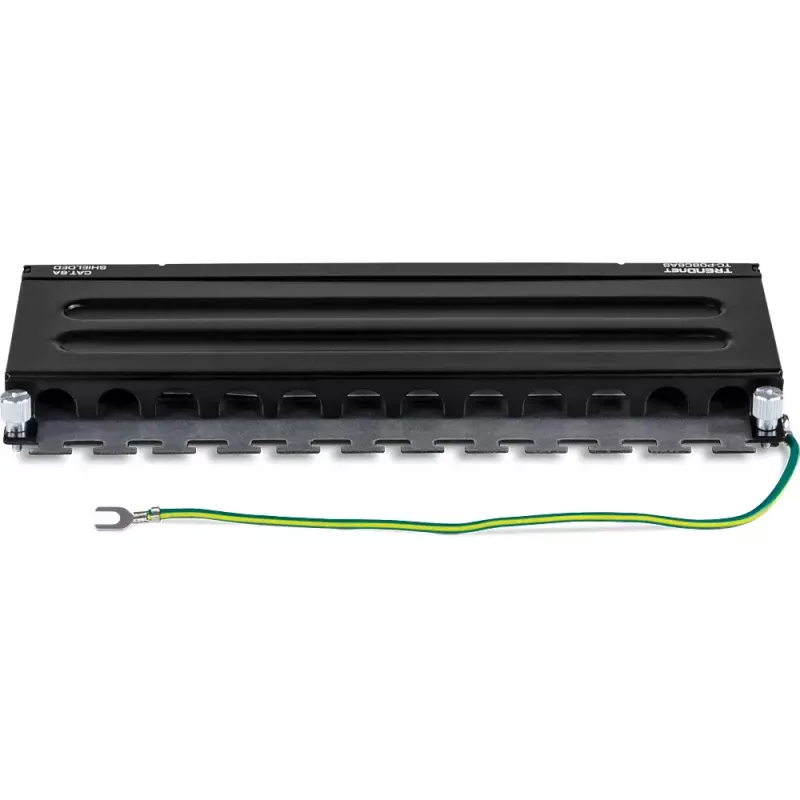

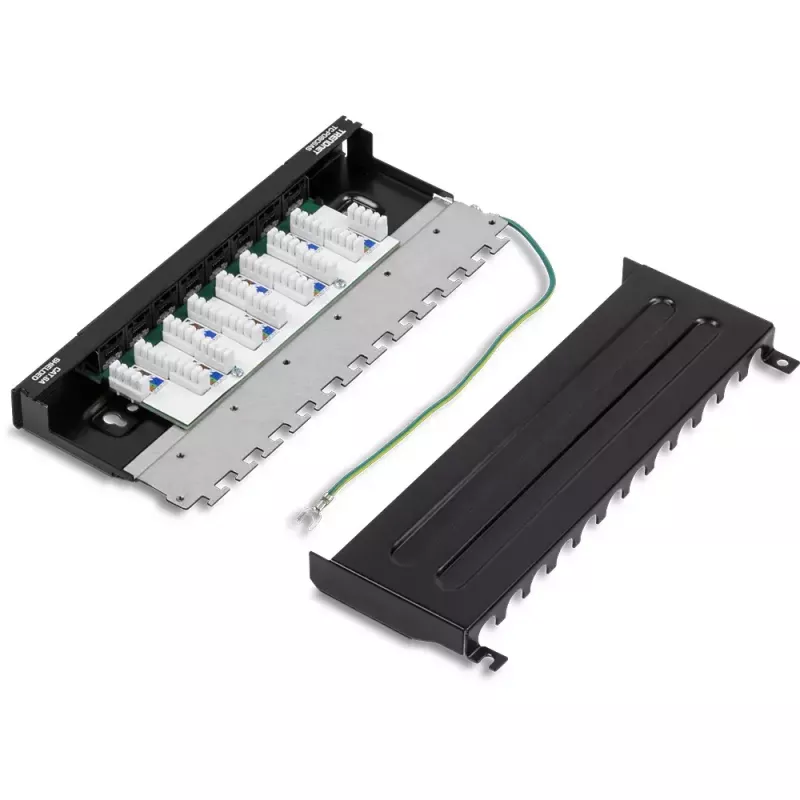

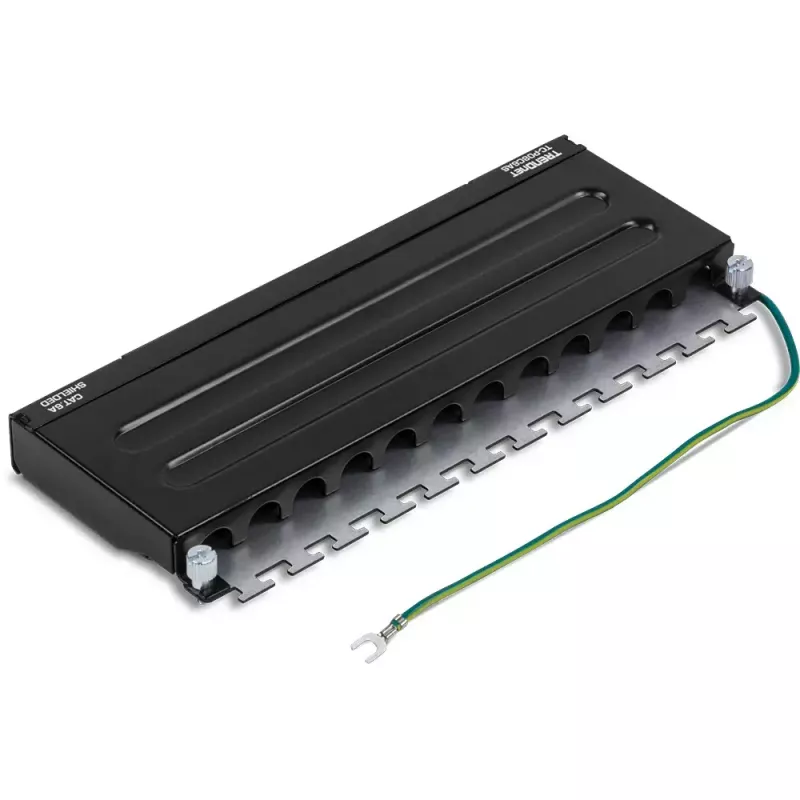

The patch panel supports 10G-ready performance over Cat6A cabling and provides a shielded design to reduce electromagnetic interference (EMI) and crosstalk. It features color-coded labeling for T568A and T568B wiring schemes and a 90° angle termination for neat installations. The metal housing is wall-mountable and includes an integrated cable management cover plate to separate and organize cables. It meets ANSI/EIA/TIA 568-B.2-1, ISO/IEC 11801, and EN50173-1 standards and operates in temperatures from -25° to 50° C (-13° to 122° F).

Suitable for

• Small office and home network patching
• Wall-mounted network points in commercial or residential buildings
• 10G-ready copper Ethernet connections using Cat6A cabling
• Structured cabling installations requiring shielded components

Key specifications

• Model: TC-P08C6AS
• Ports: 8
• Cabling compatibility: Cat5e, Cat6, Cat6A
• Shielding: Shielded metal housing

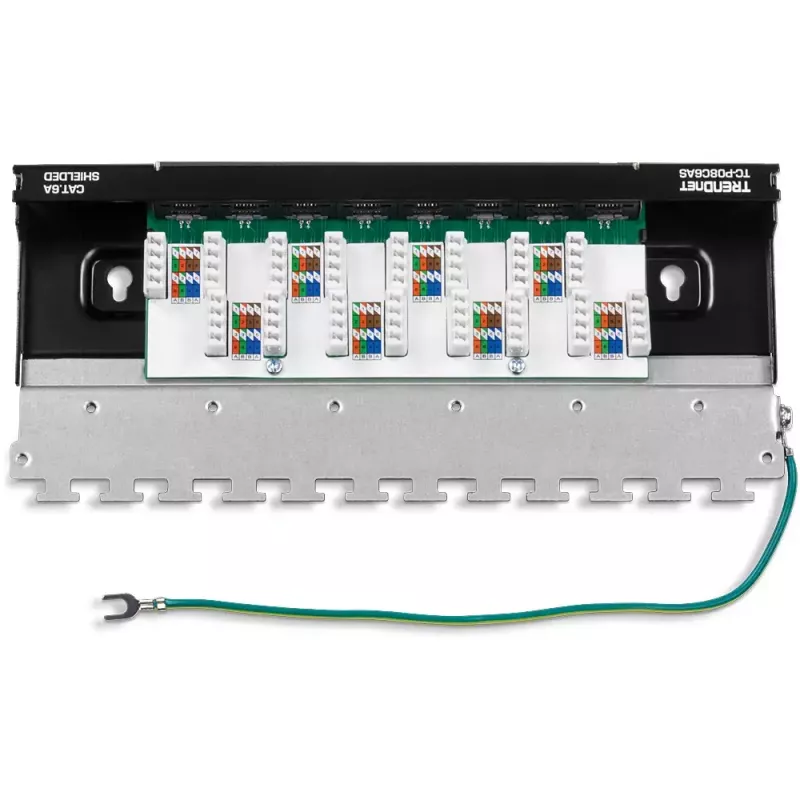

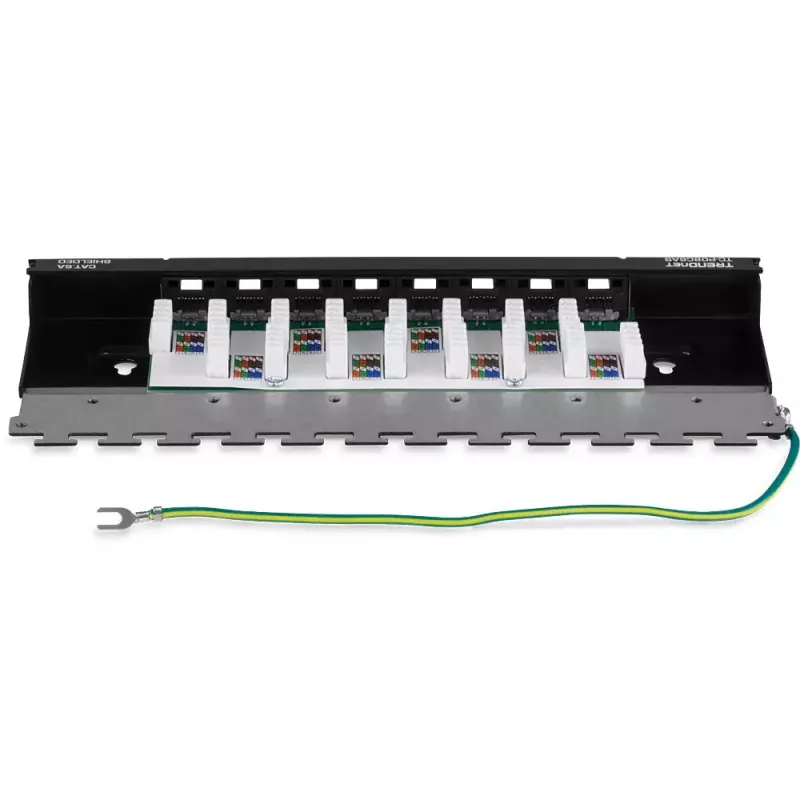

• Termination: 110 IDC type terminal blocks (use 110 or Krone tool)
• Wiring schemes: Color-coded for T568A and T568B
• Standards: ANSI/EIA/TIA 568-B.2-1, ISO/IEC 11801, EN50173-1
• Operating temperature: -25° – 50° C (-13° – 122° F)
• Form factor: Wall-mountable, 0.5U
• Colour: Black
• Weight: 0.474 kg

How to use

Mount the Trendnet TC-P08C6AS to a wall or within a rack space using appropriate screws and anchors. Terminate incoming shielded Cat6A (or Cat6/Cat5e) cables onto the 110 IDC terminal blocks following the color-coded T568A or T568B scheme. Use a 110 or Krone punch-down tool (TRENDnet TC-PDT sold separately is compatible) to secure the conductors. Close the integrated cable management cover plate to separate and route cables for a tidy installation. Connect patch cords from the front RJ45 ports to network switches or devices.

Recommendations

For optimal 10G performance, pair this shielded patch panel with shielded Cat6A cabling and ensure proper grounding of the shielded system. Use the correct punch-down tool and follow the selected wiring scheme consistently to maintain signal integrity.
