Langaton tukiasema Ubiquiti IsoStation AC 2,4 GHz 5 GHz

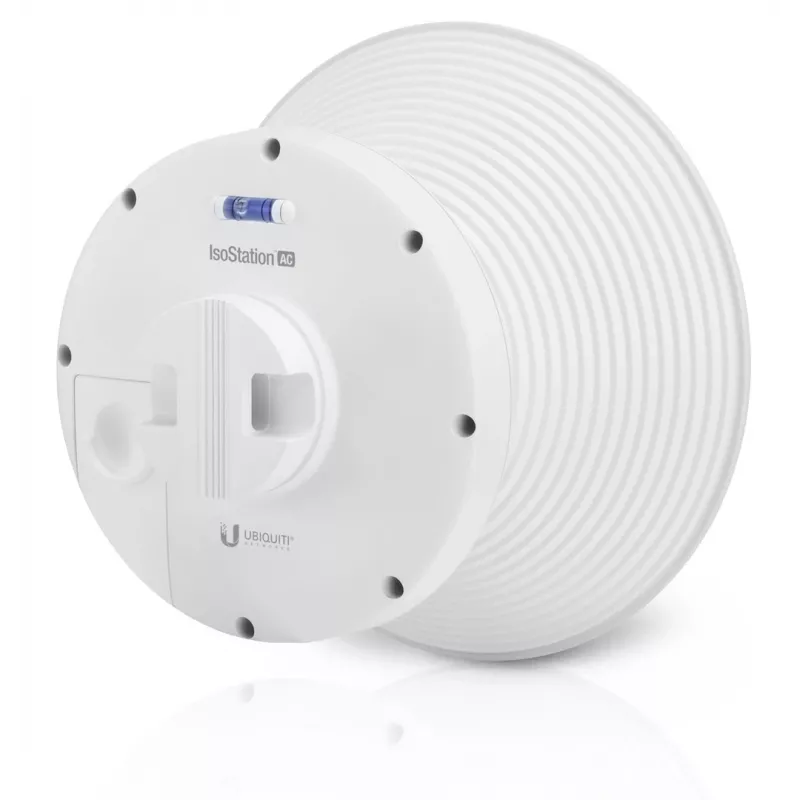

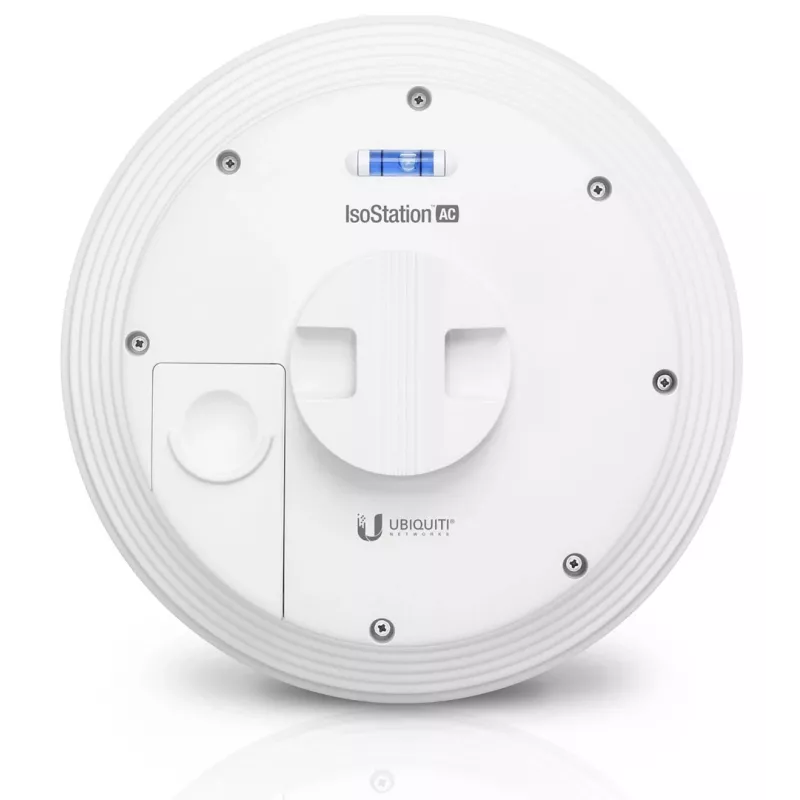

The Ubiquiti IsoStation AC is a weather-resistant wireless access point that supports both 2.4 GHz and 5 GHz bands and delivers up to 450 Mbps throughput. It features a die-cast aluminum base, interchangeable horn antennas for tailored beam shaping, Power over Ethernet (PoE) convenience, and a dedicated management Wi‑Fi radio for quick setup using a mobile device. airOS®8 provides airMAX® ac protocol support and real-time RF analytics for easier configuration and monitoring.

Advantages

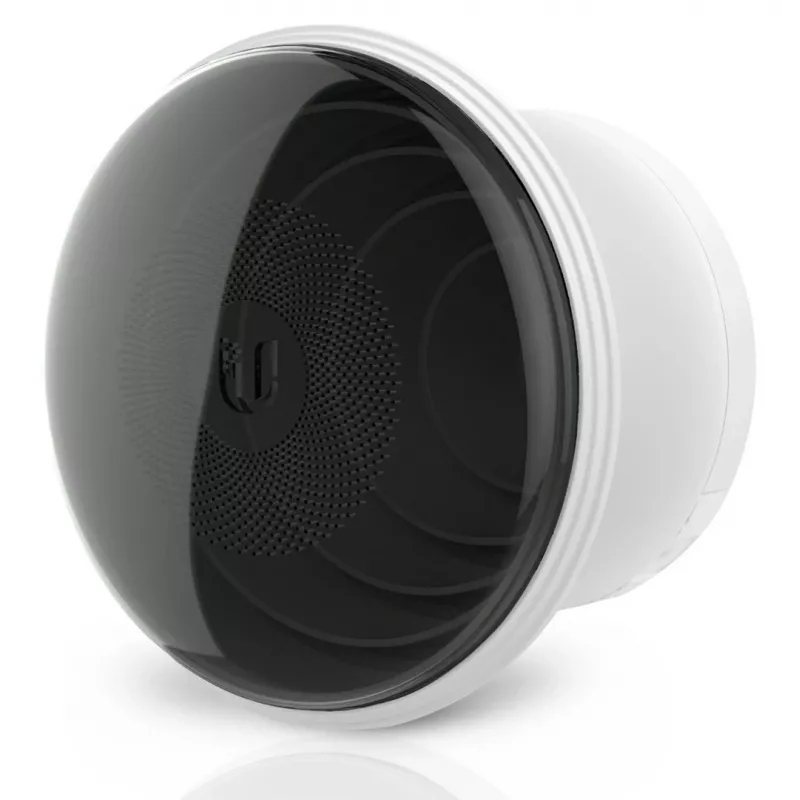

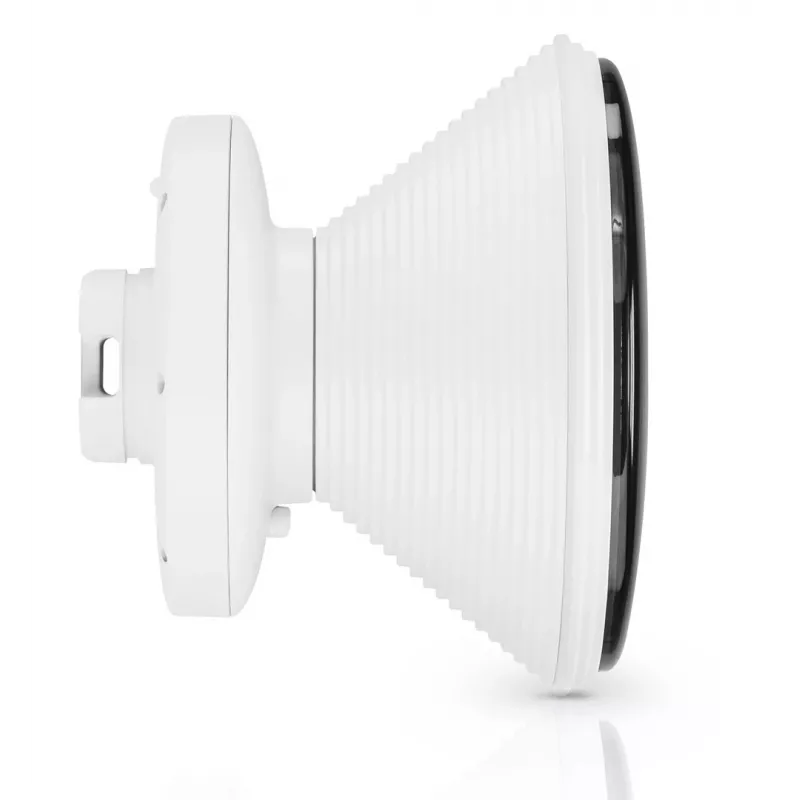

The modular horn antenna design enables flexible beam-shaping and high gain from a compact footprint, while improved noise immunity and asymmetrical/symmetrical horn options reduce side and back lobes for better co-location performance. High MAC efficiency yields near-maximum PHY throughput, and the integrated management Wi‑Fi radio simplifies commissioning. PoE and a rugged aluminum housing support straightforward outdoor installation.

Suitable for

• Point-to-multipoint and sector deployments requiring high-density co-location
• Outdoor wireless links in congested RF environments
• Installations needing compact, high-gain sector coverage
• Networks requiring easy setup via mobile device and remote management

Key specifications

• Model: IsoStation AC (IS-5AC)
• Wireless bands: 2.4 GHz and 5 GHz
• Maximum data transfer rate: up to 450 Mbps
• Ethernet LAN: 1 × RJ-45 (10/100/1000 Mbps)
• Construction: die-cast aluminum base; interchangeable horn antennas
• PoE support: Power over Ethernet for simplified installation
• Product colour: White
• Weight: 0.7257 kg

How to use

Mount the IsoStation AC outdoors on a suitable pole or structure using recommended mounting hardware, attach the appropriate horn antenna for the desired beamwidth (default symmetrical 30° or 45°, or asymmetrical 60°/90° as needed), and connect ground and power via a compatible PoE injector or PoE switch. Use the integrated management Wi‑Fi radio to access airOS®8 from a mobile device for initial configuration, set radio parameters and security (WPA2 supported), and perform alignment and testing with the RF analytics tools.

Recommendations

For high-density sector deployments, choose the symmetric 30° or 45° horn for cluster installations; for deployments needing reduced side lobes and lower back radiation in co-located environments, use the asymmetric 60° or 90° horn. Ensure proper grounding and follow local regulations for outdoor wireless equipment installation.
