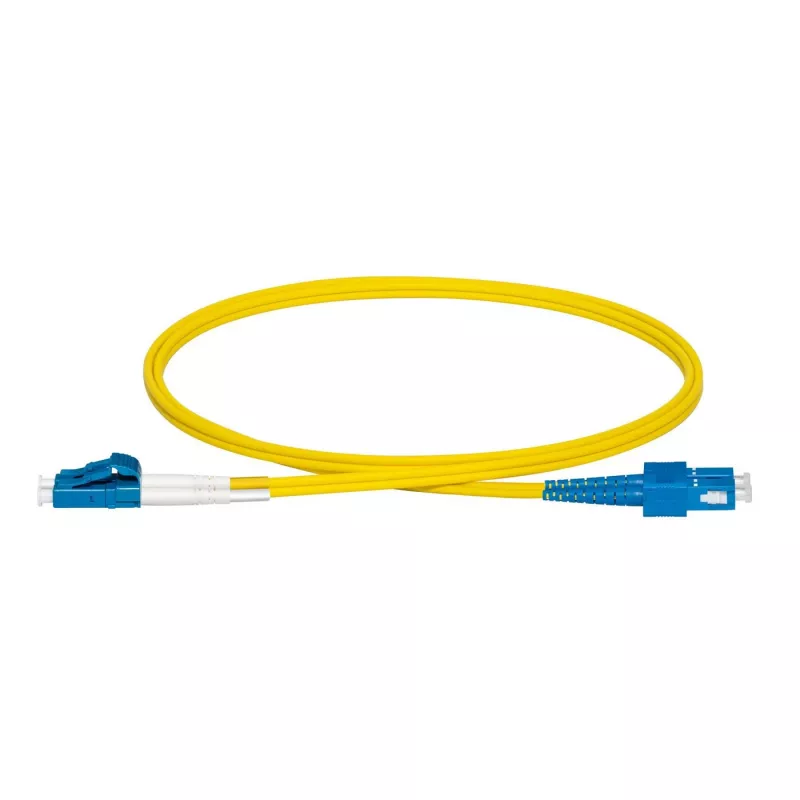

Lanview LVO231491 InfiniBand/kuitu-kaapeli 1 m 2x LC 2x SC keltainen

The Lanview LVO231491 is a 1 m single mode fibre optic cable with OS2 fibre, designed for reliable full-duplex data transmission in enterprise networks, telecom rooms, server farms and cloud storage networks. It features 2x LC and 2x SC connectors and a yellow LSZH jacket for easy identification and safe indoor use. The cable supports 1G/10G/40G/100G Ethernet links and can transport data up to 10 km at 1310 nm or up to 40 km at 1550 nm.

Advantages

This single mode patch cord provides low-loss OS2 performance with a 9 µm core diameter, compatible with common LC and SC ports for flexible connectivity. The LSZH outer sheath reduces smoke and toxic emissions in case of fire and the 1 m length is convenient for short interconnections in racks and patch panels. The yellow colour simplifies identification in cabling bundles.

Suitable for

• Enterprise network backbone and patching
• Telecom rooms and server cabinets
• Data centres and cloud storage interconnects
• 1G/10G/40G/100G Ethernet connections

Key specifications

• Model: Lanview LVO231491
• Fibre type: Single mode OS2
• Core diameter: 9 µm
• Length: 1 m

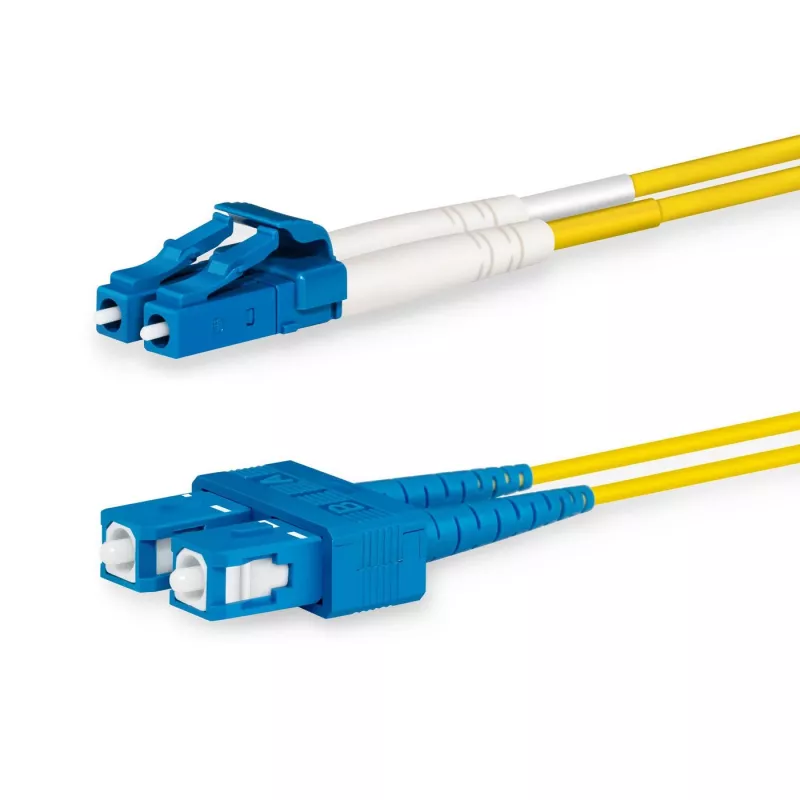

• Connectors: 2x LC to 2x SC
• Cable jacket: LSZH
• Colour: Yellow
• Weight: 0.022 kg
• Typical reach: up to 10 km @ 1310 nm; up to 40 km @ 1550 nm

How to use

Connect the appropriate LC and SC ends to matching ports on network devices or patch panels, ensuring connector endfaces are clean before mating. Route the cable through cable managers or trays to avoid sharp bends and mechanical stress; maintain the manufacturer’s minimum bend radius. Use the 1 m length for short-distance patching between adjacent rack units or within patch panels.

Recommendations

Inspect and clean fibre connectors with proper cleaning tools before each use, store the cable coiled without tight loops, and avoid pulling on the connectors. For critical links, verify optical loss with a suitable tester after installation.
