Lanview LVO231810-FLEX InfiniBand/kuitu-kaapeli 1 m LC LC/LC violetti

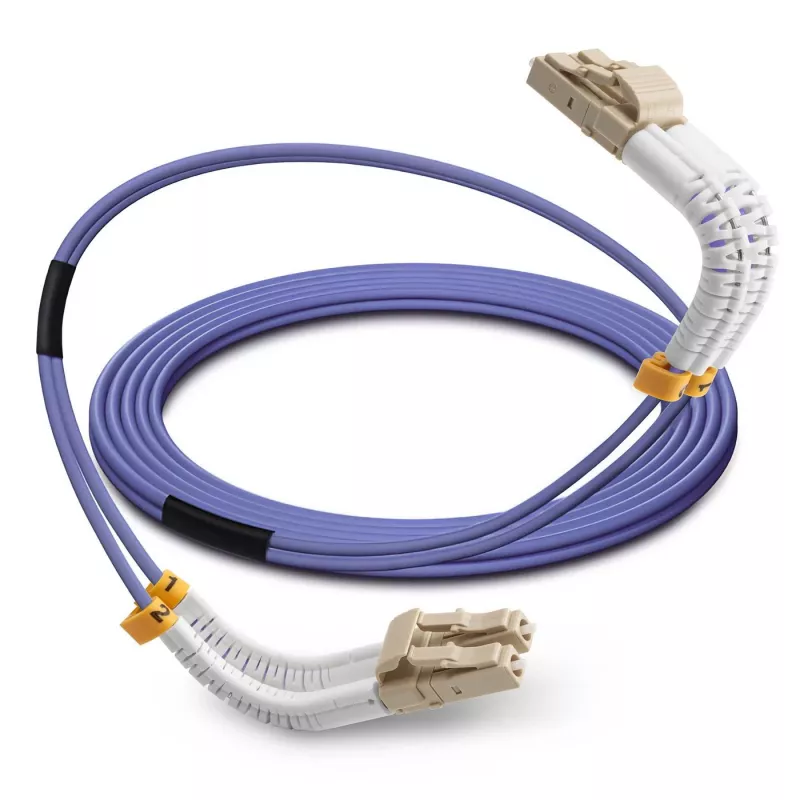

The Lanview LVO231810-FLEX is a 1 m purple fibre optic patch cable with LC connectors and OM4 multimode fibre (50 µm core). The cable is designed for full duplex connections and high-speed data transmission in structured cabling and network equipment interconnects. Its bendable boot construction enables flexible management of the connector angle while keeping optical performance intact.

Advantages

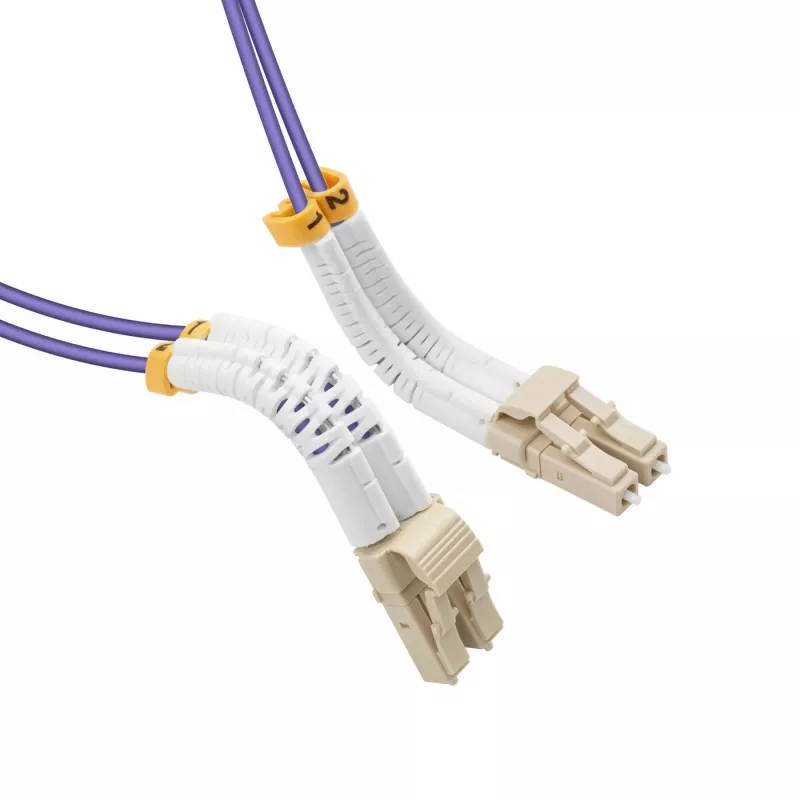

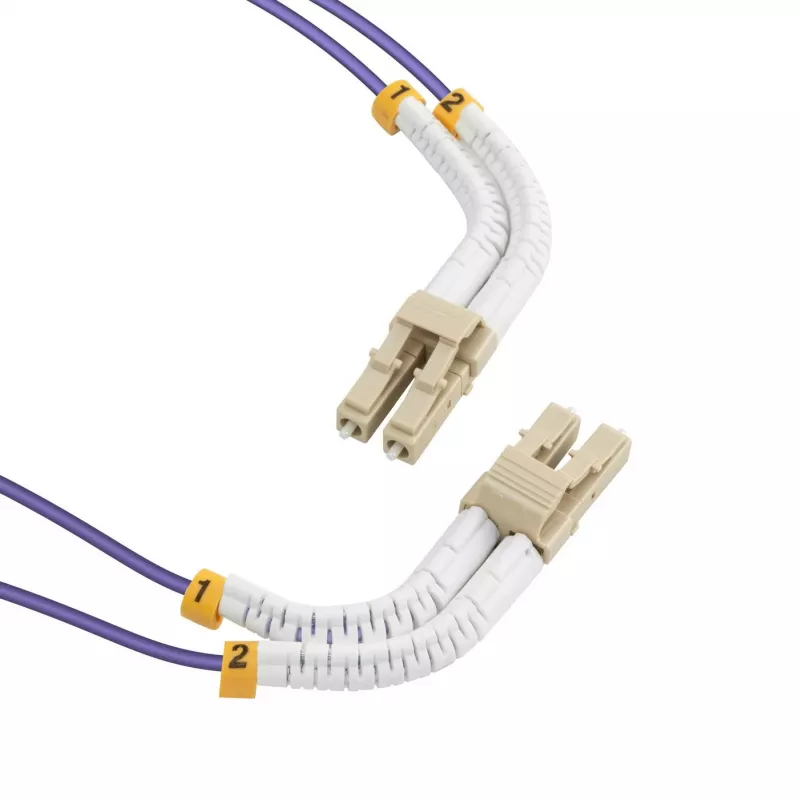

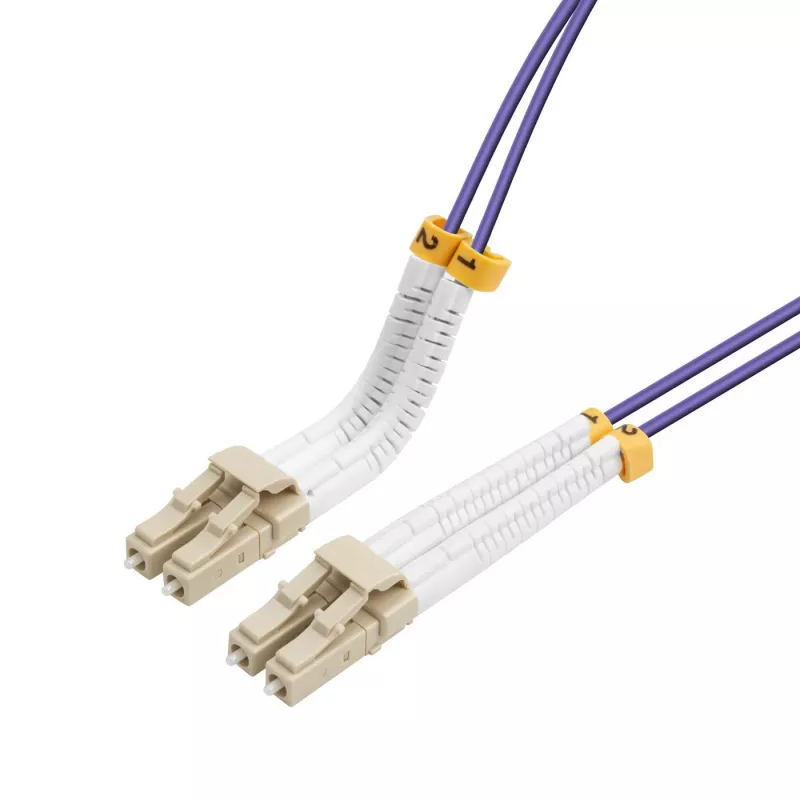

The bendable boot surrounds a single stainless-steel wire that can be adjusted by hand to set and hold any angle from straight to 90 degrees, allowing precise connector positioning in dense or confined installations. The internal wire maintains the chosen direction while the boot can be quickly repositioned or straightened for connector disconnection. The OM4 multimode fibre supports high bandwidth applications and standardized LC termination ensures wide compatibility with networking equipment.

Suitable for

• Data centre patch panels and high-density racks
• Telecommunications equipment with limited rear clearance
• Server-to-switch or switch-to-switch short runs within cabinets
• Organized patching where colour coding (purple) is used

Key specifications

• Brand: Lanview
• Model: LVO231810-FLEX
• Connector type: LC to LC
• Fibre type: OM4 multimode (50 µm core)
• Length: 1 m
• Colour: Purple
• Weight: 0.02 kg
• MPN: LVO231810-FLEX
• EAN: 5715063505977

How to use

Insert LC connectors into the corresponding ports of the networking devices, ensuring the keyed latch engages. Manually bend the boot around the embedded stainless-steel wire to set the desired connector angle, from straight to up to 90 degrees, to route the cable away from obstructions. To remove, straighten the boot and depress the LC latch to disconnect the connector. Observe standard handling procedures for fibre optic connectors to avoid contamination: keep end faces clean and protected when not in use.

Recommendations

For optimal performance, use the Lanview LVO231810-FLEX in short multimode links within racks or cabinets, keep connector end faces clean, and avoid sharp bends beyond the boot's adjustable range. Use the purple colour for consistent patching schemes to simplify identification.
