Lightwin LDP-50 LC-LC 15,0 OM3 kuitu-verkkokaapeli 15 m sininen

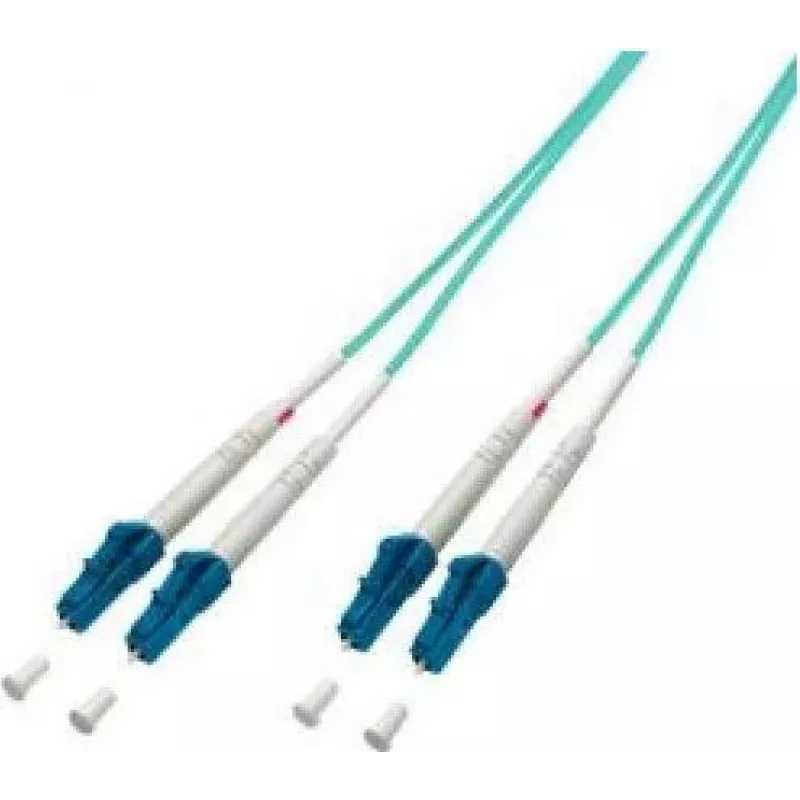

High-speed data centers and enterprise networks demand reliable, low-loss fiber connections that can handle 10G, 40G, and even 100G Ethernet. The Lightwin LDP-50 LC-LC 15.0 OM3 is a 15-meter multimode duplex patch cable engineered to deliver exactly that, with laser-optimized OM3 fiber and precision LC connectors.

Who is it for

Network engineers, data center managers, and IT professionals who need a dependable, high-bandwidth fiber link for backbone connections, server-to-switch links, or storage area networks. It suits any environment where short to medium distance multimode fiber is the standard, especially where LSZH jacketing is required for safety.

Main features

• OM3 laser-optimized multimode fiber (50/125 µm) supports 10GbE up to 300 m, 40GbE up to 100 m, and 100GbE up to 100 m.
• Duplex LC to LC connectors with ceramic ferrules ensure low insertion loss (<0.3 dB) and high return loss (>30 dB).
• Blue LSZH (Low Smoke Zero Halogen) jacket reduces toxic smoke and corrosive gases in case of fire, meeting strict building codes.
• 15-meter length provides flexibility for rack-to-rack or cross-connect runs without excess slack.
• Compliant with TIA/EIA-568-C.3, ISO/IEC 11801, and EN 50173-1 standards for reliable interoperability.
• Operating temperature range from -20°C to 70°C allows deployment in a variety of climate-controlled or unconditioned spaces.

Specifications

• Fiber type: Multimode OM3
• Core/cladding diameter: 50/125 µm
• Connector type: LC Duplex (both ends)
• Cable length: 15 m
• Jacket color: Blue
• Jacket material: LSZH
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Insertion loss: <0.3 dB typical
• Return loss: >30 dB typical
• Applications: Data center, LAN, SAN, telecom
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1
• Operating temperature: -20°C to 70°C

Tips

Always inspect and clean LC connector end faces before mating to avoid contamination and signal degradation. Use bend radius protection when routing this cable through cable managers to maintain performance. For 40G or 100G links, verify that your transceivers are OM3-compatible and within the supported distance limits.
