LogiLink aurinko Y-liitinsarja, 2 kpl, MC4-yhteensopiva, pistoke ja liitin, PVC, musta

Solar Y-branch connector set for parallel connection of photovoltaic panels. This pair of MC4-compatible Y-connectors splits one input into two outputs, enabling efficient wiring of solar arrays. Rated for 1000 V DC and 30 A, they ensure safe, low-resistance power distribution in both residential and commercial installations.

Advantages

Built with tinned copper contacts and PVC insulation, the connectors resist corrosion and UV exposure. The IP67 protection degree guards against dust and water ingress, while the wide temperature range from -40°C to +90°C supports reliable performance in harsh climates. The flame-retardant UL94-V0 housing adds an extra layer of safety.

Suitable for

• Parallel connection of solar panels in photovoltaic systems
• Use with solar cables from 2.5 mm² to 6 mm² (14 AWG to 10 AWG)
• Rooftop, ground-mounted, and off-grid solar installations
• Professional solar installers and DIY enthusiasts

Key specifications

• Connector type: MC4 compatible

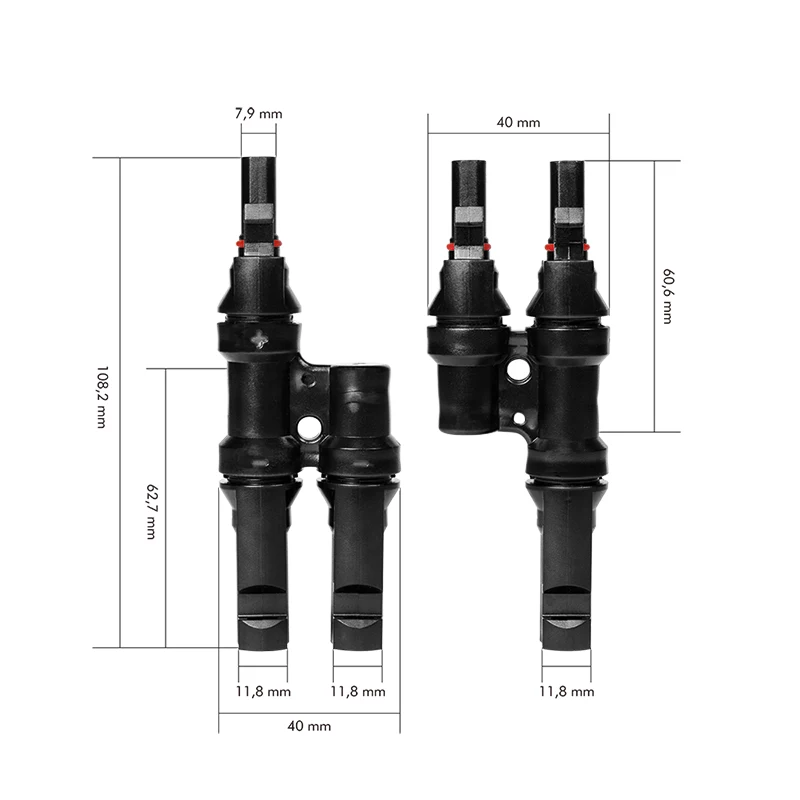

• Configuration: 1-to-2 Y-branch

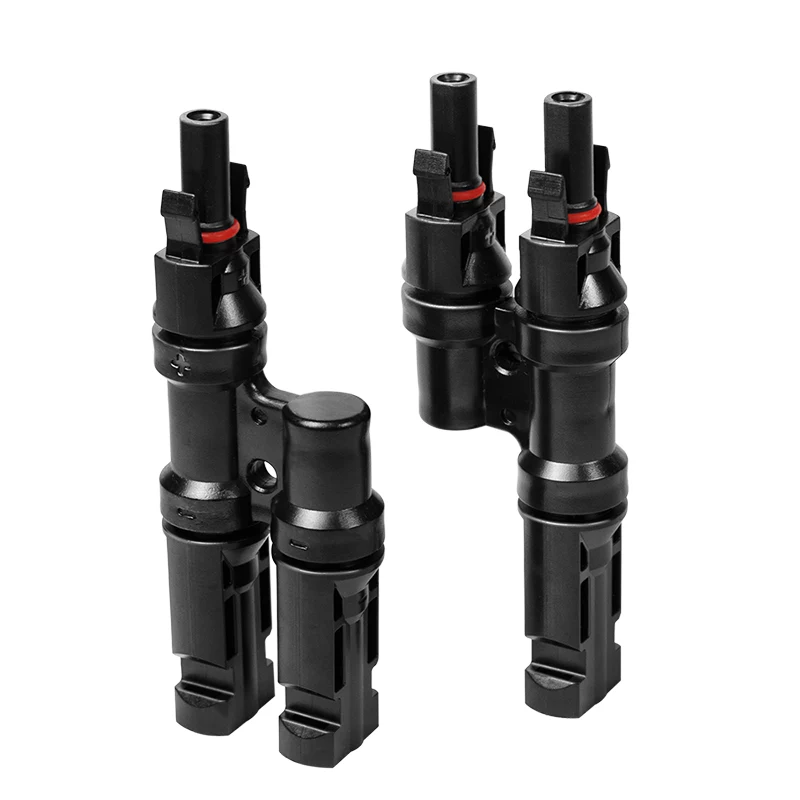

• Set includes: 1x male (1 input, 2 outputs) and 1x female (1 input, 2 outputs)
• Rated voltage: 1000 V DC (max.)
• Rated current: 30 A (max.)
• Contact material: Tinned copper
• Insulation material: PVC

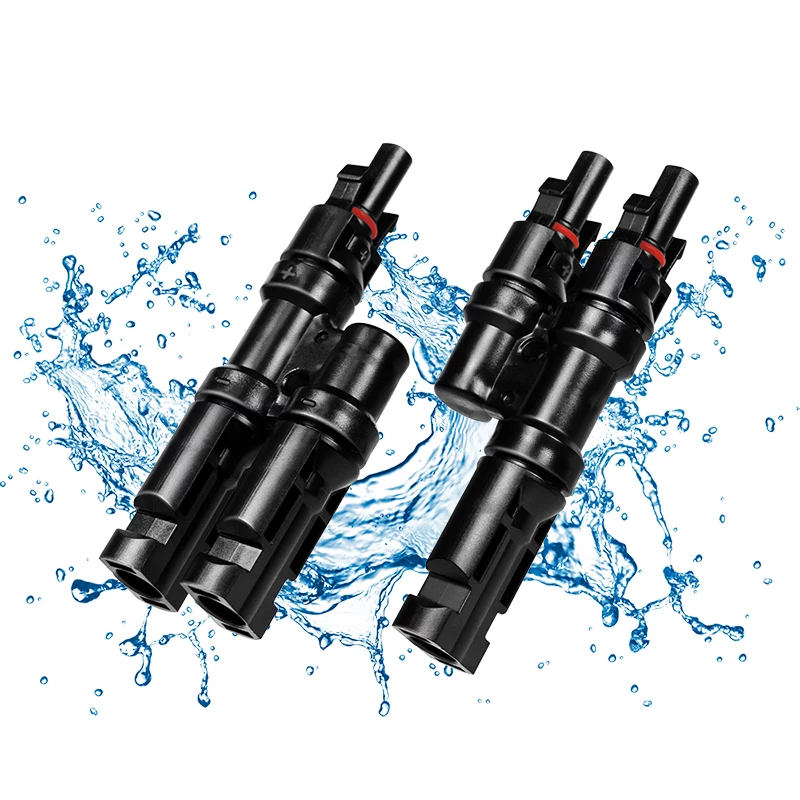

• Protection degree: IP67
• Temperature range: -40°C to +90°C
• Flame class: UL94-V0
• Contact resistance: ≤ 0.5 mΩ
• Insulation resistance: > 500 MΩ
• UV resistant: Yes
• Colour: Black

Recommendations

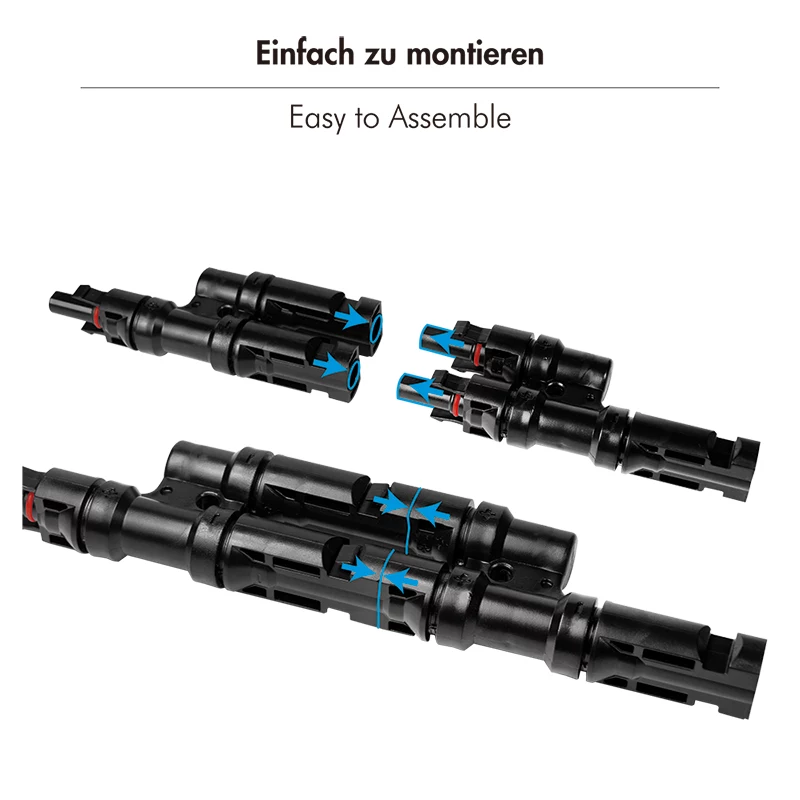

For optimal performance, ensure that the combined current of the connected panels does not exceed 30 A and that cable cross-sections are within the recommended range. Always verify polarity before connection and use appropriate tools for secure mating.
