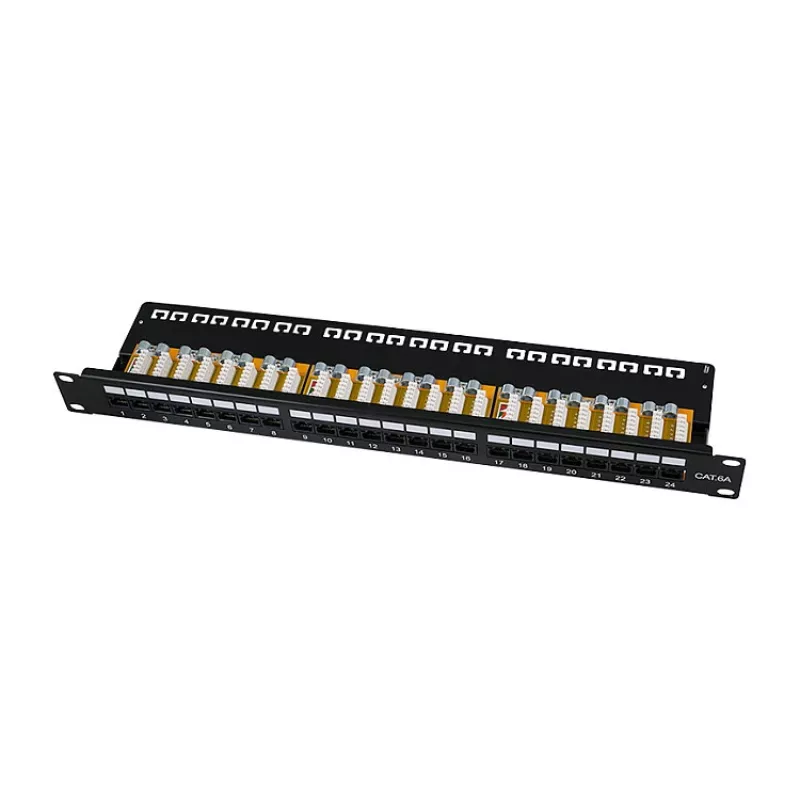

LogiLink Cat.6A patch-paneeli 24-porttia UTP, 1U, 90° IDC

For installations demanding headroom beyond Gigabit, this Cat.6A patch panel delivers 24 ports of unshielded connectivity in a single rack unit. Its 90° IDC punch-down blocks speed up termination, while the included rear cable management bar keeps dense bundles tidy. Built on an SPCC steel frame with a black RAL 9005 finish, it withstands the mechanical stress of frequent moves, adds, and changes.

Highlights

• 24-port Cat.6A (Class EA) performance for 10GBASE-T up to 100 m
• UTP design with LSA+ (Krone) IDC blocks angled at 90° for fast, reliable termination
• 1U 19-inch rackmount form factor with integrated rear cable management bar
• Gold-plated (50µ) RJ45 contacts ensure low contact resistance and long-term reliability
• Supports AWG 22–26 solid and stranded conductors, TIA/EIA 568 A/B wiring

In daily use

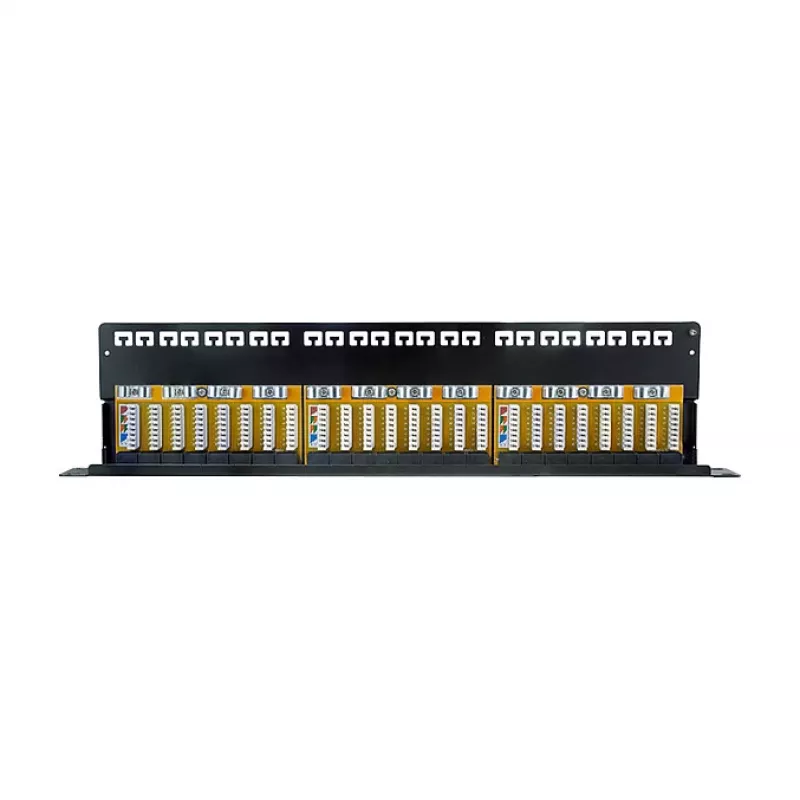

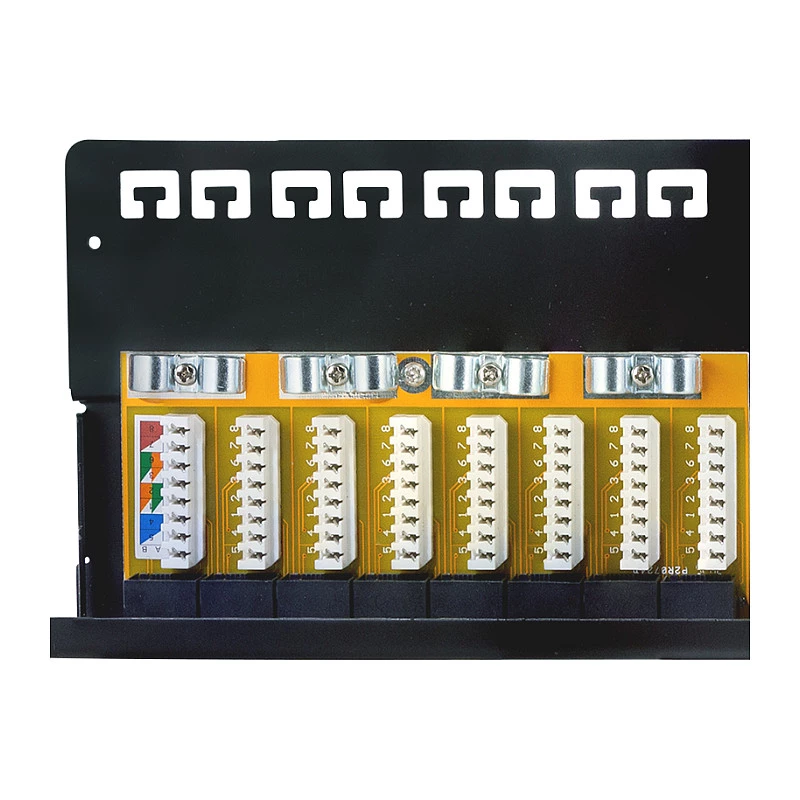

Terminating 24 ports is straightforward: strip the jacket, lay pairs into the colour-coded LSA+ slots, and punch down with a standard Krone tool. The 90° angle reduces strain on the cable and speeds up work in tight spaces. Numbered ports and labeling fields on the front simplify identification, while the rear bar keeps horizontal cable runs organised and prevents accidental disconnects. An integrated grounding wire connection ensures proper bonding in metallic racks.

Full specifications

• Category: Cat.6A (Class EA)
• Ports: 24 × RJ45 to IDC
• Shielding: UTP (Unshielded Twisted Pair)
• Rack units: 1U, 19-inch mounting
• IDC type: LSA+ (Krone compatible), 90° angle
• Wiring: TIA/EIA 568 A/B
• Contact plating: Gold, 50µ
• Housing: SPCC steel, black (RAL 9005)
• Cable compatibility: AWG 22–26 solid and stranded
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Grounding: Integrated wire connection
• Labeling: Numbered ports with labeling fields
• Cable management: Rear bar included

Final note

When your network demands Cat.6A headroom without shielded cabling complexity, this LogiLink panel offers a pragmatic, high-density solution that installs quickly and performs reliably.
