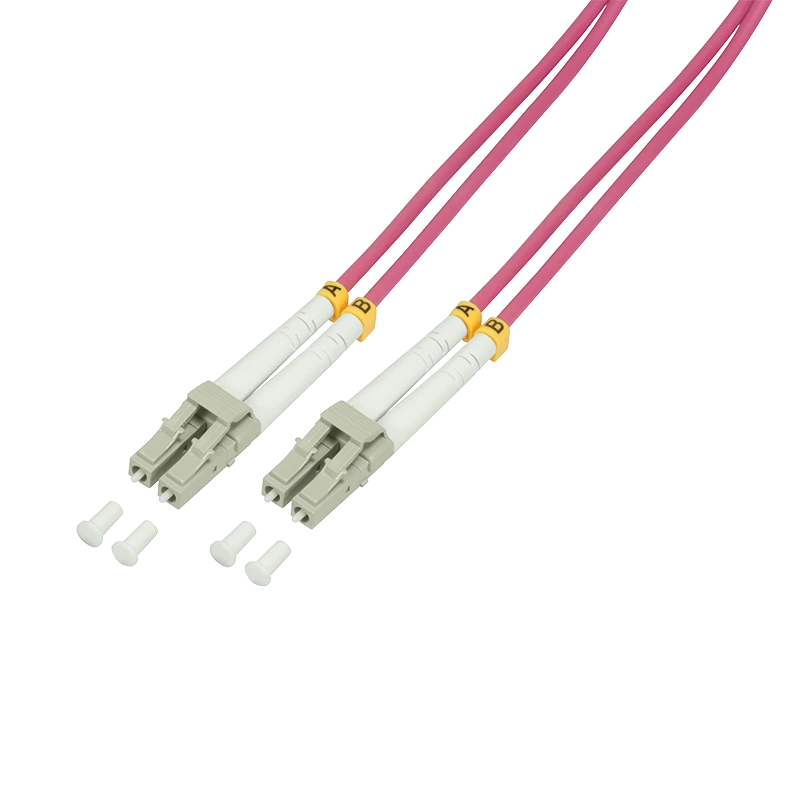

LogiLink FP4LC50 InfiniBand-kuitukaapeli 50 m 2x LC violetti

LogiLink FP4LC50 InfiniBand Fibre Optic Cable is a 50 m multimode duplex jumper with OM4 fibres (50/125 µm) and 2x LC connectors on each end. The cable has a 3.0 mm diameter LSZH jacket in violet and is designed for high-speed links up to 40 Gbit/s over short distances, meeting DIN EN 50173-1 and IEC/ISO 11801 standards. Each cable is supplied with a measurement protocol documenting its performance.

Advantages

The OM4 50/125 µm fibre supports high bandwidth and low attenuation for short-reach, high-speed applications. Duplex LC connectors provide compact, reliable connections for InfiniBand and Ethernet equipment. The LSZH jacket reduces hazardous smoke and toxic fume emission in case of fire and the 3.0 mm outer diameter balances flexibility and mechanical protection. Supplied measurement protocol verifies insertion loss and end-to-end performance.

Suitable for

• Data centre interconnects and server-to-switch links
• InfiniBand and high-speed Ethernet up to 40 Gbit/s
• Patch panels and fibre distribution frames
• Short-reach multimode optical networks (up to 125 m at 40 Gbit/s)

Key specifications

• Fibre type: I-VH 2G OM4 multimode, 50/125 µm
• Length: 50 m
• Connectors: 2x LC on both ends (duplex)
• Jacket: LSZH, violet, Ø 3.0 mm
• Application: up to 40 Gbit/s / 125 m
• Standards: DIN EN 50173-1, IEC/ISO 11801
• Quality: supplied with measurement protocol

How to use

Route the fibre cable through cable management pathways or trays, avoiding tight bends and sharp edges. Connect LC duplex connectors to matching LC ports on network devices or patch panels, ensuring proper orientation and secure latching. Keep connector endfaces clean and capped when not in use; inspect and, if needed, clean endfaces before insertion to maintain optimal signal quality. Ensure strain relief at both ends to prevent mechanical stress on the fibre.

Recommendations

Use this OM4 duplex cable for short-reach, high-bandwidth links in data centres and networking racks. Adhere to bend radius and handling guidelines, verify link performance against the supplied measurement protocol after installation, and store with connector caps on to protect endfaces.
