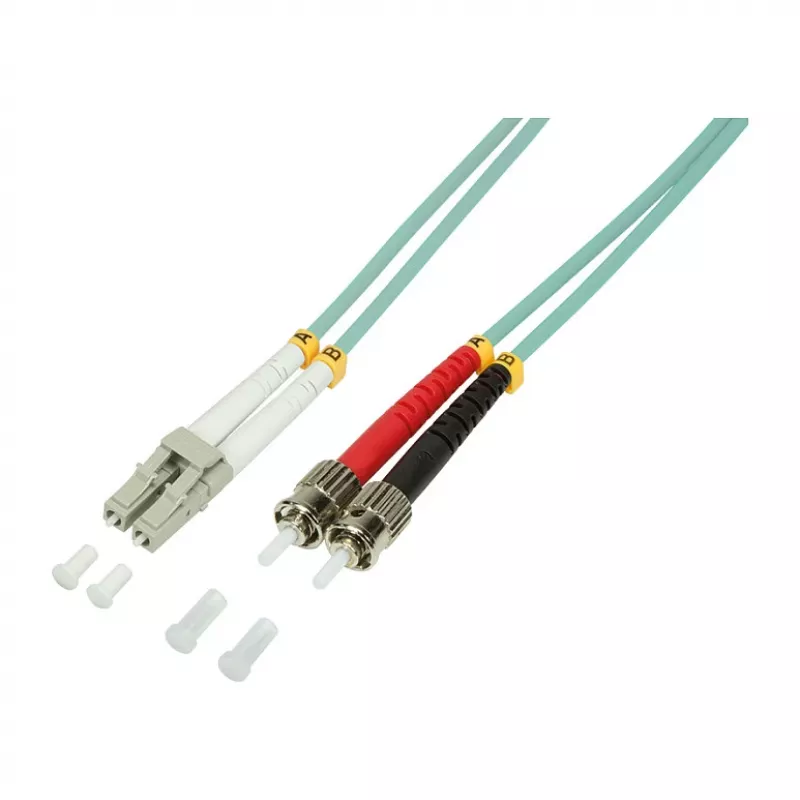

LogiLink OM3 LC/ST duplex multimode kuitu-patchkaapeli, 2 m, LSZH, aqua

In a busy data center, a network technician needs to connect a high-speed switch to a patch panel with reliable, low-loss fiber optic cabling. The LogiLink OM3 LC/ST Duplex Patch Cable provides a robust 2-meter link that supports 10 Gigabit Ethernet over multimode fiber, ensuring stable performance for demanding applications.

Key specifications

• Cable type: Fiber optic patch cable, multimode OM3
• Connectors: LC duplex to ST duplex
• Length: 2.0 m
• Core/cladding diameter: 50/125 µm
• Jacket material: LSZH (Low Smoke Zero Halogen), aqua
• Insertion loss: < 0.3 dB typical
• Return loss: > 30 dB typical
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Supports 10 Gigabit Ethernet up to 300 m
• Standards: IEC 60793, TIA/EIA-568-C.3, ISO/IEC 11801

Why choose it

This cable is built with high-quality OM3 fiber and precision connectors to deliver minimal signal loss and high bandwidth. The LSZH jacket ensures low smoke and zero halogen emissions in case of fire, making it safe for enclosed spaces. The aqua color identifies it as OM3, simplifying cable management in dense installations.

Ideal use cases

• Data center interconnects between switches, servers, and storage
• Enterprise LAN backbone links requiring 10G speeds
• Storage area networks (SAN) and high-performance computing clusters
• Telecommunications rooms and campus network connections

Good to know

The duplex design with LC and ST connectors allows direct connection between equipment with different interface types, eliminating the need for adapters. The cable is tested to meet industry standards for optical performance and mechanical durability. Operating temperature range: -20°C to +70°C.
