MEAN WELL 50W 5V 10A suljettu hakkurivirtalähde 51405122

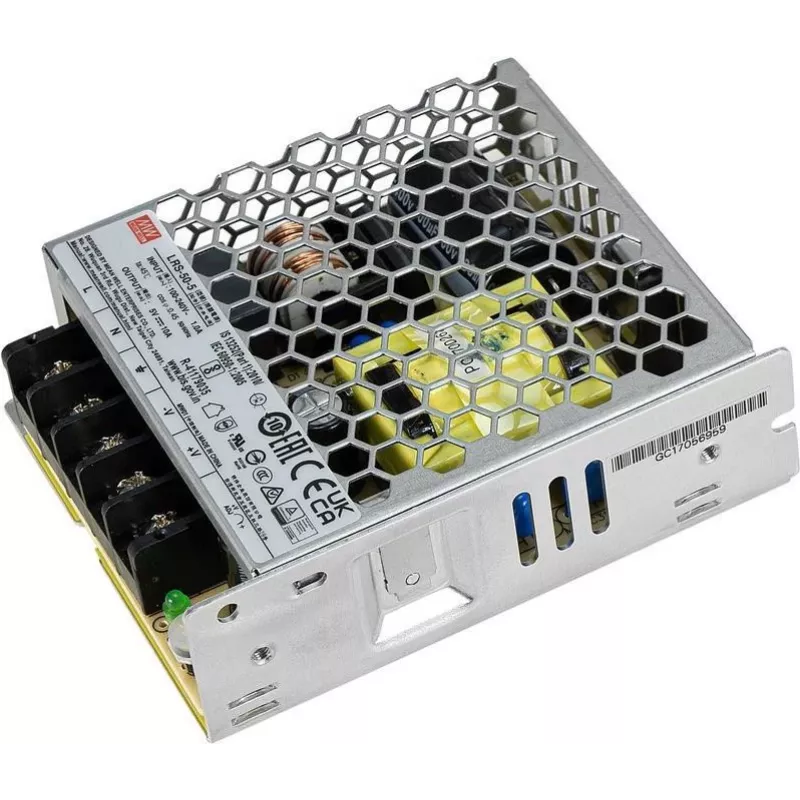

Industrial-grade AC-DC power supply delivering a stable 5V DC output at up to 10A, ideal for powering sensitive electronics, LED lighting, and automation systems. Its enclosed metal chassis and screw terminal connections ensure reliable operation in demanding environments.

Advantages

This switching power supply offers high efficiency up to 79%, reducing energy consumption and heat generation. Comprehensive protections including overload, overvoltage, and short circuit safeguard both the supply and connected equipment. The wide input voltage range (85-264 VAC) allows worldwide use, while the compact design saves space in control cabinets.

Suitable for

• Industrial control systems and PLCs
• LED lighting and signage
• Test and measurement equipment
• Telecommunications devices
• General electronics requiring 5V DC power

Key specifications

• Output: 5V DC, 10A, 50W
• Input: 85-264 VAC / 120-370 VDC
• Efficiency: 79%
• Ripple & noise: 80mVp-p
• Protections: overload, overvoltage, short circuit
• Operating temperature: -25 to +70°C
• Cooling: free air convection
• Safety: UL60950-1, TUV EN60950-1, CCC GB4943
• EMC: EN55022 Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11
• MTBF: >700,000 hrs

Recommendations

For reliable 5V power in industrial or commercial applications, this MEAN WELL supply offers proven performance and robust protection. Ensure proper ventilation and use appropriate wire gauges for the 10A output.
